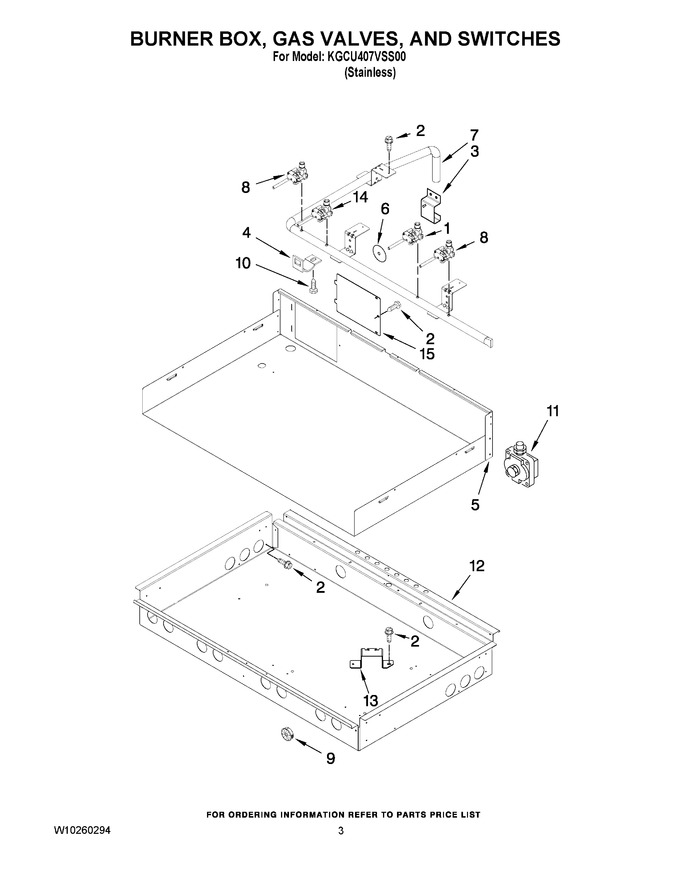

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10385583 | Valve, Simmer (Replaces: W10284547) |
|
Immediately | $ 332.10 | ||||
| 2 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 3 | 8285790 | Bracket, Mounting Orifice |
|
$ 85.85 | |||||
| 4 | W10189107 | Bracket, Valve |
|
- | |||||
| 5 | W10189157 | Cover, Burner Box |
|
- | |||||
| 6 | W10189177 | Seal, Switch Cover |
|
$ 10.00 | |||||
| 7 | W10115891 | Manifold |
|
- | |||||
| 8 | W10250407 | Valve, Single (lr & Rf) |
|
- | |||||
| 9 | W10189097 | Bushing, Burner Box |
|
$ 8.00 | |||||
| 10 | W10189140 | Screw, Valve Mtg |
|
$ 6.82 | |||||
| 11 | WP9759091 | Regulator, Pressure (Replaces: 9759091) |
|
Immediately | $ 340.43 | ||||
| 12 | W10276535 | Burner Box (Replaces: W10250426) |
|
- | |||||
| 13 | W10280796 | Bracket, Burner ((1)) |
|
- | |||||
| 13 | W10115929 | Bracket, Burner ((3)) |
|
- | |||||
| 14 | WPW10371235 | Valve, Gas (lf) (Replaces: W10250410) |
|
Immediately | $ 268.41 | ||||
| 15 | W10115843 | Cover, Ignition |
|
- | |||||
| NI | W10115908 | Tubing, Gas (lr) |
|
- | |||||
| NI | W10115910 | Tubing, Gas (rf & Lf) |
|
$ 176.20 | |||||
| NI | W10115911 | Tubing, Gas (lf - Simmer) |
|
$ 188.34 | |||||
| NI | W10280797 | Tubing, Gas (rr) |
|
- |
