01 - Cabinet Parts

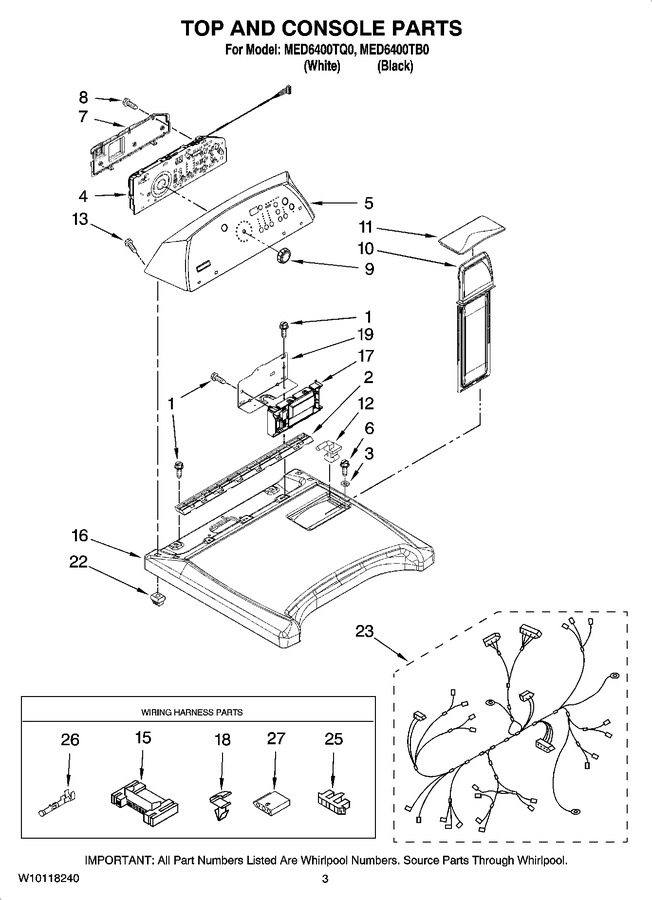

02 - Top And Console Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP33001882 | Screw (Replaces: 337686) |
|
$ 83.71 | |||||
| 2 | 8558863 | Bracket, Console |
|
$ 33.78 | |||||
| 3 | 237446 | Washer (top/chute) |
|
- | |||||
| 4 | W10051096 | User Interface |
|
$ 252.17 | |||||
| 5 | W10120085 | Panel, Console (black) |
|
- | |||||
| 5 | W10120084 | Panel, Console (white) |
|
- | |||||
| 6 | WP3196557 | Screw, 8-18 X 5/8 (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 7 | 8564265 | Cover, Rear |
|
$ 142.60 | |||||
| 8 | WP4449745 | Screw, 6-19 X 3/64 (Replaces: W10003770) |
|
$ 7.98 | |||||
| 9 | W10110196 | Knob, Assembly |
|
$ 46.56 | |||||
| 10 | WP8572270 | Assembly, Lint Screen (Replaces: 8572270) |
|
Immediately | $ 104.35 | ||||
| 11 | W10044360 | Cover, Lint Screen (black) |
|
- | |||||
| 11 | W10044320 | Cover, Lint Screen (white) |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: W10044480) |
|
$ 8.11 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: W10044470) |
|
$ 8.11 | |||||
| 13 | W10001580 | Screw |
|
- | |||||
| 15 | 3395683 | Connector, Motor |
|
Immediately | $ 54.45 | ||||
| 16 | 8565028 | Top (black) |
|
- | |||||
| 16 | 8565025 | Top (white) |
|
- | |||||
| 17 | W10111609 | Control, Electronic |
|
- | |||||
| 18 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 19 | 8563853 | Bracket, Machine Controller |
|
- | |||||
| 22 | 8558853 | Grommet |
|
- | |||||
| 23 | 8299914 | Harness Wiring |
|
- | |||||
| 25 | 3936144 | Connector |
|
$ 21.22 | |||||
| 26 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 | |||||
| 27 | 3397269 | Connector-timer |
|
$ 25.55 |
