SELECT A DIAGRAM

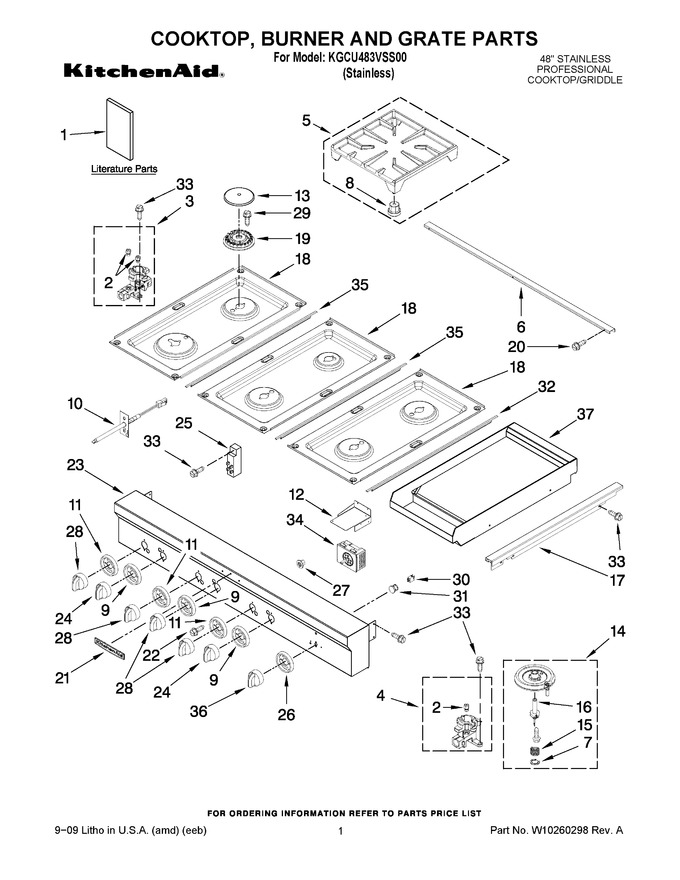

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10284347		Use & Care Guide		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10271686		Installation Instructions		Appelez-nous	-
1	W10221132		Tech Sheet		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
2	W10160185		Orifice (lf & Rf - Low)				$ 73.54
2	W10160179		Orifice (lf & Rf - High)				$ 75.77
2	W10160232		Orifice (lr,cf,rr)				$ 45.77
2	W10791075		Orifice (cr)   (Replaces: W10282663)				$ 103.68
3	WPW10160187		Orifice Holder (dual - Lf, Rf)   (Replaces: W10160187)				$ 81.57
4	W10160234		Orifice Holder (lr,cf,rr)				$ 51.39
4	W10282659		Orifice Holder (cr)				$ 40.50
5	WPW10115928		Grate, Burner   (Replaces: W10115928)				$ 201.41
6	W10269216		Trim, Island		Appelez-nous	-
7	W10160825		Clip, Electrode				$ 52.85
8	W10185266		Rubber, Foot   (Replaces: 8286695)			Immediately	$ 15.47
9	W10261510		Bezel, Front				$ 55.11
10	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
11	W10261512		Bezel, Rear		Appelez-nous	-
12	W10367052		Bracket, Spark Module   (Replaces: W10137323)		Appelez-nous	-
13	WPW10115952		Cap, Burner (lf & Rf)   (Replaces: W10115952)				$ 119.01
13	WP8286816		Cap, Burner (cr)   (Replaces: 8286816)				$ 110.74
13	WPW10160229		Cap, Burner (lr, Cf, Rr)   (Replaces: W10160229)			Immediately	$ 114.80
14	W10189082		Base, Burner (lr, Cf, Rr)		Appelez-nous	-
14	WPW10320937		Base, Burner (lf & Rf)   (Replaces: W10250405)				$ 157.22
15	W10160826		Spring, Electrode		Appelez-nous	-
16	W10250406		Electrode (lf & Rf) (dual)				$ 30.27
16	WPW10160235		Electrode (lr, Cf, Rr)   (Replaces: W10160235)				$ 42.08
16	WPW10145991		Electrode (cr)   (Replaces: W10145991)			Immediately	$ 84.47
17	W10226013		Trim, Side (left)		Appelez-nous	-
17	W10226012		Trim, Side (right)		Appelez-nous	-
18	W10189104		Cooktop (left)				$ 146.58
18	W10272902		Cooktop (center)		Appelez-nous	-
18	W10189098		Cooktop (right)		Appelez-nous	-
19	WPW10282515		Burner Head (cr)   (Replaces: W10282515)			Immediately	$ 149.87
19	W10250458		Burner Head (lr, Cf, Rr)		Appelez-nous	-
19	WPW10250459		Burner Head (lf & Rf)   (Replaces: W10250459)			Immediately	$ 154.23
20	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
21	W10201187		Nameplate				$ 91.98
22	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
23	W10131243		Assembly, Console		Appelez-nous	-
24	W11244176		Knob, Control (dual - Lf & Rf)   (Replaces: W10250389)				$ 78.37
25	WP71002749		Module, Spark   (Replaces: 7431P039-60)				$ 351.02
26	W10261515		Bezel, Griddle		Appelez-nous	-
27	7103P166-60		Nut, Hex				$ 18.56
28	W11177673		Knob, Control (4)   (Replaces: W10250391)				$ 90.55
29	W11404293		Screw   (Replaces: W10078270)			Immediately	$ 14.74
30	W10116114		Light, Indicator Housing			Immediately	$ 93.57
31	W10116115		Lens, Indicator Light				$ 7.86
32	W10271525		Trim, L-strip		Appelez-nous	-
33	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
34	WPW10116113		Control, Griddle   (Replaces: W10116113)				$ 351.97
35	W10271524		Trim, T-strip				$ 212.34
36	W10250390		Knob, Griddle				$ 36.98
37	W10625221		Module, Griddle   (Replaces: W10276498)				$ 1,457.32

    View Diagram in Separate Window       Print Part List
