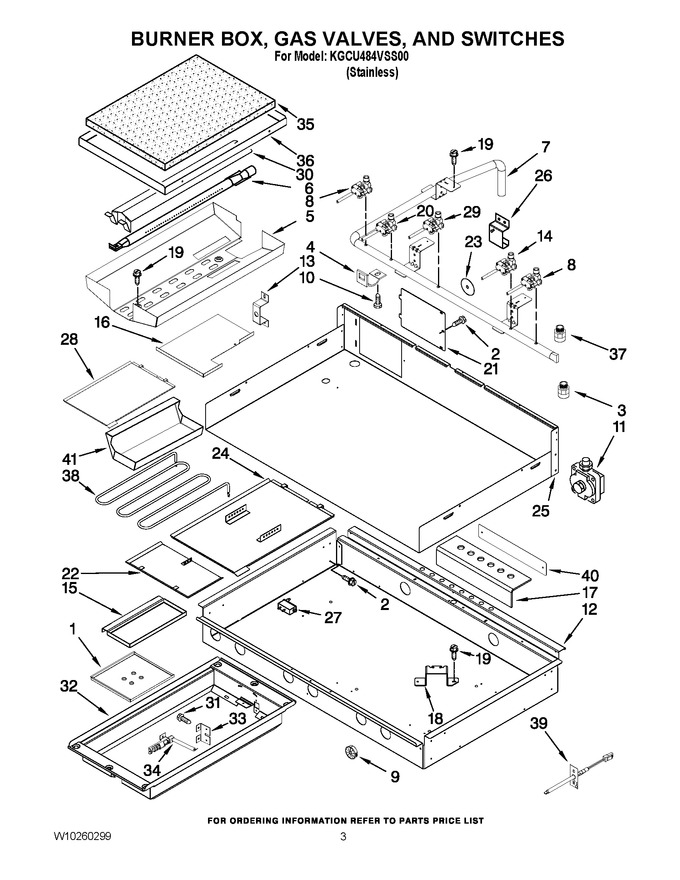

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10158808		Tray, Grill Drip		Appelez-nous	-
2	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
3	4453115		Adapter (female)				$ 126.70
4	W10189107		Bracket, Valve		Appelez-nous	-
5	W10269564		Deflector, Grill				$ 173.90
6	W10223569		Burner, Grill				$ 258.87
7	W10115897		Manifold		Appelez-nous	-
8	W10250407		Valve, Single (lr & Rf)		Appelez-nous	-
9	W10189097		Bushing, Burner Box				$ 8.00
10	W10189140		Screw, Valve Mtg				$ 6.82
11	WP9759091		Regulator, Pressure   (Replaces: 9759091)			Immediately	$ 340.43
12	W10250425		Burner Box		Appelez-nous	-
13	W10158809		Bracket, Grill Orifice Mounting		Appelez-nous	-
14	WPW10385583		Valve, Single (rr)   (Replaces: W10250408)			Immediately	$ 332.10
15	W10242987		Drip Tray		Appelez-nous	-
16	W10244497		Drip Tray Holder		Appelez-nous	-
17	W10271587		Drip Tray Router		Appelez-nous	-
18	W10115929		Bracket, Burner		Appelez-nous	-
19	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 7.55
20	WPW10371235		Valve, Gas (lf)   (Replaces: W10250410)			Immediately	$ 268.41
21	W10115843		Cover, Ignition		Appelez-nous	-
22	W10250468		Deflector, Grease (front)   (Replaces: W10242986)		Appelez-nous	-
23	W10189177		Seal, Switch Cover				$ 10.00
24	W10271586		Deflector, Grease (rear)		Appelez-nous	-
25	W10189155		Cover, Burner Box		Appelez-nous	-
26	8285790		Bracket, Mounting Orifice				$ 85.85
27	W11601369		Reignitor, Gas   (Replaces: W10116108)			Immediately	$ 67.35
28	W10271588		Drip Tray Router 1		Appelez-nous	-
29	W10305285		Valve, Gas Grill   (Replaces: W10250409)				$ 364.35
30	W10223567		Flame Spreader		Appelez-nous	-
31	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
32	WPW10267890		Module, Grill   (Replaces: W10267890)				$ 471.83
33	W10224666		Bracket, Grill Ignitor		Appelez-nous	-
34	W10268770		Ignitor, Grill				$ 161.69
35	W11684995		Insulation, Griddle   (Replaces: W10145621)		Appelez-nous	-
36	W10246074		Tray, Insulation Griddle		Appelez-nous	-
37	W10145620		Tray, Element Griddle		Appelez-nous	-
38	W10193014		Element, Griddle				$ 323.46
39	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
40	W10250433		Cover, Plate		Appelez-nous	-
41	W10276497		Drip Tray, Griddle   (Replaces: W10212347)				$ 404.03
NI	W10158807		Tubing, Gas Center Grill				$ 94.65
NI	W10115910		Tubing, Gas (lf & Rf)				$ 176.20
NI	W10115908		Tubing, Gas Lr,rr		Appelez-nous	-
NI	W10115911		Tubing, Gas (lf - Simmer)				$ 188.34
