SELECT A DIAGRAM
01 - Top And Console Parts
02 - Cabinet Parts

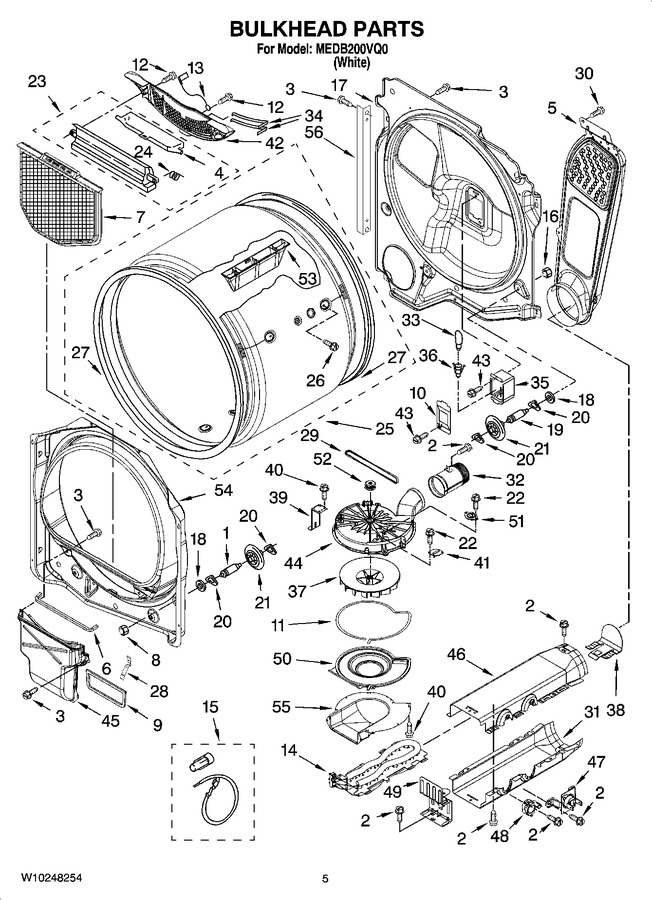

03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 8575324) |
|
Immediately | $ 62.21 | ||||
| 2 | WP90767 | Screw, 8/18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 3 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
$ 8.25 | |||||
| 4 | W11222846 | Door, Lint Screen (Replaces: 3394984) |
|
Immediately | $ 213.91 | ||||
| 5 | 8544730 | Air Duct Assembly |
|
$ 231.82 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 8.37 | ||||
| 7 | W10120998 | Lint Screen (Replaces: W10178353) |
|
$ 67.16 | |||||
| 8 | W11812294 | Nut,3/8 X 16 (r.h.) (Replaces: 3934666) |
|
$ 12.77 | |||||
| 9 | 8544721 | Seal, Lint Duct |
|
$ 5.65 | |||||
| 10 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 32.64 | |||||
| 11 | WP8573068 | Seal, Blower Cover (Replaces: 8573068) |
|
$ 92.58 | |||||
| 12 | WP3387230 | Screw, 10-16 X 13/16 (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 13 | 3392258 | Wire |
|
- | |||||
| 14 | WP8544771 | Heater Element (Replaces: 8544771) |
|
Immediately | $ 119.29 | ||||
| 15 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 16 | WPW10080190 | Nut, 3/8-16 (l.h.) (Replaces: W10001120) |
|
Immediately | $ 10.01 | ||||
| 17 | 8557236 | Bulkhead, Rear |
|
- | |||||
| 18 | W11236646 | Washer-support (Replaces: 3387459) |
|
Immediately | $ 14.73 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 8575325) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Ring Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 28.50 | ||||
| 22 | 3350424 | Screw |
|
$ 12.72 | |||||
| 23 | W11129408 | Outlet Housing Assembly (Replaces: 3394985) |
|
Immediately | $ 53.28 | ||||
| 24 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 93.47 | |||||
| 25 | W10549615 | Complete Drum Assembly (Replaces: 8557270) |
|
$ 444.51 | |||||
| 26 | W10853898 | Screw, 8-16 X 1/2 (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 27 | 280140 | Seal, Drum (Replaces: W10116344) |
|
Immediately | $ 73.88 | ||||
| 28 | 8573070 | Clip, Lint Duct |
|
$ 12.41 | |||||
| 29 | WP8544742 | Belt, Blower (Replaces: 8544742) |
|
Immediately | $ 55.00 | ||||
| 30 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 31 | 8544770 | Housing, Tab Heater Box |
|
$ 75.92 | |||||
| 32 | 8544760 | Exhaust Pipe |
|
- | |||||
| 33 | WP22002263 | Bulb, Light (Replaces: 3406124) |
|
Immediately | $ 14.85 | ||||
| 34 | WP3387223 | Electrode (sensor) (Replaces: 3387223) |
|
Immediately | $ 6.17 | ||||
| 35 | 3977373 | Bracket, Drum Light |
|
$ 111.08 | |||||
| 36 | W11222979 | Socket Assembly (Replaces: W10168632) |
|
Immediately | $ 118.79 | ||||
| 37 | WP8544737 | Wheel, Blower (Replaces: 8544737) |
|
Immediately | $ 154.84 | ||||
| 38 | 8544776 | Flange, Heater Box |
|
$ 19.01 | |||||
| 39 | 8544741 | Bracket, Housing Blower (2) |
|
$ 38.71 | |||||
| 40 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: 97787) |
|
Immediately | $ 8.80 | ||||
| 41 | WP3390719 | Thermal-fuse (Replaces: 3390719) |
|
Immediately | $ 31.57 | ||||
| 42 | W11117302 | Grille, Outlet (Replaces: 8544723) |
|
Immediately | $ 158.67 | ||||
| 43 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 44 | 8544735 | Housing, Blower |
|
- | |||||
| 45 | 8544786 | Lint Duct Assembly |
|
$ 91.17 | |||||
| 46 | WP8544769 | Housing, Slot Heater Box (Replaces: 8544769) |
|
$ 173.90 | |||||
| 47 | 279973 | Thermal Cut-off (includes Illus. 48) (Replaces: 8318314) |
|
Immediately | $ 75.60 | ||||
| 48 | WP8557403 | Thermister-hc Stat (Replaces: 8557403) |
|
Immediately | $ 79.75 | ||||
| 49 | 8544729 | Bracket, Heater Box |
|
- | |||||
| 50 | 8544719 | Blower, Cover (includes No.11) |
|
$ 76.29 | |||||
| 51 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 52 | WP8544739 | Pulley, Blower (Replaces: 8544739) |
|
$ 133.27 | |||||
| 53 | 8565688 | Baffle, Drum (3) |
|
$ 166.20 | |||||
| 54 | WP8557244 | Bulkhead, Front (Replaces: 8557244) |
|
$ 333.57 | |||||
| 55 | 8544718 | Duct, Inlet Blower |
|
$ 72.39 | |||||
| 56 | 8558163 | Channel, Rear Bulkhead (2) |
|
- | |||||
| NI | 72017 | Paint, Touch-up (1/2oz.) White |
|
Immediately | $ 12.30 | ||||
| NI | 4392067 | Kit, Dryer Repair (Replaces: 80047) |
|
Immediately | $ 62.25 | ||||
| NI | W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
$ 12.34 | |||||
| NI | 350930 | Paint, Pressurized Spray (12 Oz.) ( White) |
|
Immediately | $ 40.12 | ||||
| NI | 350938 | Paint, Pressurized Spray (12 Oz.) (primer, Gray) |
|
- | |||||
| NI | 799344 | Paint, Bulk (1 Qt.) (white (uncut)) |
|
$ 237.46 |
