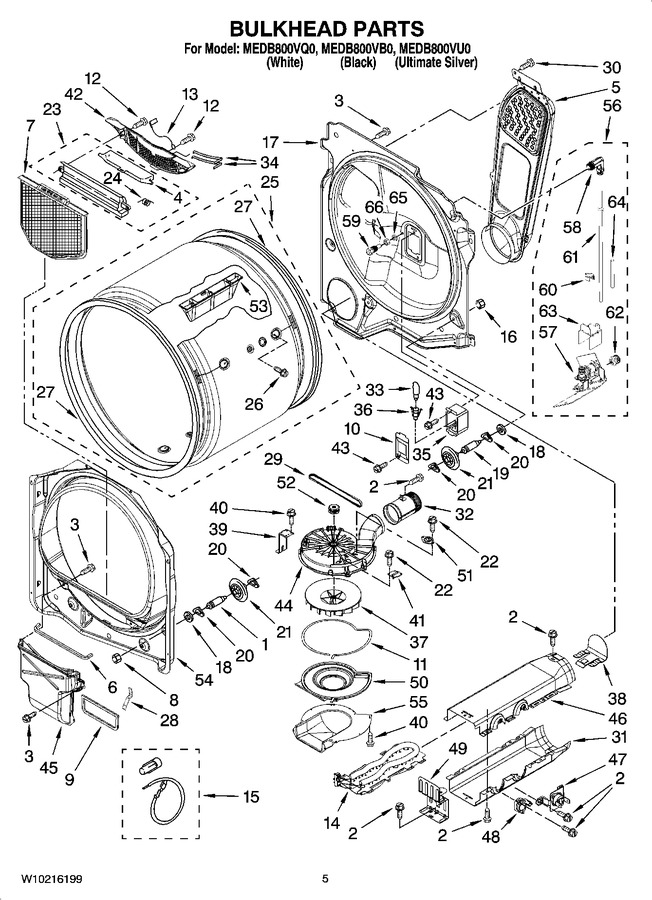

03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10359271		Shaft, R.h. Thread   (Replaces: 8575324)			Immediately	$ 62.21
2	WP90767		Screw, 8/18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
3	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3390631)				$ 7.82
4	W11222846		Door, Lint Screen   (Replaces: 3394984)			Immediately	$ 203.72
5	8544730		Air Duct Assembly				$ 231.82
6	WP697813		Seal, Outlet Housing   (Replaces: 697813)			Immediately	$ 7.97
7	W10120998		Lint Screen   (Replaces: W10178353)				$ 67.16
8	W11812294		Nut,3/8 X 16 (r.h.)   (Replaces: 3934666)				$ 12.16
9	8544721		Seal, Lint Duct				$ 5.65
10	W11226088		Lens, Drum Light   (Replaces: 3402841)				$ 31.09
11	WP8573068		Seal, Blower Cover   (Replaces: 8573068)				$ 88.17
12	WP3387230		Screw, 10-16 X 13/16   (Replaces: 3387230)			Immediately	$ 8.54
13	3392258		Wire		Appelez-nous	-
14	WP8544771		Heater Element   (Replaces: 8544771)			Immediately	$ 119.29
15	279457		Terminal Wire Kit (for Heater Element Wiring Harness Repair)			Immediately	$ 7.92
16	WPW10080190		Nut, 3/8-16 (l.h.)   (Replaces: W10001120)			Immediately	$ 8.49
17	W10139797		Bulkhead, Rear				$ 350.48
18	W11236646		Washer-support   (Replaces: 3387459)			Immediately	$ 14.03
19	WPW10359272		Shaft, L.h. Thread   (Replaces: 8575325)			Immediately	$ 58.48
20	WPW10512946		Ring Tri   (Replaces: 690997)			Immediately	$ 8.80
21	WPW10314173		Roller, Support   (Replaces: 8536973)			Immediately	$ 28.50
22	3350424		Screw				$ 12.11
23	W11129408		Outlet Housing Assembly   (Replaces: 3394985)			Immediately	$ 53.28
24	WP3394986		Spring, Lint Screen Door   (Replaces: 3394986)				$ 84.59
25	W10549614		Complete Drum Assembly   (Replaces: 8557269)				$ 476.58
26	WPW10109200		Screw, 11-16 X 3/4   (Replaces: W10109200)			Immediately	$ 8.00
27	280140		Seal, Drum   (Replaces: W10116344)			Immediately	$ 73.88
28	8573070		Clip, Lint Duct				$ 12.41
29	WP8544742		Belt, Blower   (Replaces: 8544742)			Immediately	$ 55.00
30	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
31	8544770		Housing, Tab Heater Box				$ 75.92
32	8544755		Exhaust Pipe				$ 43.67
33	WP22002263		Bulb, Light   (Replaces: 3406124)			Immediately	$ 13.66
34	WP3387223		Electrode (sensor)   (Replaces: 3387223)			Immediately	$ 6.17
35	3977373		Bracket, Drum Light				$ 105.79
36	W11222979		Socket Assembly   (Replaces: W10168632)			Immediately	$ 113.13
37	WP8544737		Wheel, Blower   (Replaces: 8544737)			Immediately	$ 147.47
38	8544776		Flange, Heater Box				$ 18.10
39	8544741		Bracket, Housing Blower (2)				$ 38.71
40	WPW10109200		Screw, 11-16 X 3/4   (Replaces: 97787)			Immediately	$ 8.00
41	WP3390719		Thermal-fuse   (Replaces: 3390719)			Immediately	$ 31.57
42	W11117302		Grille, Outlet   (Replaces: 8544723)			Immediately	$ 158.67
43	WP488729		Screw, 8-15 X 1/2   (Replaces: 487909)			Immediately	$ 7.79
44	8544735		Housing, Blower		Appelez-nous	-
45	8544786		Lint Duct Assembly				$ 91.17
46	WP8544769		Housing, Slot Heater Box   (Replaces: 8544769)				$ 165.62
47	279973		Thermal Cut-off (includes Illus. 48)   (Replaces: 8318314)			Immediately	$ 75.60
48	WP8557403		Thermister-hc Stat   (Replaces: 8557403)			Immediately	$ 79.75
49	8544729		Bracket, Heater Box		Appelez-nous	-
50	8544719		Blower, Cover (includes No.11)				$ 76.29
51	WP8577274		Thermistor   (Replaces: 8577274)			Immediately	$ 43.61
52	WP8544739		Pulley, Blower   (Replaces: 8544739)				$ 126.92
53	8563860		Baffle, Drum				$ 149.05
54	WP8557244		Bulkhead, Front   (Replaces: 8557244)				$ 317.69
55	8544718		Duct, Inlet Blower				$ 72.39
56	WPW10130506		Valve & Hose (complete)   (Replaces: W10130506)				$ 334.36
57	WPW10129424		Valve & Bracket Assembly   (Replaces: W10129424)				$ 223.77
58	W10410316		Nozzle & Hose Assembly (includes Items, 59, 64, 65 & 66 )   (Replaces: W10154992)				$ 123.72
59	W10044629		Nozzle & Screen Assembly				$ 154.07
60	W10044599		Clip, Push-to-connect   (Replaces: W10044615)				$ 14.29
61	W10133422		Hose, Nylon (not Servicable) (service With		Appelez-nous	-
62	W10859554		Coupling, Hose   (Replaces: W10044605)				$ 81.96
63	W10160575		Cover, Myst Valve		Appelez-nous	-
64	W10159631		Sleeve, Tube		Appelez-nous	-
65	W10044579		Washer-nozzle				$ 8.78
66	W10044628		Nut, 9/16 - 24 X .355				$ 92.64
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
NI	4392067		Kit, Dryer Repair   (Replaces: 80047)			Immediately	$ 62.25
NI	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 11.75
NI	49611		Kit, Side Venting				$ 129.57
NI	8544761A		Tube Extension   (Replaces: 8544761)				$ 25.34
NI	8212605		Paint, Touch-up (1/2oz.) (ultimate Silver)				$ 16.01
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 38.21
NI	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	W10044609A		Bag Assembly (contains The Following)   (Replaces: W10044609)			Immediately	$ 22.46
NI	WP76314		Hose, Inlet 6 Ft. Hose W/elbow   (Replaces: 76314)				$ 43.10
NI	W10044603		Hose, Inlet 1 Ft. Hose				$ 24.90
NI	WP16123		Washer, 1 1/16 X 5/8   (Replaces: W10194033)				$ 7.70
NI	49586		Connector, Hose Y   (Replaces: W10044604)				$ 14.74
NI	72032		Paint, Touch-up (1/2oz.) (black)			Immediately	$ 18.69
