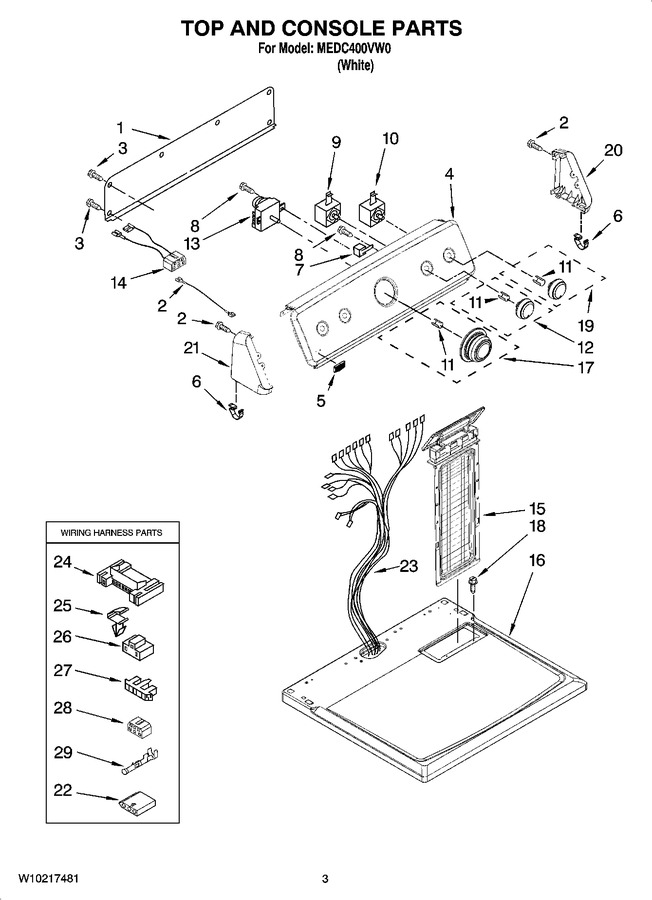

02 - Top And Console Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console				$ 135.31
2	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 14.76
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
4	W10086736		Console Assembly (includes Items 5 & 6)				$ 217.89
5	W10101390		Badge, Assembly		Appelez-nous	-
6	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 16.35
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
8	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
9	3405152		Switch, Wrinkle Gaurd				$ 131.07
10	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
11	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WPW10180218		Knob, Control (1)   (Replaces: W10180218)				$ 45.82
13	WP8299779		Timer, 60 Hz.   (Replaces: 8299779)			Immediately	$ 353.22
14	3401695		Jumper, Buzzer (on/off)		Appelez-nous	-
15	W11778253		Screen, Lint   (Replaces: 8565972)			Immediately	$ 54.63
16	W10112597		Top		Appelez-nous	-
17	WPW10180219		Knob Assembly, Timer   (Replaces: W10180219)				$ 63.34
18	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
19	WPW10180220		Knob, Push-to-start   (Replaces: W10180220)				$ 58.72
20	WPW10193821		Endcap (r.h.)   (Replaces: W10193821)				$ 74.72
21	WPW10193824		Endcap (l.h.)   (Replaces: W10193824)				$ 74.39
22	3936144		Connector				$ 21.22
23	W10205238		Harness, Wiring		Appelez-nous	-
24	3395683		Connector, Motor			Immediately	$ 54.45
25	WP3394427		Clip-harness   (Replaces: 3394427)				$ 8.18
26	3401144		Connector (pts) Relay				$ 12.81
27	3397269		Connector-timer				$ 25.55
28	3347243		Connector 6-circuit		Appelez-nous	-
29	WP94614		Terminal   (Replaces: 94614)				$ 8.05
