View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

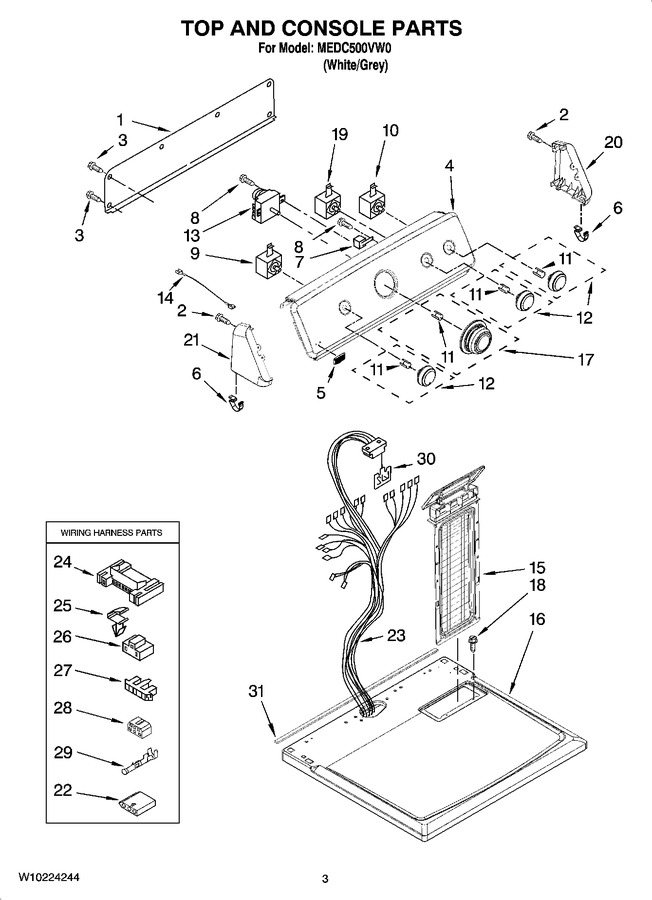

01 - Cabinet Parts
02 - Top And Console Parts
03 - Bulkhead Parts, Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10103406 | Panel, Rear Console |
|
$ 128.87 | |||||
| 2 | W11693756 | Screw, 8-18 X 1/2 (Replaces: 359625) |
|
Immediately | $ 14.06 | ||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 4 | W10086737 | Console Assembly (includes Items 5 & 6) |
|
- | |||||
| 5 | W10101390 | Badge, Assembly |
|
- | |||||
| 6 | WP8312709 | Clip-console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 127.67 | |||||
| 8 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.82 | ||||
| 9 | WP3405156 | Switch, Wrinkle Gaurd (Replaces: 3405156) |
|
$ 145.51 | |||||
| 10 | WPW10117655 | Switch, Push-to-start (Replaces: W10117655) |
|
Immediately | $ 85.60 | ||||
| 11 | WP8536939 | Clip Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 12 | WPW10180218 | Knob, Control (1) (Replaces: W10180218) |
|
$ 43.64 | |||||
| 13 | WP8566184 | Timer, 60 Hz. (Replaces: 8566184) |
|
Immediately | $ 277.09 | ||||
| 14 | W10113080 | Jumper, Buzzer (on/off) |
|
- | |||||
| 15 | W11778253 | Screen, Lint (Replaces: 8565972) |
|
Immediately | $ 52.03 | ||||
| 16 | 8579695 | Top |
|
- | |||||
| 17 | WPW10180219 | Knob Assembly, Timer (Replaces: W10180219) |
|
$ 60.32 | |||||
| 18 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 19 | WP8578354 | Switch, Temperature (Replaces: 8578354) |
|
Immediately | $ 173.03 | ||||
| 20 | WPW10193821 | Endcap (r.h.) (Replaces: W10193821) |
|
$ 71.16 | |||||
| 21 | WPW10193824 | Endcap (l.h.) (Replaces: W10193824) |
|
$ 70.85 | |||||
| 22 | 3936144 | Connector |
|
$ 20.21 | |||||
| 23 | W10110993 | Harness, Wiring |
|
- | |||||
| 24 | 3395683 | Connector, Motor |
|
Immediately | $ 51.86 | ||||
| 25 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 7.79 | |||||
| 26 | 3401144 | Connector (pts) Relay |
|
$ 12.20 | |||||
| 27 | 3397269 | Connector-timer |
|
$ 25.55 | |||||
| 28 | 3347243 | Connector 6-circuit |
|
- | |||||
| 29 | WP94614 | Terminal (Replaces: 94614) |
|
$ 7.67 | |||||
| 30 | WPW10476828 | Control, Electronic (Replaces: 8558178) |
|
Immediately | $ 314.22 | ||||
| 31 | W10112267 | Foam-seal Console Bracket |
|
$ 92.89 |
