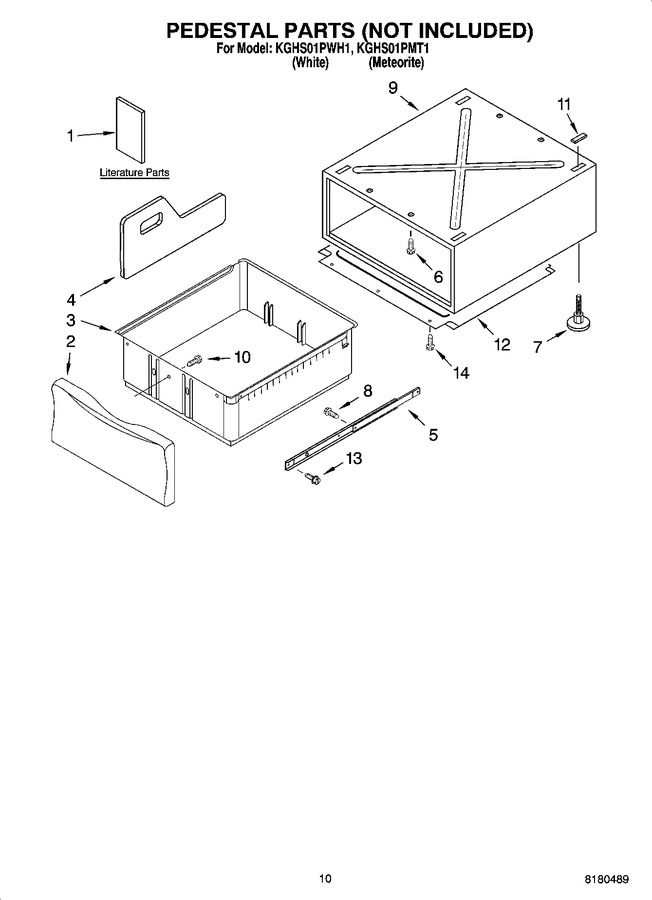

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 LIT8537342 Literature Parts (parts List) Appelez-nous -
1 LIT8537141 Literature Parts (installation Instructions) Appelez-nous -
2 8537908 Drawer Front Assembly (pewter) Appelez-nous -
2 8537870 Drawer Front Assembly (white) Appelez-nous -
2 8537871 Drawer Front Assembly (biscuit) Appelez-nous -
2 8537872 Drawer Front Assembly (graphite) Appelez-nous -
2 8537931 Drawer Front Assembly (meteorite) Appelez-nous -
3 8537883 Drawer Bin (for Model Numbers Lab2700mq, Lab2700mt, Lab2700mk And Lab2700ml) Special Order $ 113.24

3 8537934 Drawer Bin (for Lab2700pmt) Appelez-nous -
4 8537935 Divider, Drawer (set Of 2) (for Lab2700pmt) Appelez-nous -
4 8537875 Divider, Drawer (set Of 2) (for Model Numbers Lab2700mq, Lab2700mt, Lab2700mk And Lab2700ml) Appelez-nous -
5 WP8578394 Slide Assembly   (Replaces: 8537850) Special Order $ 98.16

6 WPW10346892 Screw   (Replaces: 3400111) In-Stock Immediately $ 7.19

7 WP8563585 Foot Assembly   (Replaces: 8537852) In-Stock Immediately $ 14.76

8 WP3388228 Screw, 6-20 X 3/8   (Replaces: 3400639) Special Order $ 6.95

9 N/A Cabinet (not Serviced) Appelez-nous -
10 WP1163283 Screw, 8-18 X 1/2   (Replaces: 3400842) Special Order $ 7.19

11 8537863 Pad (4) Special Order $ 34.34

12 8537853 Pan, Bottom Appelez-nous -
13 WP9740848 Screw   (Replaces: 9740848) In-Stock Immediately $ 7.86

14 WP90767 Screw   (Replaces: 90767) In-Stock Immediately $ 7.82

72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

W10202939 Meteorite   (Replaces: 4396603) Special Order $ 24.98

350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 38.21

350938 Paint, Pressurized Spray (12 Oz.) (primer,grey) Appelez-nous -
N/A Accessory Parts Appelez-nous -
8529894 Kit, Hold Down Appelez-nous -
8541503 Kit, Stack Assembly In-Stock Immediately $ 43.18

W11224254 Kit, Dryer Vent Testing   (Replaces: 8522199) Special Order $ 11.75

4392067 Kit, Dryer Repair   (Replaces: 80047) In-Stock Immediately $ 62.25
