SELECT A DIAGRAM

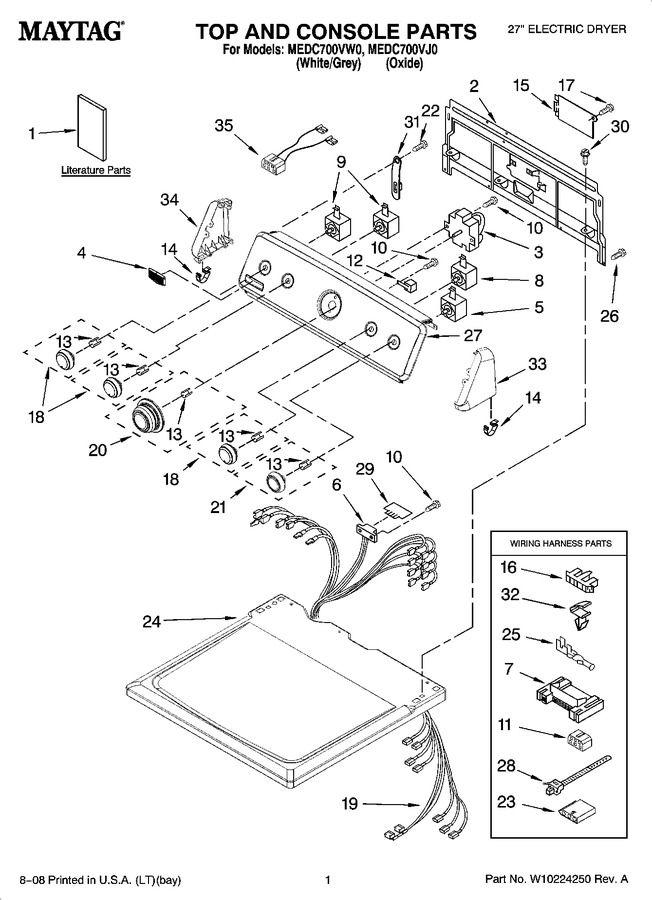

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10151000 | Wiring Diagram |
|
- | |||||
| 1 | W10088780 | Guide, Use & Care |
|
- | |||||
| 1 | W10089180 | Dryer Cycle Sheet |
|
- | |||||
| 1 | W10088973 | Installation, Instruction |
|
- | |||||
| 2 | 285909 | Panel, Rear Console (Replaces: 8317305) |
|
$ 261.42 | |||||
| 3 | WP8566184 | Timer, 60 Hz. (Replaces: 8566184) |
|
Immediately | $ 292.32 | ||||
| 4 | W10101390 | Badge Assembly (white) |
|
- | |||||
| 4 | W10103431 | Badge Assembly (oxide) |
|
$ 31.95 | |||||
| 5 | WP3398094 | Switch, Push-to-start (Replaces: 3398094) |
|
Immediately | $ 129.39 | ||||
| 6 | 3391885 | Connector, Edge |
|
$ 90.72 | |||||
| 7 | 3395683 | Connector, Motor |
|
Immediately | $ 54.45 | ||||
| 8 | WP8578352 | Switch, Rotary Temperature (Replaces: 8578352) |
|
$ 237.85 | |||||
| 9 | WP3405156 | Switch, Rotary (Replaces: 3405156) |
|
$ 152.79 | |||||
| 10 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 11 | 3347243 | Connector 6-circuit |
|
- | |||||
| 12 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 13 | WP8536939 | Clip Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 14 | WP8312709 | Clip-console (Replaces: 8312709) |
|
Immediately | $ 16.59 | ||||
| 15 | WPW10119283 | Cover, Terminal Block (Replaces: 8576583) |
|
$ 134.77 | |||||
| 16 | 3397269 | Connector-timer |
|
$ 25.55 | |||||
| 17 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 8.25 | ||||
| 18 | W10112582 | Knob, Control (3) (oxide) |
|
$ 87.97 | |||||
| 18 | WPW10180218 | Knob, Control (3) (white) (Replaces: W10180218) |
|
$ 45.82 | |||||
| 19 | W10150995 | Harness, Electric |
|
- | |||||
| 20 | W10112584 | Knob, Timer Assembly (oxide) |
|
$ 133.22 | |||||
| 20 | WPW10180219 | Knob, Timer Assembly (white) (Replaces: W10180219) |
|
$ 63.34 | |||||
| 21 | WPW10180220 | Knob Assembly Push-to-start (white) (Replaces: W10180220) |
|
$ 58.72 | |||||
| 21 | W10112586 | Knob Assembly Push-to-start (oxide) |
|
- | |||||
| 22 | WP90767 | Screw, Ground (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 23 | 3936144 | Connector |
|
$ 21.22 | |||||
| 24 | W10212718 | Top (oxide) |
|
- | |||||
| 24 | 8541355 | Top (white) |
|
- | |||||
| 25 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 | |||||
| 26 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 27 | W10086741 | Console & Bracket Assembly (includes Items. 4 & 14) (oxide) |
|
$ 211.06 | |||||
| 27 | W10086738 | Console & Bracket Assembly (includes Items. 4 & 14) (white) |
|
$ 206.34 | |||||
| 28 | WP3391018 | Tie, Cable (push-mount) (Replaces: 3391018) |
|
$ 33.43 | |||||
| 29 | WPW10476828 | Control, Electronic (Replaces: 8558178) |
|
Immediately | $ 329.93 | ||||
| 30 | WP488729 | Screw, 8-18 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 31 | WP8568314 | Strap, Console (Replaces: 8568314) |
|
$ 8.17 | |||||
| 32 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 33 | W10101397 | Cap, End (r.h.) (oxide) |
|
- | |||||
| 33 | WPW10193821 | Cap, End (r.h.) (white) (Replaces: W10193821) |
|
$ 74.72 | |||||
| 34 | W10101398 | Endcap, Left (oxide) |
|
- | |||||
| 34 | WPW10193824 | Cap, End (l.h.) (white) (Replaces: W10193824) |
|
$ 74.39 | |||||
| 35 | W10124166 | Harness, Buzzer (on/off) |
|
- |
