View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts

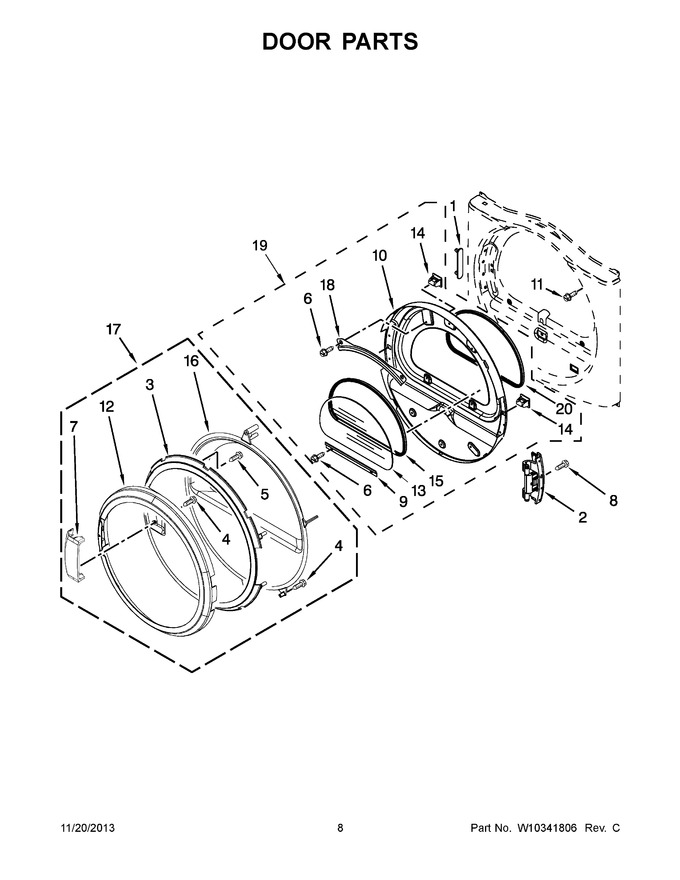

05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10256915 | White (Replaces: W10256915) |
|
$ 73.86 | |||||
| 2 | WPW10304672 | Assembly, Door Hinge (Replaces: W10304672) |
|
Immediately | $ 209.23 | ||||
| 3 | W10119053 | Door Screen |
|
$ 201.38 | |||||
| 4 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 6.80 | ||||
| 5 | 3400618 | Screw |
|
$ 61.15 | |||||
| 6 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 7.67 | |||||
| 7 | W10112977 | Handle, Door |
|
$ 88.68 | |||||
| 8 | WPW10159996 | Screw (Replaces: W10159996) |
|
$ 7.67 | |||||
| 9 | W10822054 | Retainer, Window (Replaces: 8519354) |
|
Immediately | $ 16.21 | ||||
| 10 | W11690171 | Door, Inner (Replaces: W10363674) |
|
$ 184.04 | |||||
| 11 | WP355515 | Screw (Replaces: 355515) |
|
$ 7.63 | |||||
| 12 | W10253122 | Door, Outer Ring |
|
$ 113.61 | |||||
| 13 | WPW10286878 | Window (Replaces: W10286878) |
|
$ 247.28 | |||||
| 14 | 279570 | Assembly, Door Catch (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 15 | W11706993 | Seal, Window (Replaces: 8579663) |
|
$ 25.40 | |||||
| 16 | WP8580059 | Door, Intermediate (stationary) (Replaces: 8580059) |
|
$ 96.75 | |||||
| 17 | W10283417 | Door, Outer Assembly |
|
$ 219.70 | |||||
| 18 | 8519356 | Retainer-window Upper |
|
- | |||||
| 19 | W10164060 | Inner Door Assembly |
|
$ 56.96 | |||||
| 20 | WPW10163915 | Seal, Door (Replaces: W10163915) |
|
Immediately | $ 119.44 |
