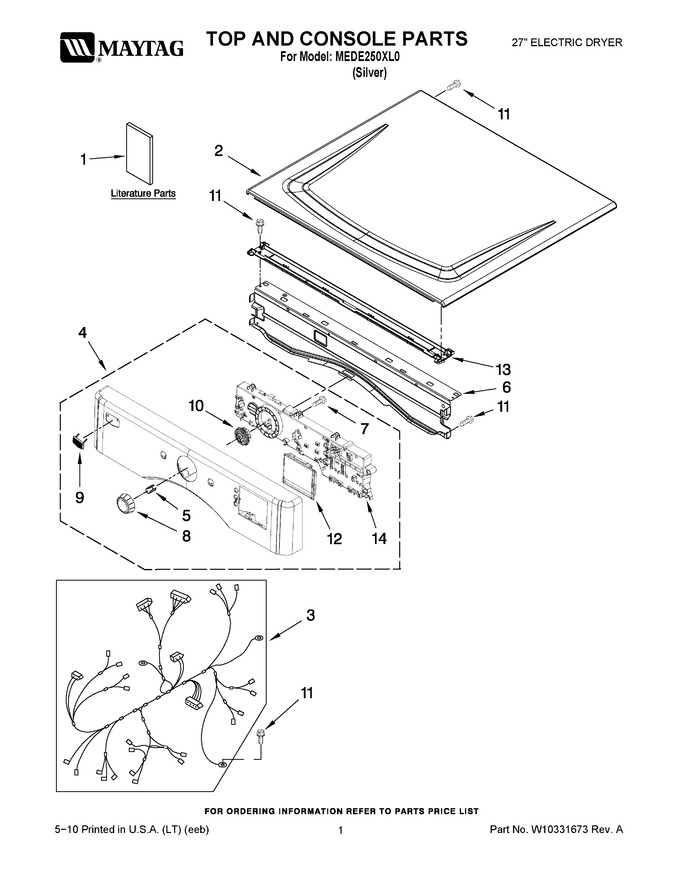

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10240579 | Installatiion, Instruction |
|
- | |||||
| 1 | W10240878 | Use & Care Guide |
|
- | |||||
| 1 | W10286852 | Tech Sheet |
|
- | |||||
| 2 | WPW10336091 | Top (Replaces: W10251213) |
|
$ 324.93 | |||||
| 3 | W10251442 | Harness, Main |
|
- | |||||
| 4 | WPW10325342 | Panel, Console (includes Illus. 15.) (Replaces: W10325342) |
|
$ 371.41 | |||||
| 5 | 8542702 | Spring, Clip Knob |
|
- | |||||
| 6 | WP8565237 | Bracket, Console (Replaces: 8565237) |
|
$ 189.77 | |||||
| 7 | W10006580 | Screw, M3-12 X 12 |
|
- | |||||
| 8 | W11676494 | Knob, Assembly (Replaces: W10215799) |
|
$ 61.17 | |||||
| 9 | W10732500 | Badge (Replaces: W10177245) |
|
$ 45.43 | |||||
| 10 | W10215797 | Guide, Assembly Cycle Light |
|
- | |||||
| 11 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | W10215794 | Window, Console Display |
|
$ 51.90 | |||||
| 13 | WPW10266747 | Channel, Water (Replaces: W10266747) |
|
$ 73.96 | |||||
| 14 | W10215829 | Assembly, User Interface |
|
$ 232.06 |
