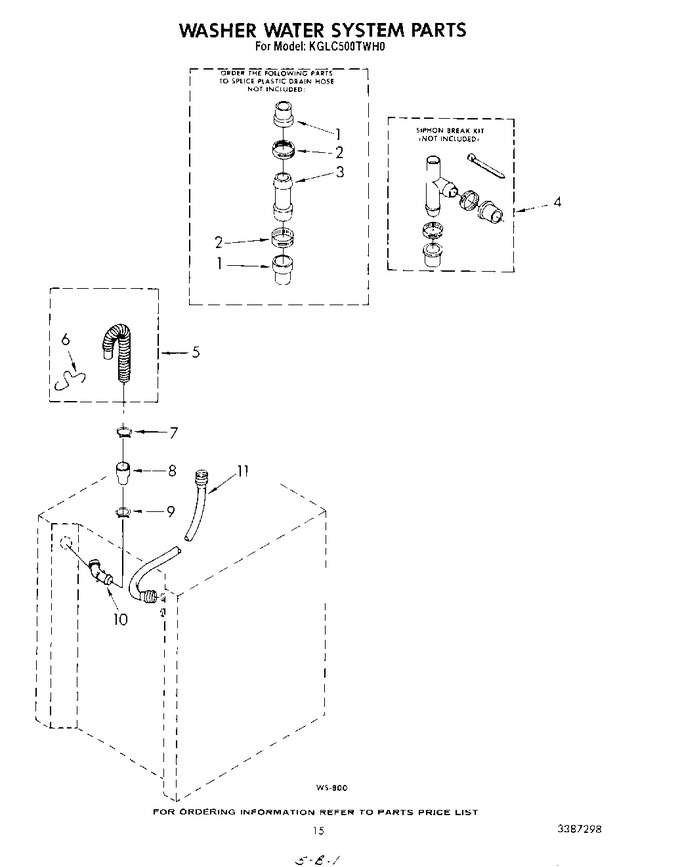

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	285321		Sleeve Kit, Plastic Drain Hose (contains 2 Sleeves)				$ 88.11
2	WP285655		Clamp, Hose (2)   (Replaces: 65349)			Immediately	$ 8.81
3	WP16272		Connector Straight   (Replaces: 16272)				$ 8.21
4	76660		Siphon Break Kit (not Included)   (Replaces: 285320)			Immediately	$ 139.91
5	285664		Hose, Corrugated Plastic Drain (5-1/2 Ft.)   (Replaces: 387325)			Immediately	$ 42.09
5	285666		Hose, Corrugated Plastic Drain (10 Ft.) (not Included)   (Replaces: 388418)			Immediately	$ 108.98
6	357247		Retainer, Drain Hose		Appelez-nous	-
7	WP616099		Clamp, Hose   (Replaces: 371504)			Immediately	$ 8.58
8	WP384496		Coupling, Hose   (Replaces: 384496)				$ 90.39
9	WP285655		Clamp, Hose   (Replaces: 370445)			Immediately	$ 8.81
10	W11213338		Connector, Hose   (Replaces: 356739)				$ 74.13
11	WP89503		Hose, Inlet (2)   (Replaces: 3349716)			Immediately	$ 24.09
