SELECT A DIAGRAM

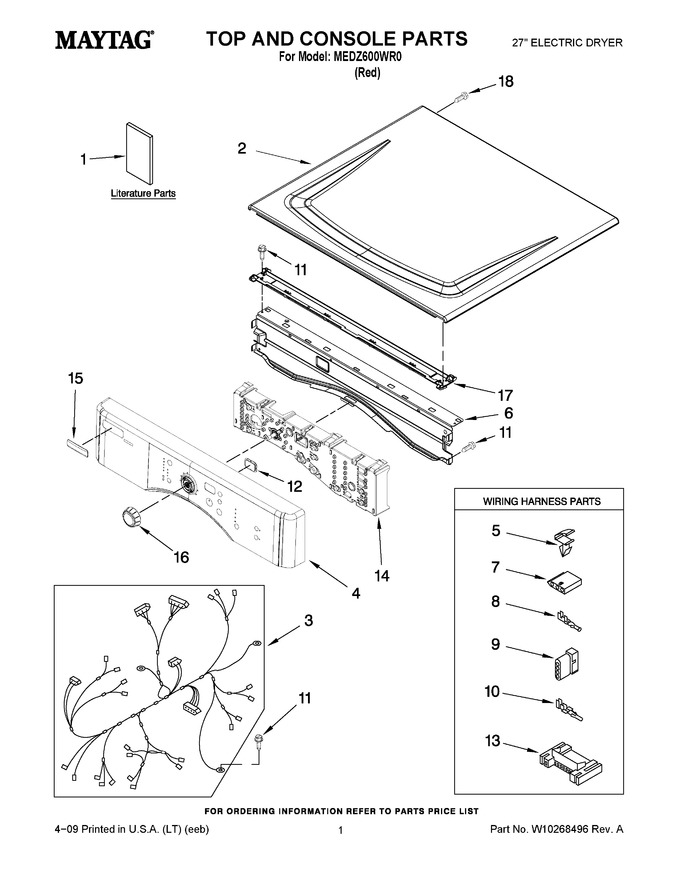

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10112937		Use & Care Guide		Appelez-nous	-
1	W10117402		Tech Sheet		Appelez-nous	-
1	W10117403		Guide, Quick Start		Appelez-nous	-
2	W10251212		Top		Appelez-nous	-
3	W10202231		Harness, Main		Appelez-nous	-
4	W10259072		Panel, Console (includes Illus. 15.)		Appelez-nous	-
5	WP3394427		Clip-harness   (Replaces: 3394427)				$ 8.18
6	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 189.77
7	353424		Connector Sensor				$ 18.95
8	WP94614		Terminal   (Replaces: 94614)				$ 8.05
9	3936144		Plug, Terminal				$ 21.22
10	94613		Terminal		Appelez-nous	-
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
12	W10117387		Lens, Display		Appelez-nous	-
13	3395683		Connector, Motor			Immediately	$ 54.45
14	W10117417		Assembly, User Interface				$ 275.17
15	W10203949		Badge				$ 72.04
16	WPW10119050		Knob, Assembly   (Replaces: W10119050)				$ 56.35
17	WPW10266747		Channel, Water   (Replaces: 8574968)				$ 73.96
18	3400238		Screw, 2-28 X 1/2				$ 12.03

    View Diagram in Separate Window       Print Part List
