SELECT A DIAGRAM

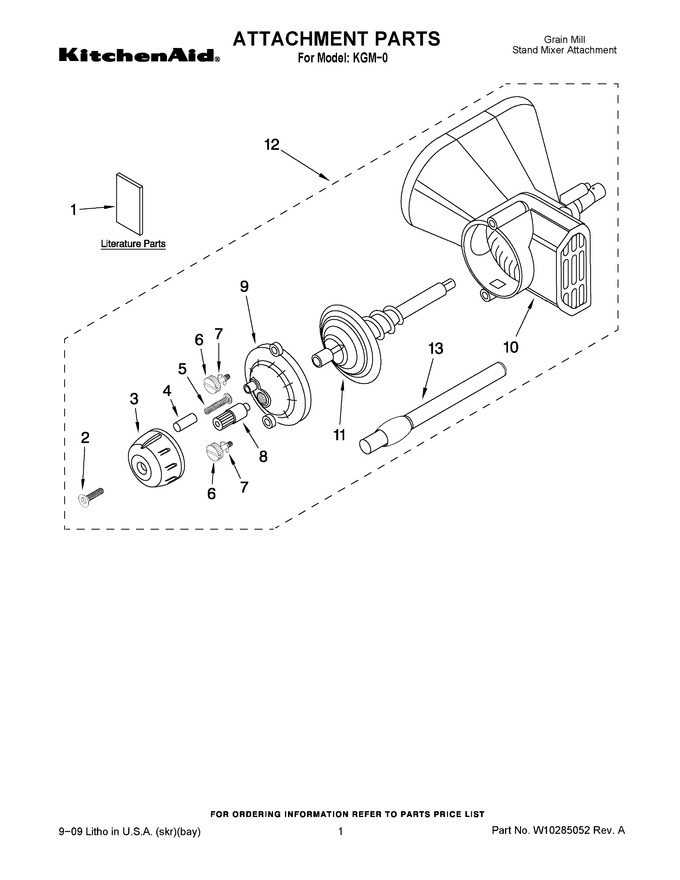

01 - Attachment Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10250966 | Guide,use & Care |
|
- | |||||
| 1 | W10285052 | Parts List |
|
- | |||||
| 2 | W10296472 | Screw, Knob |
|
- | |||||
| 3 | W10296471 | Knob, Adjusting |
|
- | |||||
| 4 | W10296470 | Cover, Spring |
|
- | |||||
| 5 | W10296469 | Spring |
|
- | |||||
| 6 | W10296468 | Screw, Non-removable |
|
- | |||||
| 7 | W10296467 | Clip, Screw |
|
- | |||||
| 8 | W10296466 | Screw, Set |
|
- | |||||
| 9 | W10296465 | Front Plate And Bushing Assembly |
|
- | |||||
| 10 | W10296462 | Housing Assembly |
|
- | |||||
| 11 | W10296464 | Shaft Assembly |
|
- | |||||
| 12 | W10318099 | Grain Mill |
|
$ 238.59 | |||||
| 13 | W10295388 | Brush, Cleaning |
|
- |
