SELECT A DIAGRAM
01 - Body
02 - Control Panel/top Asy
03 - Door
04 - Oven/base
05 - Supplemental Information
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

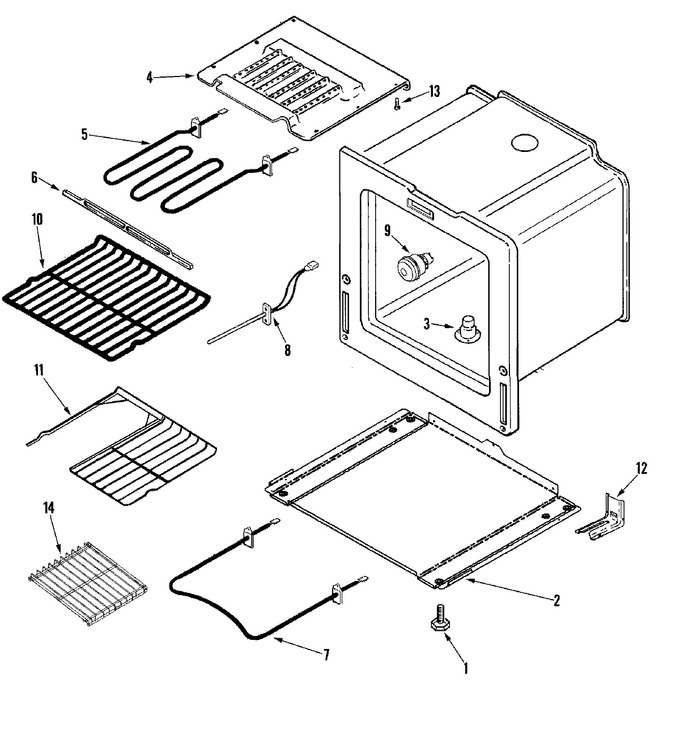

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11665456 | Leg, Leveling (Replaces: 74002373) | 10 |
|
Immediately | $ 29.52 | |||
| 2 | 4003F067-51 | Base, Drop-in (Replaces: 74011204) | 10 |
|
- | ||||
| 3 | 74010808 | Tube, Vent (lwr) | 10 |
|
- | ||||
| 4 | 74010810 | Baffle, Broil | 10 |
|
- | ||||
| 5 | WP7406P218-60 | Element, Broil (6 Pass) (Replaces: 74003040) | 10 |
|
Immediately | $ 177.66 | |||
| 6 | 74003563 | Support, Broil Element | 10 |
|
- | ||||
| 7 | WPW10310274 | Element, Bake (Replaces: 74010883) | 10 |
|
Immediately | $ 120.66 | |||
| 8 | 12001656 | Sensor, Oven (long) (Replaces: 74004943) | 10 |
|
Immediately | $ 43.94 | |||
| 9 | WP7407P182-60 | Lamp Assembly (Replaces: 74010885) | 10 |
|
Immediately | $ 73.44 | |||
| 10 | WPW10282492 | Rack, Oven (Replaces: 74001757) | 10 |
|
Immediately | $ 72.39 | |||
| 11 | 74009589 | Rack, Create A Space Half 30`` | 10 |
|
- | ||||
| 12 | WP7101P485-60 | Screw (Replaces: 7101P352-60) | 10 |
|
$ 30.72 | ||||
| 12 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 74005564) | 10 |
|
Immediately | $ 6.11 | |||
| 13 | WP67006908 | Screw, 3/4`` Hex Head (Replaces: 74010505) | 10 |
|
Immediately | $ 8.78 | |||
| 14 | 74009587 | Insert, Half Rack 30`` | 10 |
|
$ 45.11 |
