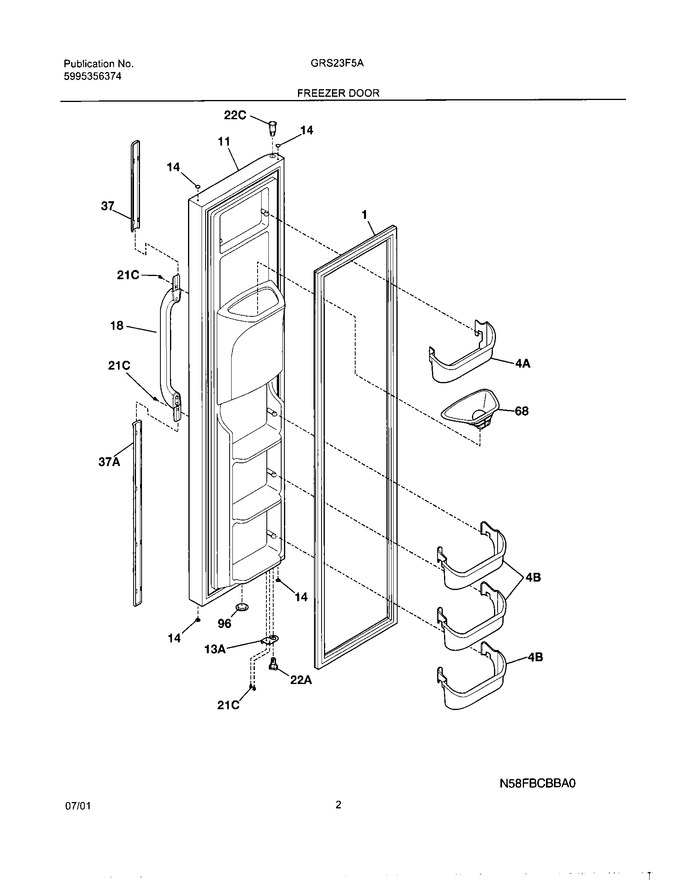

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241786016		Gasket-door,white   (Replaces: 240390604)				$ 103.47
11	240451843		Door-frzr,white ,complete Assy		Appelez-nous	-
14	240494001		Plug-button, White   (Replaces: 218915701)			Immediately	$ 20.22
18	218668401		Handle-door, White				$ 74.97
37	215867083		Trim-handle, White, Upper, With Snap Lock				$ 73.07
68	240465801		Chute-ice		Appelez-nous	-
96	240345503		Plug-foam Hole,white		Appelez-nous	-
13A	240456902		Door Stop,white ,frzr		Appelez-nous	-
21C	5304455650		Screw   (Replaces: 5308016566)				$ 15.75
22A	242000501		Bearing-hinge,closer   (Replaces: 240328202)				$ 7.93
22C	240328402		Bearing-hinge,upper				$ 22.05
37A	215867082		Trim-handle, White, Lower, With Snap Locks				$ 78.21
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
4A	240367301		Bin-door,frzr-upper			Immediately	$ 49.64
4B	240359001		Bin-door			Immediately	$ 75.68
NI	240323201		Wiring Harness		Appelez-nous	-
NI	240545201		Connector-water,straight   (Replaces: 240352101)				$ 81.90
NI	5303918256		Dispenser Heater Kit				$ 526.84

    View Diagram in Separate Window       Print Part List
