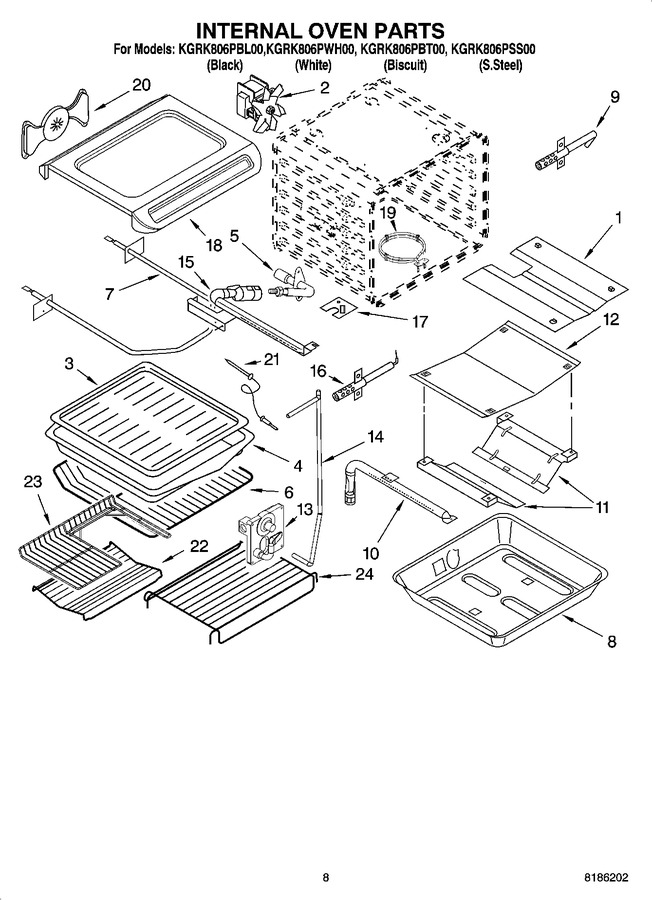

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9752980 | Shield, Flame |
|
$ 38.26 | |||||
| 1 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 2 | 4451583 | Assy, Fan |
|
$ 140.53 | |||||
| 3 | WP3195996 | Grill, Broiler (Replaces: 4457277) |
|
$ 98.65 | |||||
| 4 | WP3196076 | Pan, Broiler (Replaces: 4457276) |
|
$ 330.36 | |||||
| 5 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 5 | 9757779 | Fitting, Broiler |
|
$ 130.68 | |||||
| 6 | WPW10179152 | Rack, Oven (Replaces: 4448717) |
|
Immediately | $ 119.61 | ||||
| 7 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 7 | 4453625 | Element, Broil |
|
- | |||||
| 8 | WPW10145744 | Pan Support, Bake (Replaces: 4453957) |
|
$ 214.15 | |||||
| 9 | W11684507 | Screw (Replaces: 3196385) |
|
$ 14.27 | |||||
| 9 | 8191123 | Electrode, Bake (Replaces: 4454048) |
|
$ 292.58 | |||||
| 10 | 8191123 | Burner, Bake Log (Replaces: 4454047) |
|
$ 292.58 | |||||
| 10 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 11 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 11 | 9752737 | Shield, Oven |
|
$ 22.04 | |||||
| 12 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 12 | 4453984 | Shield, Bake Flame |
|
- | |||||
| 13 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 13 | WP9763716 | Valve, Assy (Replaces: 4453999) |
|
Immediately | $ 534.59 | ||||
| 14 | 9756831 | Tube, Broil |
|
$ 155.53 | |||||
| 15 | 9757700 | Burner, Broil |
|
- | |||||
| 16 | W11684507 | Screw (Replaces: 3196385) |
|
$ 14.27 | |||||
| 16 | WP8054129 | Ignitor, Broil (Replaces: 8054129) |
|
Immediately | $ 137.14 | ||||
| 17 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 17 | 4454009 | Cover, Ignitor |
|
$ 5.31 | |||||
| 18 | WPW10272546 | Pan, Oven Bottom (Replaces: 4453920) |
|
Immediately | $ 222.79 | ||||
| 19 | 9760777 | Element, Convect (Replaces: 4453650) |
|
$ 286.80 | |||||
| 19 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 20 | 9756689 | Cover, Fan |
|
- | |||||
| 20 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 21 | 8186589 | Probe, Meat (Replaces: 4451355) |
|
Immediately | $ 108.02 | ||||
| 22 | 3181534 | Rack, Roasting |
|
- | |||||
| 23 | 9759681 | Rack, Half |
|
- | |||||
| 24 | 4396927 | Rack, Insert (Replaces: 8274022) |
|
$ 246.10 |
