01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts

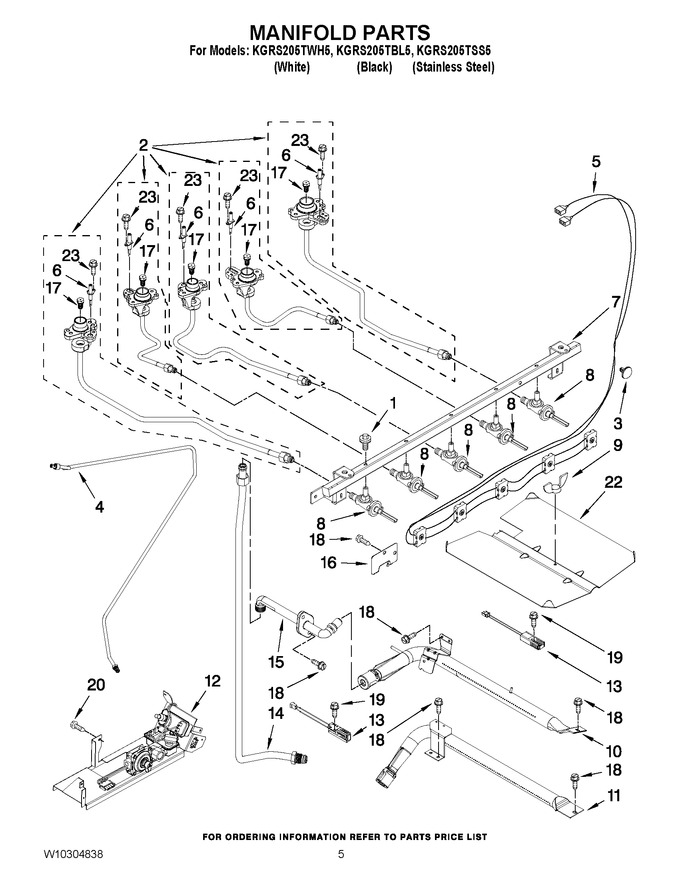

04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3368921 | Screw, Valve (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 2 | W10169906 | Holder, Orifice (left Front) |
|
$ 111.49 | |||||
| 2 | W10169903 | Holder, Orifice (center) |
|
- | |||||
| 2 | W10169901 | Holder, Orifice (left Rear) |
|
- | |||||
| 2 | W10169902 | Holder, Orifice (right Rear) |
|
- | |||||
| 2 | W10169907 | Holder, Orifice (right Front) |
|
$ 48.54 | |||||
| 3 | 74008761 | Spacer, Snap-in (Replaces: 8010P149-60) |
|
$ 8.81 | |||||
| 4 | 7506P361-60 | Tubing, Main Supply |
|
- | |||||
| 5 | WP74010753 | Harness, Igniter Includes Switches (Replaces: 7403P983-60) |
|
$ 248.88 | |||||
| 6 | WPW10216419 | Ignitor, Top Burner (Replaces: W10216419) |
|
Immediately | $ 36.72 | ||||
| 7 | 7513P499-60 | Pipe, Manifold |
|
- | |||||
| 8 | 74010751 | Valve (rf) (Replaces: 7502P501-60) |
|
$ 283.44 | |||||
| 8 | 7502P500-60 | Valve (lr & Rr) |
|
$ 118.46 | |||||
| 8 | W10269504 | Valve (center) |
|
$ 215.40 | |||||
| 8 | WP7502P499-60 | Valve (lr) (Replaces: 7502P499-60) |
|
$ 273.86 | |||||
| 9 | 7103P030-60 | Nut |
|
$ 7.43 | |||||
| 10 | W10160904 | Burner, Broiler |
|
$ 210.55 | |||||
| 11 | 7505P331-60 | Burner, Bake |
|
- | |||||
| 12 | 7501P233-60 | Valve/regulator |
|
- | |||||
| 13 | 74007498 | Igniter (broil) (Replaces: 7432P106-60) |
|
Immediately | $ 87.11 | ||||
| 13 | WP7432P136-60 | Igniter (bake) (Replaces: 7432P136-60) |
|
Immediately | $ 94.02 | ||||
| 14 | 74008830 | Tubing (broiler Fitting To Valve) (Replaces: 7506P368-60) |
|
$ 87.44 | |||||
| 15 | W10247148 | Fitting, Broiler |
|
$ 14.45 | |||||
| 16 | 4005F421-45 | Cover, Igniter |
|
- | |||||
| 17 | WPW10170508 | Orifice, Burner (right Rear) (Replaces: W10170508) |
|
$ 95.21 | |||||
| 17 | W10170511 | Orifice, Burner (right Front) |
|
$ 42.01 | |||||
| 17 | WPW10170506 | Orifice, Burner (left Rear) (Replaces: W10170506) |
|
$ 97.85 | |||||
| 17 | W10178934 | Orifice, Burner (left Front) |
|
Immediately | $ 103.60 | ||||
| 17 | W10251991 | Orifice, Burner (center) |
|
$ 90.76 | |||||
| 18 | W11684507 | Screw (Replaces: 3196385) |
|
$ 14.27 | |||||
| 19 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 5.07 | |||||
| 20 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 22 | 3601P336-45 | Baffle, Broil Burner |
|
$ 227.09 | |||||
| 23 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| NI | W10271869 | Spuds, Lp Gas (kit Of 5) |
|
$ 14.79 |
