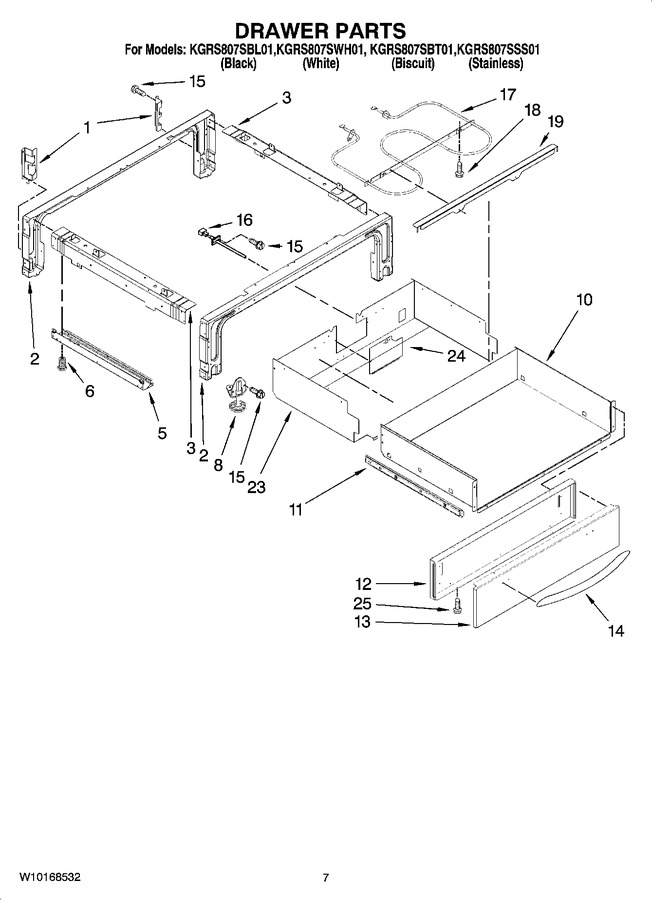

04 - Drawer Parts


05 - Top Venting Parts


06 - Internal Oven Parts


07 - Cooktop Burner Parts


08 - Triple Crown Burner


09 - Control Panel Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9757686		Support, Drawer Rail (left)				$ 38.48
1	9757687		Support, Drawer Rail (right)				$ 38.36
2	9763501BL		Support, Front & Rear				$ 43.72
3	4453720		Brace, Drawer (right)				$ 34.27
3	4453721		Brace, Drawer (left)				$ 34.27
5	9759954		Side, Base (left)				$ 88.47
5	9759953		Side, Base (right)				$ 108.70
6	WPW10058460		Foot   (Replaces: W10058460)			Immediately	$ 8.24
8	WP3196037		Foot Assembly   (Replaces: 3196037)				$ 87.12
10	W10144430		Drawer		Appelez-nous	-
11	WPW10155632		Guide, Roller Includes Roller (left)   (Replaces: W10019800)				$ 108.71
11	W10019810		Guide, Roller Includes Roller (right)		Appelez-nous	-
12	W10144431		Panel, Drawer		Appelez-nous	-
13	9761747WH		Front, Drawer (white)		Appelez-nous	-
13	9761747BL		Front, Drawer (black)		Appelez-nous	-
13	9761747BT		Front, Drawer (biscuit)		Appelez-nous	-
13	W10140545		Front, Drawer (stainless)		Appelez-nous	-
14	9761573SS		Handle, Drawer (stainless)		Appelez-nous	-
14	9761573WH		Handle, Drawer (white)				$ 79.22
14	9761573BT		Handle, Drawer (biscuit)		Appelez-nous	-
14	9761573BL		Handle, Drawer (black)		Appelez-nous	-
15	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
16	WP8274149		Thermistor   (Replaces: 8274149)			Immediately	$ 192.05
17	9760775		Element, Warming				$ 179.06
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	9758676		Support, Element		Appelez-nous	-
23	9761796		Enclosure, Warming Drawer				$ 78.12
24	W10153099		Cover, Access		Appelez-nous	-
25	WP3400805		Screw   (Replaces: 3400805)				$ 7.55
