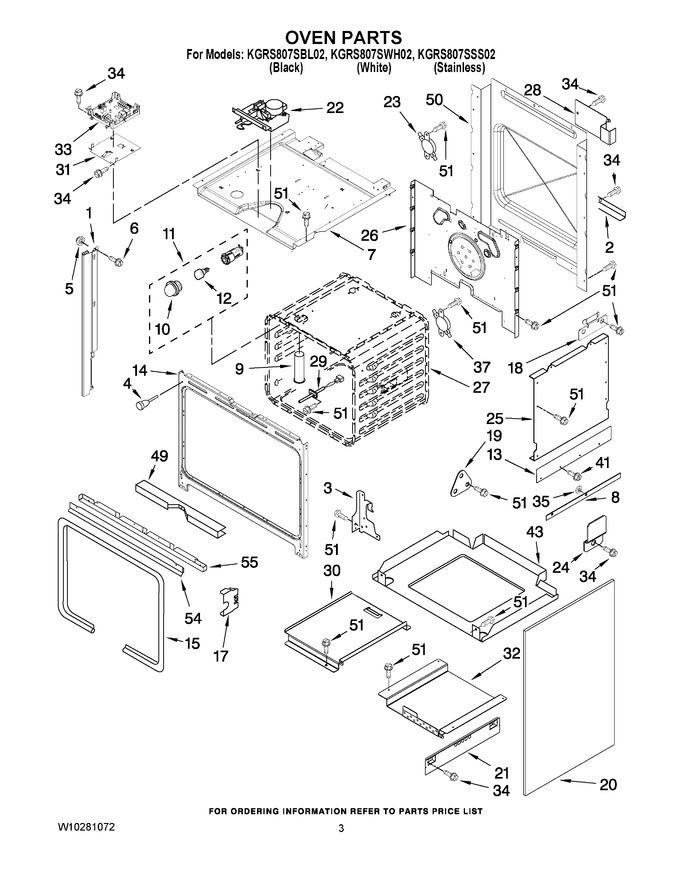

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10109540 | Trim, Side Right (black) |
|
- | |||||
| 1 | W10109570 | Trim, Side Right (white) |
|
$ 35.20 | |||||
| 1 | W10140548 | Trim, Side Right (stainless) |
|
$ 37.10 | |||||
| 1 | W10109490 | Trim, Side Left (black) |
|
$ 35.09 | |||||
| 1 | W10109520 | Trim, Side Left (white) |
|
$ 37.28 | |||||
| 1 | W10140547 | Trim, Side Left (stainless) |
|
$ 20.43 | |||||
| 2 | 8053971 | Brace, Main Back |
|
$ 7.82 | |||||
| 3 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 131.74 | ||||
| 3 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 127.70 | ||||
| 4 | W10105790 | Bumper, Door |
|
$ 7.41 | |||||
| 5 | WP4448444 | Grommet (Replaces: 4448444) |
|
$ 7.85 | |||||
| 6 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 8.18 | ||||
| 7 | 8303099 | Top Chassis |
|
$ 70.97 | |||||
| 8 | 9759722 | Insulation Body, Side Trim |
|
$ 33.40 | |||||
| 9 | 9761666 | Tube, Vent |
|
- | |||||
| 10 | W10067870 | Lens, Light |
|
$ 65.50 | |||||
| 11 | WPW10734065 | Assembly, Oven Light (Replaces: W10009930) |
|
$ 101.46 | |||||
| 12 | WP4173175 | Bulb, Light (Replaces: 4452166) |
|
Immediately | $ 53.62 | ||||
| 13 | 9757732 | Shield, Heat |
|
- | |||||
| 14 | WPW10115831 | Frame, Front (Replaces: W10115831) |
|
$ 351.89 | |||||
| 15 | W11675844 | Gasket, Door (Replaces: W10074200) |
|
Immediately | $ 74.56 | ||||
| 17 | 4452152 | Bracket, Mounting |
|
$ 35.18 | |||||
| 18 | 9757685 | Guide, Side Panel |
|
$ 36.23 | |||||
| 19 | 9757461 | Bracket, Side Panel |
|
$ 37.11 | |||||
| 20 | 9760723PB | Oven, Side Panel (black) |
|
- | |||||
| 20 | 9760723PW | Oven, Side Panel (white) |
|
- | |||||
| 21 | 9757811 | Brace, Side Panel |
|
- | |||||
| 22 | WPW10195934 | Latch, Motorized (Replaces: W10195934) |
|
Immediately | $ 288.66 | ||||
| 23 | WP9757807 | Thermostat (Replaces: 9757807) |
|
Immediately | $ 112.22 | ||||
| 24 | 9759890 | Clip, Side Panel |
|
$ 9.71 | |||||
| 25 | W10782197 | Side, Chassis (Replaces: 4455641) |
|
$ 150.69 | |||||
| 26 | 9759762 | Back, Chassis |
|
- | |||||
| 27 | N/P | Liner, Oven (not Serviceable) |
|
- | |||||
| 28 | 9759945 | Standoff, Rear |
|
$ 58.51 | |||||
| 29 | WPW10131825 | Sensor (Replaces: W10131825) |
|
Immediately | $ 95.83 | ||||
| 30 | 9756454 | Bracket, Goc |
|
$ 68.50 | |||||
| 31 | 9760223 | Slide, Dsi |
|
$ 8.06 | |||||
| 32 | W10083460 | Slide, Goc |
|
- | |||||
| 33 | 9762774 | Central, Appliance |
|
$ 373.91 | |||||
| 34 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 35 | 9760481 | Washer, Insulation Body Side Trim |
|
- | |||||
| 37 | WP9759242 | Thermostat (tod) (Replaces: 9759242) |
|
Immediately | $ 85.57 | ||||
| 41 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 7.55 | |||||
| 43 | W10110534 | Base, Chassis |
|
$ 138.23 | |||||
| 43 | 9756637 | Gasket |
|
- | |||||
| 49 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 9.30 | |||||
| 50 | 9758583 | Cover, Back |
|
$ 215.30 | |||||
| 51 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 54 | 9756481BL | Vent, Bottom Upper (black) |
|
- | |||||
| 54 | 9756481WH | Vent, Bottom Upper (white) |
|
- | |||||
| 54 | W10140533 | Vent, Bottom Upper (stainless) |
|
- | |||||
| 55 | W10153488 | Trim, Bottom Vent (white) |
|
$ 36.15 | |||||
| 55 | W10153486 | Trim, Bottom Vent (black) |
|
$ 62.57 | |||||
| 55 | W10154789 | Trim, Bottom Vent (stainless) |
|
$ 97.50 | |||||
| NI | 9756817 | Insulation, Wrap |
|
$ 76.03 | |||||
| NI | 9756470 | Insulation, Back |
|
$ 68.08 | |||||
| NI | W10095410 | Insulation, Cover Back, Top |
|
- | |||||
| NI | W10095400 | Insulation, Cover Back, Side |
|
- |
