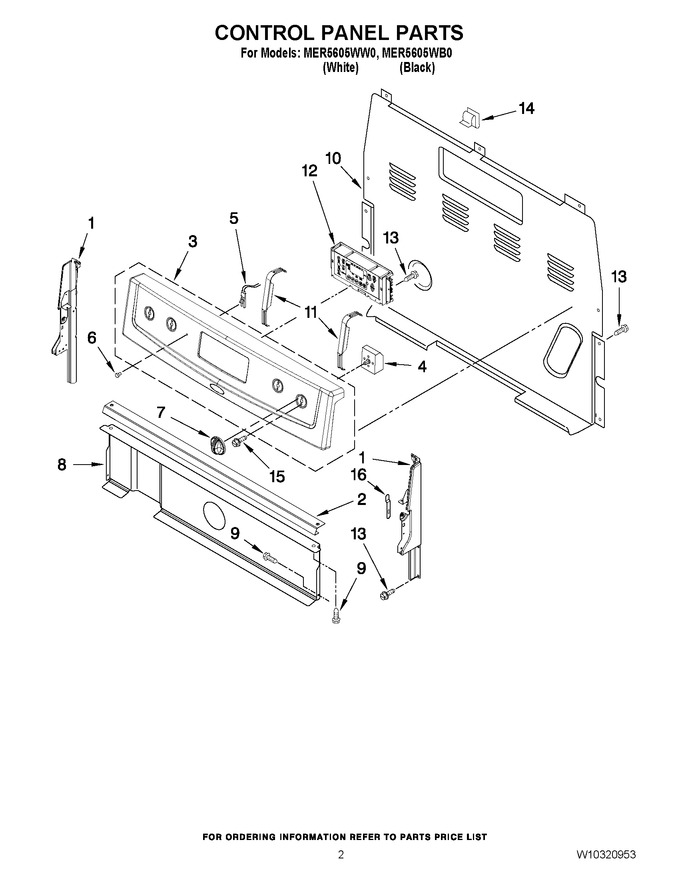

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white Left Hand)   (Replaces: W10184433)				$ 42.45
1	W11219370		Endcap (white Right Hand)   (Replaces: W10184434)				$ 60.83
1	W11219664		Endcap (black Left Hand)   (Replaces: W10184437)				$ 153.83
1	W11219665		Endcap (black Right Hand)   (Replaces: W10184438)				$ 45.17
2	W10525121		Brkt-mntg, Console   (Replaces: W10182322)				$ 98.85
3	W10276854		Panel, Console (black)		Appelez-nous	-
3	W10276853		Panel, Console (white)				$ 114.31
4	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
4	5500-287		Switch, Infinite ((lr)(rf))   (Replaces: 3148951)			Immediately	$ 52.39
4	5500-287		Switch, Infinite ((lf)(rr))   (Replaces: 3148953)			Immediately	$ 52.39
5	WP8523265		Light, Indicator   (Replaces: 8523265)			Immediately	$ 86.31
6	WP3196068		Lens, Light   (Replaces: 3196068)			Immediately	$ 6.26
7	WPW10211371		Knob, Infinite (white)   (Replaces: W10211371)			Immediately	$ 21.23
7	W11193834		Knob, Infinite (black)   (Replaces: W10211372)				$ 88.98
8	8053912		Shield, Heat				$ 34.55
9	3196166		Screw				$ 7.36
10	WP8272473		Cover, Upper   (Replaces: 8272473)				$ 219.04
11	W11230932		Brkt, Mntg Eoc   (Replaces: W10138683)			Immediately	$ 84.81
12	W10310972		Control, Range (white)				$ 433.43
12	WPW10310971		Control, Range (black)   (Replaces: W10310971)				$ 391.72
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	WP8273564		Clip   (Replaces: 8273564)				$ 12.66
15	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
16	3196200		Clip, Spring				$ 10.45

    View Diagram in Separate Window       Print Part List
