View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

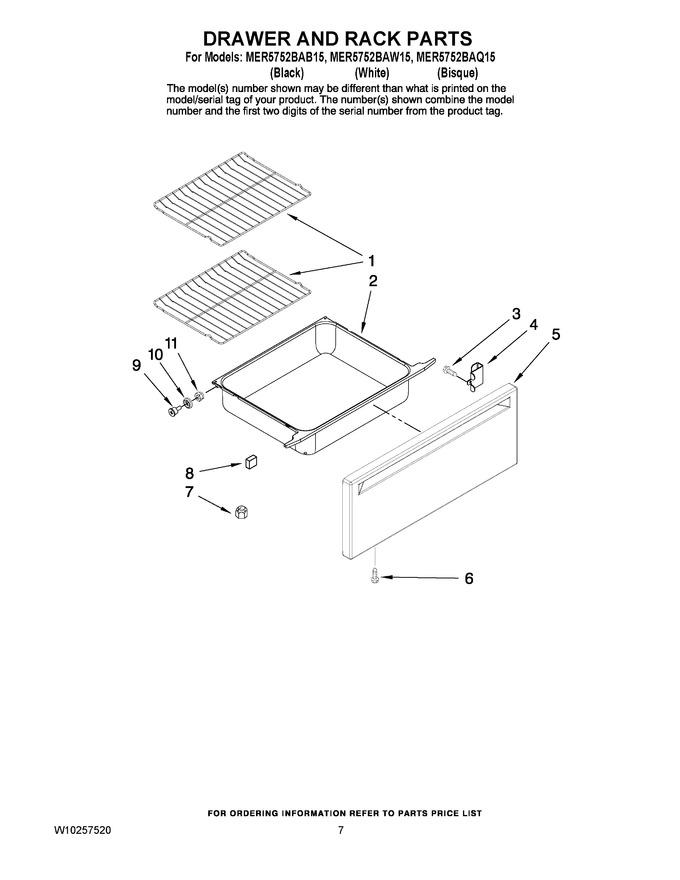

| 1 | WPW10282492 | Rack, Oven (Replaces: 7801P054-60) |
|
Immediately | $ 72.39 | ||||
| 2 | WP3405F037-80 | Drawer, Storage (Replaces: 3405F033-80) |
|
$ 338.87 | |||||
| 3 | WP7101P072-60 | Screw, 10-24x3/8 (Replaces: 7101P072-60) |
|
$ 7.52 | |||||
| 4 | 3801F887-51 | Bracket, Drawer |
|
$ 8.32 | |||||
| 5 | 2416F102-78 | Panel, Drawer (bisque) |
|
- | |||||
| 5 | 2416F102-71 | Panel, Drawer (white) |
|
- | |||||
| 5 | 2416F102-70 | Panel, Drawer (black) |
|
- | |||||
| 6 | W11233072 | Screw, Panel (bisque) (Replaces: 7101P664-60) |
|
Immediately | $ 14.02 | ||||
| 6 | WP98008545 | Screw, Panel (black) (Replaces: 7101P633-60) |
|
$ 17.71 | |||||
| 6 | 7101P663-60 | Screw, Panel (white) |
|
- | |||||
| 7 | WPW10131078 | Nut, Lock (Replaces: 7103P139-60) |
|
$ 4.44 | |||||
| 8 | WP74005546 | Spacer, Rubber (Replaces: 8010P130-60) |
|
$ 10.53 | |||||
| 9 | 7118P032-60 | Shaft, Roller |
|
- | |||||
| 10 | W10272883 | Roller, Drawer |
|
$ 7.90 | |||||
| 11 | WP488130 | Nut, Lock (Replaces: 7103P082-60) |
|
$ 6.97 |
