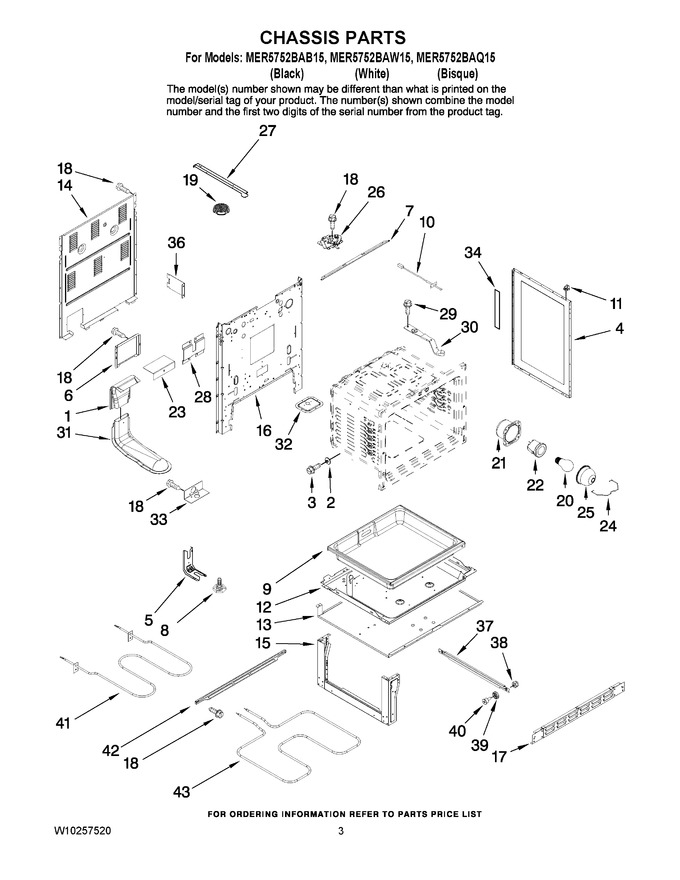

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8026P082-60		Extension, Vent		Appelez-nous	-
2	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)				$ 7.86
3	7101P604-60		Screw, Shoulder		Appelez-nous	-
4	2618F194-78		Panel, Side (bisque)		Appelez-nous	-
4	2618F194-70		Panel, Side (black)				$ 65.57
4	2618F194-71		Panel, Side (white)		Appelez-nous	-
5	WP3801F656-51		Brack, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 5.21
6	4005F747-51		Cover, Access		Appelez-nous	-
7	3801F924-80		Bracket, Cooktop		Appelez-nous	-
8	W11665456		Foot, Leveler (4)   (Replaces: 7101P507-60)			Immediately	$ 28.11
9	2205F061-19		Bottom,dutch Oven				$ 86.15
10	12001656		Sensor, Oven   (Replaces: 7430P042-60)			Immediately	$ 43.94
11	8010P087-60		Spacer, Top (left)		Appelez-nous	-
11	8010P088-60		Spacer, Top (right)		Appelez-nous	-
12	3804F231-51		Retainer,ins Btm				$ 147.45
13	3604F326-45		Shield,warmng Dwr		Appelez-nous	-
14	W10177234		Cover, Main Wire		Appelez-nous	-
15	4020L026-80		Pedestal, Side				$ 27.52
16	W10177185		Back, Main		Appelez-nous	-
17	4020F021-80		Pedestal, Front		Appelez-nous	-
18	W11347848		Screw   (Replaces: 7101P376-60)				$ 13.55
19	8034P008-60		Screen, Smoke				$ 25.43
20	8009		Bulb-oven   (Replaces: 7407P103-60)			Immediately	$ 18.67
21	4001F109-45		Housing, Bulb		Appelez-nous	-
22	7408P044-60		Recepticle, Bulb		Appelez-nous	-
23	8036P026-60		Shield, Element		Appelez-nous	-
24	7804P001-60		Retainer,oven Lamp		Appelez-nous	-
25	7724P102-60		Lens, Bulb		Appelez-nous	-
26	8002P086-60		Latch, Door Lock		Appelez-nous	-
27	4011F459-51		Bottom, Burner Box (left)		Appelez-nous	-
27	4011F458-51		Bottom, Burner Box (right)				$ 31.34
28	7003P104-60		Insul, Heat Shield		Appelez-nous	-
29	WP4159193		Screw,10-24 X 1/4   (Replaces: 7101P230-60)				$ 4.77
30	8009P065-60		Lever,lock Arm (black)		Appelez-nous	-
30	8009P066-60		Lever,lock Arm (white)		Appelez-nous	-
30	8009P067-60		Lever,lock Arm (bisque)		Appelez-nous	-
31	4006W129-45		Vent, Box		Appelez-nous	-
32	3605F354-45		Plate,vent Cover				$ 65.19
33	W10190166		Bracket, Pwr Sply				$ 9.24
34	8270P090-60		Tape, Foil (3``)		Appelez-nous	-
36	3807F400-51		Support,oven Rear		Appelez-nous	-
37	W10182835		Runner, Drawer				$ 75.89
38	7103P190-60		Nut, Lock		Appelez-nous	-
39	W10272883		Roller, Drawer				$ 7.90
40	7118P032-60		Shaft, Roller		Appelez-nous	-
41	WPW10310249		Element, Broil   (Replaces: W10310249)			Immediately	$ 124.81
42	3807F494-45		Support,broil Elem		Appelez-nous	-
43	WP7406P438-60		Element, Bake   (Replaces: 7406P438-60)				$ 178.78
NI	7002P398-60		Insulation, Wrap		Appelez-nous	-
NI	7002P460-60		Insulation, Back		Appelez-nous	-
