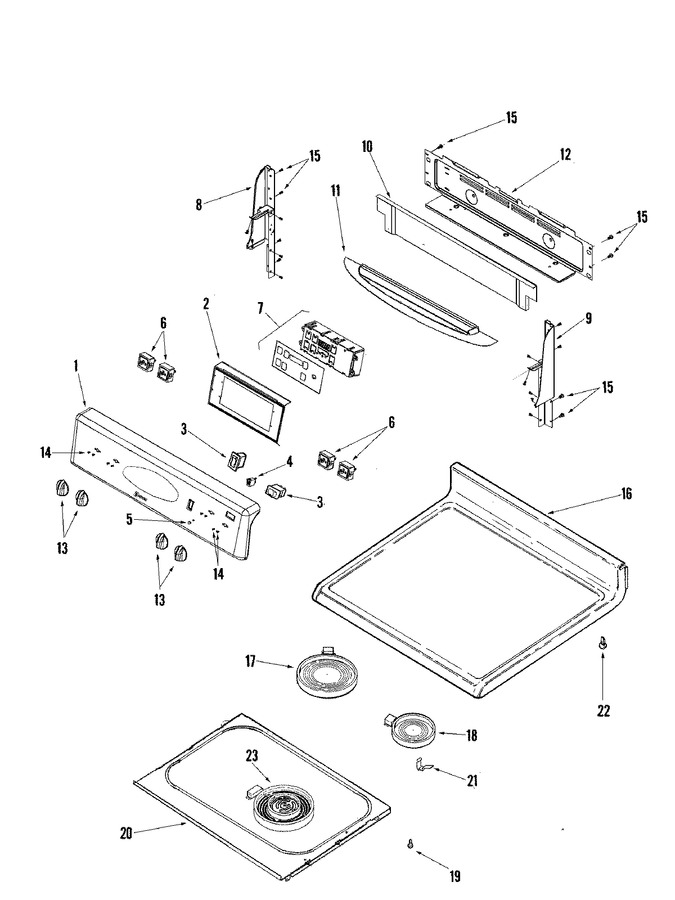

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74009056 | Panel, Backguard (wht) | 10 |
|
- | ||||
| 2 | 74009052 | Bracket, Clock | 10 |
|
- | ||||
| 2 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 14.02 | |||
| 3 | WP74010226 | Switch, Rocker (wht) (Replaces: 74008938) | 10 |
|
$ 96.05 | ||||
| 4 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.91 | |||
| 5 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.73 | ||||
| 6 | WP74003122 | Switch, Infinite (dual) (Replaces: 74003122) | 10 |
|
Immediately | $ 81.70 | |||
| 6 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 64.20 | |||
| 6 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 39.00 | |||
| 7 | 74008645 | Clock/overlay (wht) | 10 |
|
- | ||||
| 7 | WP5701M717-60 | Clock/overlay (wht) (Replaces: 74009211) | 12 |
|
$ 527.40 | ||||
| 7 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 14.02 | |||
| 8 | 74009077 | End Cap (rt-wht) | 10 |
|
- | ||||
| 9 | 74009079 | End Cap (lt-wht) | 10 |
|
- | ||||
| 10 | 74009206 | Shield, Vent (wht) | 13 |
|
- | ||||
| 10 | 74008726 | Shield, Vent (wht) | 10 |
|
- | ||||
| 11 | 74008728 | Shield, Heat Visor (wht) | 10 |
|
- | ||||
| 11 | 74009203 | Shield, Heat Visor (wht) | 13 |
|
- | ||||
| 12 | 74008730 | Cover, Backguard Wire | 10 |
|
- | ||||
| 12 | 74008836 | Insulation, Foil (bkgd) | 10 |
|
- | ||||
| 13 | WP74008947 | Knob (wht/chr) (Replaces: 74008947) | 10 |
|
$ 20.78 | ||||
| 14 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.95 | |||
| 15 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 14.02 | |||
| 16 | 74008545 | Top Assembly (wht) | 10 |
|
- | ||||
| 17 | W10823711 | Element (1200w) (Replaces: 74008568) | 10 |
|
Immediately | $ 204.39 | |||
| 18 | W10823696 | Element (2500w) (Replaces: 74009034) | 10 |
|
Immediately | $ 214.25 | |||
| 19 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 10 |
|
Immediately | $ 14.02 | |||
| 20 | 74008900 | Bottom, Burner Box | 10 |
|
- | ||||
| 21 | 74007134 | Spring, Element Support (Replaces: Y04100418) | 10 |
|
$ 11.68 | ||||
| 22 | 74008761 | Spacer, Snap-in | 10 |
|
$ 8.39 | ||||
| 23 | W10823692 | Element, Dual (2400w) (Replaces: 74008897) | 10 |
|
Immediately | $ 227.59 |
