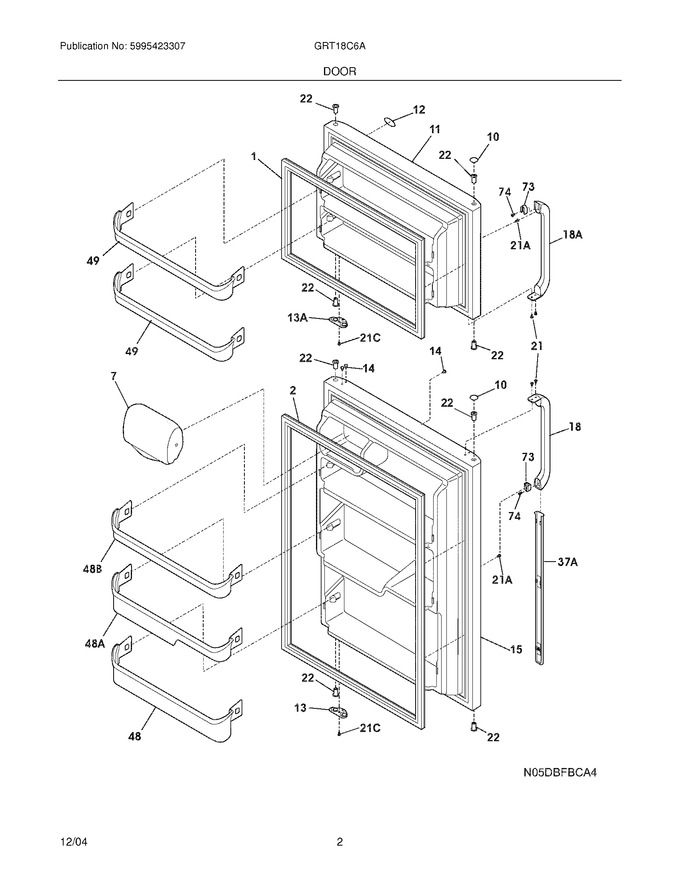

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241872503		Gasket-frzr Door,white ,magnetic   (Replaces: 240542103)			Immediately	$ 152.96
2	242193213		Gasket-refr Door,white ,magnetic   (Replaces: 240542106)			Immediately	$ 211.36
7	240337712		Door,dairy ,clear ,w/graphics   (Replaces: 240337707)			Immediately	$ 40.45
10	240381302		Plug-button,bisque ,hinge Brg Hole ,(2)				$ 19.06
11	240461602		Door-frzr,bisque ,complete Assy		Appelez-nous	-
12	240422302		Label-nameplate,bisque		Appelez-nous	-
13	240312423		Door Stop,bisque ,ref   (Replaces: 240312407)				$ 13.48
14	240494002		Plug-button,bisque				$ 41.12
15	240461702		Door-refr,bisque ,complete Assy		Appelez-nous	-
18	218397512		Handle-door,bisque ,refr ,w/block & Screw		Appelez-nous	-
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500   (Replaces: 240383401)			Immediately	$ 21.37
22	5304507146		Bearing-hinge,natural Color   (Replaces: 240527101)			Immediately	$ 8.43
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 58.19
49	240495804		Bin-door,pseudo ,frzr			Immediately	$ 48.10
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 50.40
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.88
13A	240312408		Door Stop,bisque ,frzr		Appelez-nous	-
18A	218397511		Handle-door,bisque ,w/block & Screw		Appelez-nous	-
21A	240521303		Screw,no.10-16 X 1/2   (Replaces: 240521301)			Immediately	$ 33.55
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 15.75
37A	218906701		Lock-handle Trim,stick-on				$ 67.86
37A	240433603		Trim-handle,26.84`` ,bisque ,lower		Appelez-nous	-
37A	218074004		Plug-button,bisque ,refr Door Front ,lower		Appelez-nous	-
48A	240337901		Bin-door,refr			Immediately	$ 57.92
48B	240338001		Bin-door,pseudo ,gallon ,refr			Immediately	$ 38.84
