SELECT A DIAGRAM

01 - Cooktop Parts


02 - Cooktop Burner Parts


03 - Top Venting Parts


04 - Control Panel Parts

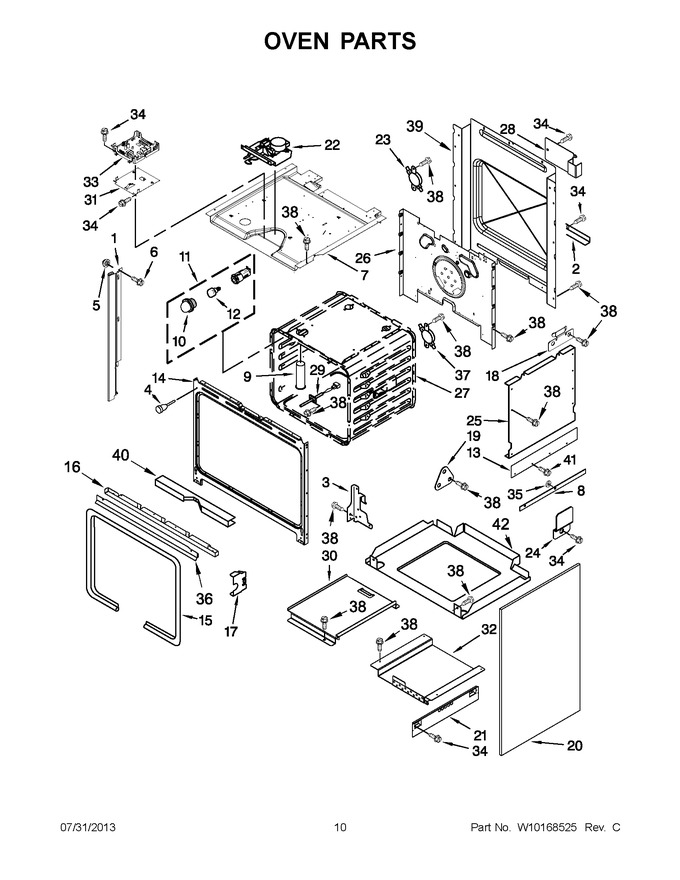

05 - Oven Parts


06 - Door Parts


07 - Drawer Parts


08 - Internal Oven Parts


09 - Triple Crown Burner Parts


10 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10140547		Trim, Side (stainless (left))				$ 20.43
1	W10109540		Trim, Side (black (right))		Appelez-nous	-
1	W10109570		Trim, Side (white (right))				$ 35.20
1	W10109550		Trim, Side (biscuit (right))		Appelez-nous	-
1	W10140548		Trim, Side (stainless (right))				$ 37.10
1	W10109490		Trim, Side (black (left))				$ 35.09
1	W10109520		Trim, Side (white (left))				$ 37.28
1	W10109500		Trim, Side (biscuit (left))		Appelez-nous	-
2	8053971		Brace, Main Back				$ 7.82
3	WP4455605		Receiver, Hinge (left)   (Replaces: 4455605)			Immediately	$ 115.36
3	WP4455606		Receiver, Hinge (right)   (Replaces: 4455606)			Immediately	$ 119.41
4	W10105790		Bumper & Screw				$ 7.06
5	WP4448444		Grommet, Mounting Rail   (Replaces: 4448444)				$ 7.48
6	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 7.75
7	8303099		Chassis, Top				$ 70.97
8	9759722		Insulation, Body Side Trim				$ 33.40
9	9761666		Tube, Vent		Appelez-nous	-
10	W10067870		Lens, Light				$ 65.50
11	WPW10734065		Assembly, Light   (Replaces: W10009930)				$ 96.63
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	9757732		Shield, Heat		Appelez-nous	-
14	WPW10115831		Frame, Front   (Replaces: W10130368)				$ 335.13
15	W11675844		Gasket, Door   (Replaces: W10074200)			Immediately	$ 69.75
16	W10104870		Trim, Bottom Vent (stainless)		Appelez-nous	-
16	W10104900		Trim, Bottom Vent (biscuit)		Appelez-nous	-
16	W10104910		Trim, Bottom Vent (white)		Appelez-nous	-
16	W10104890		Trim, Bottom Vent (black)		Appelez-nous	-
17	4452152		Bracket, Bottom Vent				$ 33.50
18	9757685		Guide, Side Panel				$ 36.23
19	9757461		Bracket,side Panel				$ 37.11
20	9760723PB		Oven, Side Panel (black)		Appelez-nous	-
20	9760723PW		Oven, Side Panel (white)		Appelez-nous	-
20	9760723PC		Oven, Side Panel (biscuit)		Appelez-nous	-
21	9757811		Brace, Side Panel		Appelez-nous	-
22	WP9760889		Latch, Motorized   (Replaces: 9760888)			Immediately	$ 328.65
23	WP9757807		Thermostat Spst   (Replaces: 9757807)			Immediately	$ 106.88
24	9759890		Clip, Side Panel				$ 9.71
25	W10782197		Side, Panel   (Replaces: 4455641)				$ 143.51
26	9759762		Back, Chassis		Appelez-nous	-
27	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
28	9759945		Standoff, Rear				$ 58.51
29	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
30	9756454		Bracket, Appliance Manager				$ 68.50
31	9760223		Slide, Dsi Module				$ 8.06
32	W10083460		Slide, Global Oven Control		Appelez-nous	-
33	9762774		Manager, Appliance				$ 373.91
34	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
35	9760481		Washer		Appelez-nous	-
36	9756481WH		Vent, Bottom Upper (white)		Appelez-nous	-
36	9756481BT		Vent, Bottom Upper (biscuit)		Appelez-nous	-
36	9756481SS		Vent, Bottom Upper (stainless)		Appelez-nous	-
36	9756481BL		Vent, Bottom Upper (black)		Appelez-nous	-
37	WP9759242		Thermostat, Thermal Overload   (Replaces: 9759242)			Immediately	$ 85.57
38	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
39	N/P		Cover, Back		Appelez-nous	-
40	WP4448933		Gasket, Retainer   (Replaces: 4448933)				$ 8.86
41	WP4449743		Screw   (Replaces: 4449743)				$ 7.19
42	W10110534		Base, Chassis				$ 138.23
NI	9756470		Insulation, Back				$ 68.08
NI	9756817		Insulation, Wrap				$ 76.03
NI	N/P		Following Parts Not .illustrated		Appelez-nous	-
