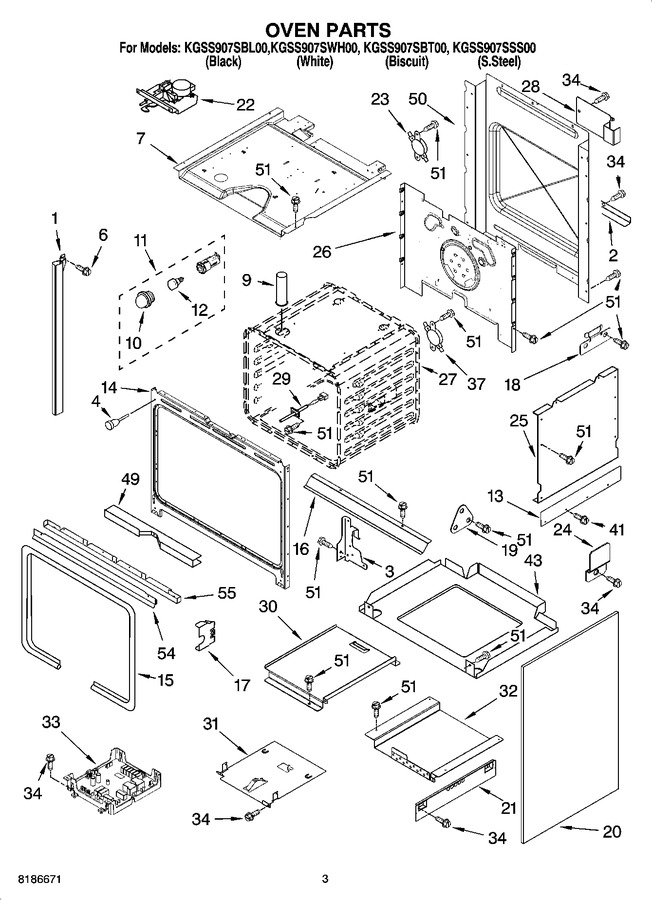

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10109570		Trim, Side Right (white)				$ 35.20
1	W10109550		Trim, Side (right Hand) (biscuit)		Appelez-nous	-
1	W10109540		Trim, Side Right (black)		Appelez-nous	-
1	W10109560		Trim, Side (right Hand) (s.steel)		Appelez-nous	-
1	W10109520		Trim, Side Left (white)				$ 37.28
1	W10109500		Trim, Side Left (biscuit)		Appelez-nous	-
1	W10109490		Trim, Side Left (black)				$ 35.09
1	W10109510		Trim, Side (left Hand) (s.steel)		Appelez-nous	-
2	8053971		Brace, Main Back				$ 7.82
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
4	W10105790		Bumper, Door   (Replaces: 9760749)				$ 7.41
6	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
7	8303099		Top Chassis				$ 70.97
9	9761666		Tube, Vent		Appelez-nous	-
10	W10067870		Lens, Light				$ 65.50
11	WPW10734065		Oven Light Assy   (Replaces: W10009930)				$ 101.46
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	9757732		Shield, Heat		Appelez-nous	-
14	WPW10115831		Frame, Front   (Replaces: 9760756)				$ 351.89
15	W11675844		Gasket, Door   (Replaces: W10074200)			Immediately	$ 74.56
16	W10105420		Deflector, Vent Bottom		Appelez-nous	-
17	4452152		Bracket, Mounting				$ 35.18
18	9757685		Guide, Side Panel				$ 36.23
19	9757461		Bracket, Side Panel				$ 37.11
20	9760723PB		Oven, Side Panel (black)		Appelez-nous	-
20	9760723PW		Oven, Side Panel (white)		Appelez-nous	-
20	9760723PC		Oven, Side Panel (biscuit)		Appelez-nous	-
21	9757811		Brace, Side Panel		Appelez-nous	-
22	WP9760889		Latch, Motorized   (Replaces: 9760888)			Immediately	$ 345.08
23	WP9757807		Thermostat Spst (230)   (Replaces: 9757807)			Immediately	$ 112.22
24	9759890		Clip, Side Panel				$ 9.71
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
26	9759762		Back, Chassis		Appelez-nous	-
28	9759945		Standoff, Rear				$ 58.51
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
30	9756454		Bracket, Goc				$ 68.50
31	9760223		Slide, Goc				$ 8.06
32	W10083460		Slide, Goc		Appelez-nous	-
33	9762774		Central, Appliance				$ 373.91
34	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
37	WP9759242		Thermostat (tod) (temp.) Spst 130c   (Replaces: 9759242)			Immediately	$ 85.57
41	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
43	W10110534		Base, Chassis				$ 138.23
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	9758583		Cover, Back				$ 215.30
51	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
54	9756481WH		Vent, Bottom Upper (white)		Appelez-nous	-
54	9756481SS		Vent, Bottom Upper (s. Steel)		Appelez-nous	-
54	9756481BL		Vent, Bottom Upper (black)		Appelez-nous	-
54	9756481BT		Vent, Bottom Upper (biscuit)		Appelez-nous	-
55	9756470		Insulation, Back				$ 68.08
55	W10104870		Trim, Btm Vent (s.steel)		Appelez-nous	-
55	9756817		Insulation, Wrap				$ 76.03
55	W10104910		Trim, Btm Vent (white)		Appelez-nous	-
55	W10104900		Trim, Btm Vent (biscuit)		Appelez-nous	-
55	W10104890		Trim, Btm Vent (black)		Appelez-nous	-
