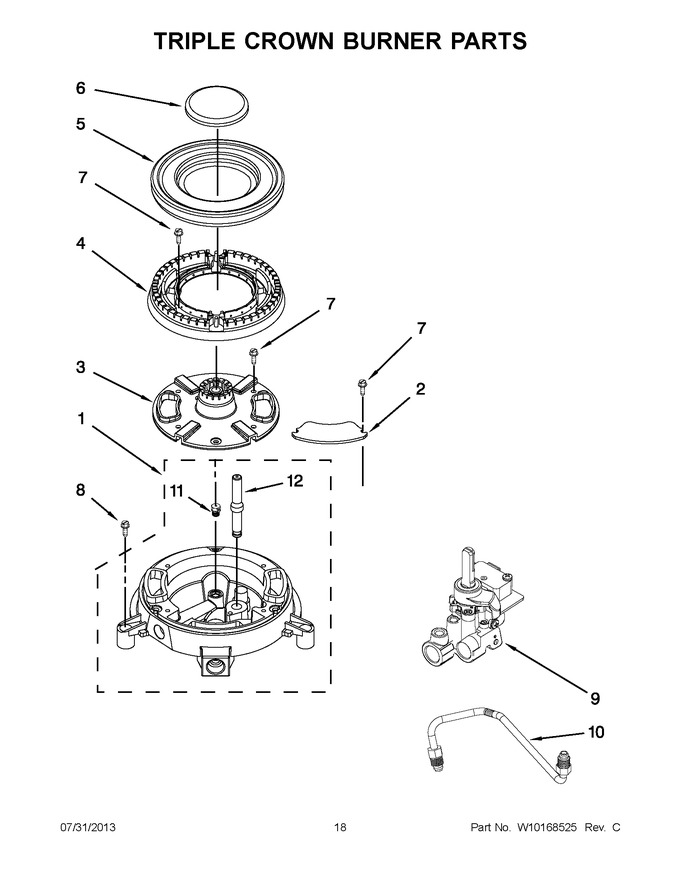

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9761639 | Assembly, Triple Crown Burner (Replaces: 9761639) |
|
$ 244.34 | |||||
| 2 | 8285250 | Plate, Closure |
|
$ 7.51 | |||||
| 3 | WP8285255 | Internal Head, Triple Crown Burner (Replaces: 8285255) |
|
Immediately | $ 138.98 | ||||
| 4 | WP8285256 | External Head, Triple Crown Burner (Replaces: 8285256) |
|
$ 142.30 | |||||
| 5 | 8285258 | Cap, Burner External (matte Black) |
|
$ 54.26 | |||||
| 5 | 8285258SN | Cap, Burner External (satin Moleskin) |
|
- | |||||
| 5 | WP8285258SD | Cap, Burner External (satin Cumberland) (Replaces: 8285258SD) |
|
$ 123.42 | |||||
| 6 | WP9758829SD | Cap, Burner Internal (satin Cumberland) (Replaces: 9758829SD) |
|
$ 116.33 | |||||
| 6 | WP9758829CB | Cap, Burner Internal (matte Black) (Replaces: 9758829CB) |
|
$ 56.60 | |||||
| 6 | 9758829SN | Cap, Burner Internal (satin Moleskin) |
|
- | |||||
| 7 | WP3400702 | Screw (Replaces: 3400702) |
|
$ 13.09 | |||||
| 8 | WP12990527 | Screw (Replaces: 3400843) |
|
Immediately | $ 8.76 | ||||
| 9 | 9760519 | Valve, Triple Crown Burner |
|
$ 149.60 | |||||
| 10 | 9761072 | Tube, Gas (triple Crown Burner) (outer) |
|
$ 125.24 | |||||
| 10 | 9761071 | Tube, Gas (triple Crown Burner) (inner) |
|
$ 73.09 | |||||
| 11 | 9762443 | Orifice (internal) |
|
$ 7.08 | |||||
| 11 | 9762442 | Orifice (external) |
|
$ 6.15 | |||||
| 12 | WP9763494 | Igniter (Replaces: 9763494) |
|
$ 79.19 |
