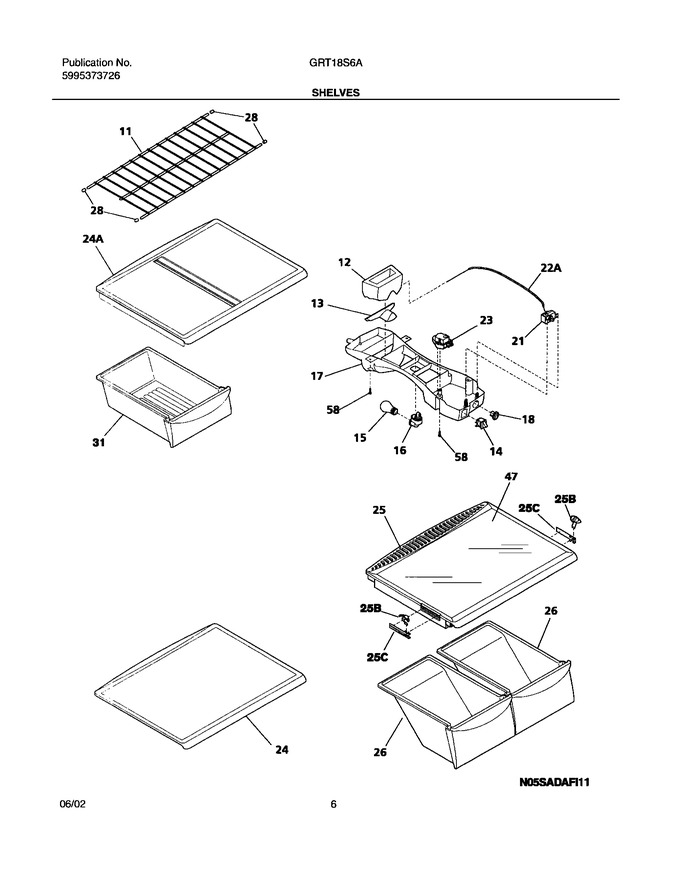

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358002		Shelf-freezer,full Width		Appelez-nous	-
12	240362502		Diffuser-air,top		Appelez-nous	-
13	240362601		Diffuser-air,bottom			Immediately	$ 46.46
15	316538904		Light Bulb/lamp,a-15 ,clear ,40 W ,120 V,miniature   (Replaces: 240436702)			Immediately	$ 22.75
17	240352701		Control Box		Appelez-nous	-
18	240360801		Knob-temp Control				$ 43.95
24	240358926		Shelf-``spill-safe``,sliding   (Replaces: 240358911)			Immediately	$ 143.52
25	240364736		Cover-crisper Pan		Appelez-nous	-
26	240337103		Pan-crisper,clear ,(2) ,no Graphics			Immediately	$ 164.83
28	3201150		End Cap,freezer Shelf ,protector				$ 4.57
31	240530811		Pan,meat Bin   (Replaces: 240530807)			Immediately	$ 150.86
47	240350671		Insert-pan Cover,glass		Appelez-nous	-
58	5304455650		Screw   (Replaces: 5308016566)				$ 15.75
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 67.73
24A	240358912		Shelf,spill-safe ,sliding ,w/pan Mtg Track				$ 178.19
25B	240361203		Knob,humidity Cont.		Appelez-nous	-
25C	5304492617		Damper,humidity Cont.   (Replaces: 240361301)			Immediately	$ 9.65
F14	240505801		Switch-light/lamp				$ 74.03
F16	241559801		Socket-light/lamp   (Replaces: 241500701)				$ 80.75
F21	241537103		Control-temperature   (Replaces: 5304421256)			Immediately	$ 80.34
F23	215846602		Timer,defrost ,60 Hz ,0.25 W ,120 V ,10 Hour/30 Min   (Replaces: 215846606)			Immediately	$ 31.33
NI	240388701		Wiring Harness,control Box			Immediately	$ 88.99
NI	5304455649		Screw   (Replaces: 5303001259)				$ 18.90
NI	5303299664		Spacer-shelf				$ 26.78
