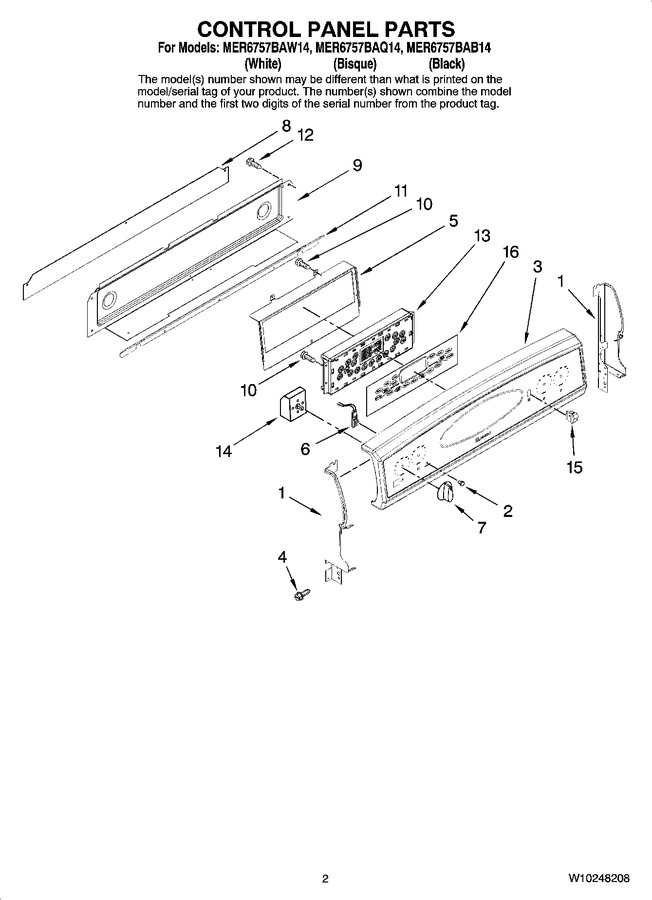

02 - Control Panel Parts


03 - Chassis Parts


04 - Upper Door Parts


05 - Lower Door Parts


06 - Rack And Element Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74010212		Support, Backguard (white Right)		Appelez-nous	-
1	74010201		Support, Backguard (black Right)		Appelez-nous	-
1	74010213		Support, Backguard (white Left)		Appelez-nous	-
1	74010202		Support, Backguard (black Left)		Appelez-nous	-
1	74010712		Support, Backguard (bisque Left)		Appelez-nous	-
1	74010714		Support, Backguard (bisque Right)		Appelez-nous	-
2	WP7730P011-60		Lens, Indicator   (Replaces: 7730P011-60)				$ 6.02
3	2602D367-88		Panel, Control (bisque)		Appelez-nous	-
3	2602D367-09		Panel, Control (black)		Appelez-nous	-
3	2602D367-81		Panel, Control (white)		Appelez-nous	-
4	WP98008545		Screw   (Replaces: 74009537)				$ 18.60
5	74009052		Bracket, Control		Appelez-nous	-
6	WP74004153		Light, Indicator   (Replaces: 74004153)			Immediately	$ 8.91
7	74008946		Knobs (4) (bisque)				$ 20.18
7	74008945		Knobs (4) (black)				$ 16.92
7	WP74008947		Knobs (4) (white)   (Replaces: 74008947)				$ 21.82
8	74009701		Shield, Sight		Appelez-nous	-
9	74010935		Cover, Rear Wire		Appelez-nous	-
10	WP74003976		Screw   (Replaces: 74003976)				$ 7.55
11	74009978		Shield, Wire		Appelez-nous	-
12	WP7101P434-60		Screw   (Replaces: 71001394)				$ 7.30
13	W10769079		Control, H3 (elec)   (Replaces: 74009992)				$ 509.51
14	WP7403P239-60		Switch, Infinite (rf)   (Replaces: 7403P239-60)			Immediately	$ 39.00
14	WP7403P238-60		Switch, Infinite (lr,rr)   (Replaces: 7403P238-60)			Immediately	$ 64.20
14	W10177711		Switch, Infinite (lf)				$ 76.37
15	7403P985-60		Switch, Rocker   (Replaces: 74010227)				$ 95.90
16	W10168438		Overlay (bisque)		Appelez-nous	-
16	W10168439		Overlay (black)		Appelez-nous	-
16	W10168437		Overlay (white)		Appelez-nous	-
