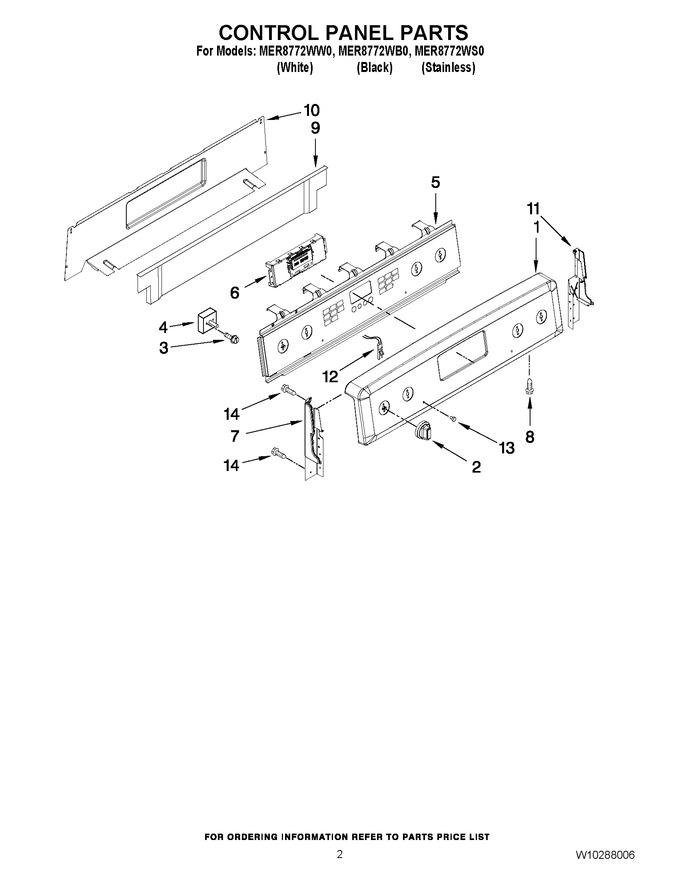

02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10097310		Panel, Backguard (stainless)				$ 116.84
1	W10097280		Panel, Backguard (black)				$ 119.25
1	W10097270		Panel, Backguard (white)				$ 118.50
2	W11193834		Knob, Control (black)   (Replaces: W10211372)				$ 88.98
2	WPW10211371		Knob, Control (white)   (Replaces: W10211371)			Immediately	$ 21.23
2	W10291145		Knob, Control (stainless)				$ 20.82
3	WP3400882		Screw, Switch   (Replaces: 3400882)			Immediately	$ 7.55
4	WPW10169580		Switch, Infinte (triple (rf))   (Replaces: W10169580)			Immediately	$ 231.01
4	5500-287		Switch, Infinte (lr & Rr)   (Replaces: 3148951)			Immediately	$ 52.39
4	WPW10149355		Switch, Infinte (dual (lf))   (Replaces: W10149355)			Immediately	$ 204.91
5	W10207497		Active Overlay (black)		Appelez-nous	-
5	W10214549		Active Overlay (stainless)				$ 345.21
5	W10207496		Active Overlay (white)				$ 296.24
6	W10157248		Control				$ 262.94
7	W10163969		End Cap, Left (black)				$ 34.61
7	W10163967		End Cap, Left (white)				$ 32.00
8	WP3196175		Screw   (Replaces: 3196175)			Immediately	$ 7.55
9	3604F381-19		Shield, Vent				$ 31.31
10	W10243038		Cover, Rear Wire				$ 49.02
11	W10163968		End Cap, Right (white)		Appelez-nous	-
11	W10163970		End Cap, Right (black)				$ 34.76
12	WP8523265		Light, Indicator   (Replaces: 8523265)			Immediately	$ 86.31
13	WP3196068		Lens, Light   (Replaces: 3196068)			Immediately	$ 6.26
14	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
