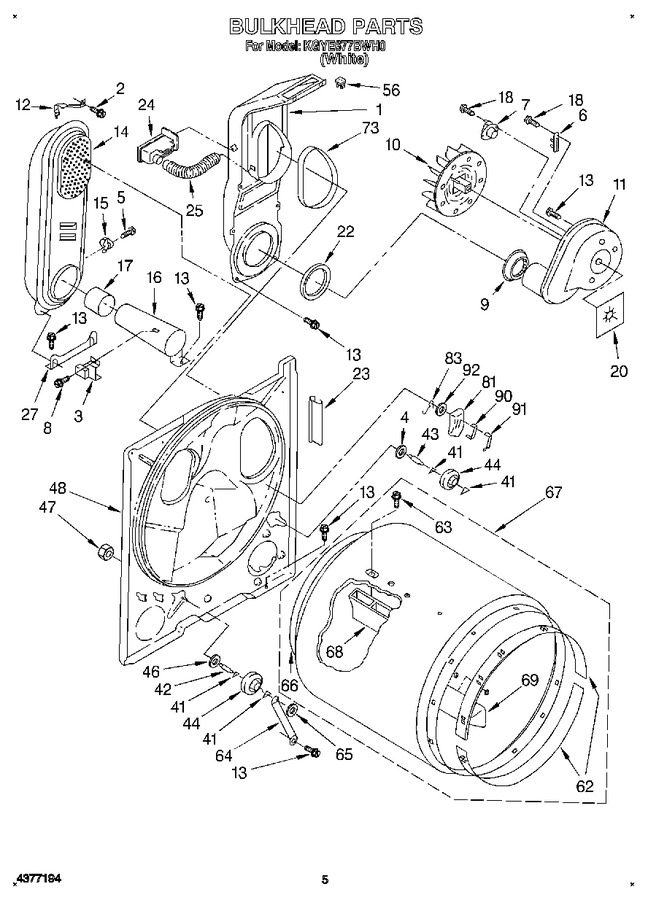

03 - Bulkhead
04 - 694670 Burner Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 686214 | Lint Chute Assembly |
|
- | |||||
| 2 | WP489463 | Screw, 8-18 X 3/4 (Replaces: 3400800) |
|
$ 8.25 | |||||
| 3 | WP338906 | Radiant, Sensor (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 4 | WP3388703 | Washer-support (Replaces: 3388703) |
|
$ 7.85 | |||||
| 5 | WP90767 | Screw, 8 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 6 | WP3392519 | Fuse, Thermal (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 7 | WP3387134 | Thermostat, Internal Bias (Replaces: 3387134) |
|
Immediately | $ 35.90 | ||||
| 8 | WP3390631 | Screw (Replaces: 339554) |
|
$ 8.25 | |||||
| 9 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 23.40 | |||||
| 10 | WP694089 | Wheel, Blower (Replaces: 694089) |
|
Immediately | $ 37.66 | ||||
| 11 | 695081 | Housing, Blower |
|
- | |||||
| 12 | 279771 | Clip (Replaces: 3398161) |
|
$ 15.05 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 14 | 279900 | Box, Heater (Replaces: 685458) |
|
$ 361.58 | |||||
| 15 | 660036 | Thermostat, 205 F (96 C) |
|
- | |||||
| 16 | 279900 | Funnel, Burner (Replaces: 347389) |
|
$ 361.58 | |||||
| 17 | 279900 | Collar, Funnel (Replaces: 348516) |
|
$ 361.58 | |||||
| 18 | WP965173 | Screw, 8-18 X 3/8 (Replaces: 695239) |
|
Immediately | $ 11.87 | ||||
| 20 | 3392123 | Seal, Blower |
|
- | |||||
| 22 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 19.14 | ||||
| 23 | 686889 | Pad, Cabinet |
|
- | |||||
| 24 | 690981 | Alert, Lint |
|
- | |||||
| 25 | 686577 | Hose, Differential |
|
- | |||||
| 27 | 348484 | Support, Box |
|
- | |||||
| 41 | WPW10512946 | Tri Ring (4) (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 3399506) |
|
Immediately | $ 72.71 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 3399507) |
|
Immediately | $ 47.30 | ||||
| 44 | WPW10314173 | Roller, Support (Replaces: 3396802) |
|
Immediately | $ 28.50 | ||||
| 46 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 7.55 | |||||
| 47 | WP3359452 | Nut, 3/8-16 (Replaces: 3359452) |
|
Immediately | $ 7.55 | ||||
| 48 | 685823 | Bulkhead |
|
- | |||||
| 56 | 98460 | Nut, Push-in (2) |
|
$ 12.07 | |||||
| 62 | 279441 | Ring, Bearing (2) (Replaces: 692526) |
|
Immediately | $ 66.22 | ||||
| 63 | WPW10109200 | Screw, 11-16 X 7/8 (Replaces: 97787) |
|
Immediately | $ 8.80 | ||||
| 64 | W11684613 | Bracket, Shaft (Replaces: 348944) |
|
$ 21.99 | |||||
| 65 | WP90296 | Clip (Replaces: 90296) |
|
$ 8.24 | |||||
| 66 | 279408 | Seal, Rear (Replaces: 347885) |
|
$ 73.58 | |||||
| 67 | W10899578 | Drum Assembly (Replaces: 695587) |
|
$ 375.53 | |||||
| 68 | WP692490 | Baffle, Drum (long) (2) (Replaces: 692490) |
|
$ 167.23 | |||||
| 69 | WP3403636 | Baffle, Drum (short) (1) (Replaces: 692491) |
|
$ 145.59 | |||||
| 73 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 9.06 | ||||
| 81 | 279366 | Pad, Sensor (Replaces: 348861) |
|
$ 100.64 | |||||
| 83 | WP342267 | Clip, Sensor (2) (Replaces: 342267) |
|
$ 8.14 | |||||
| 90 | WP348859 | Electrode, Inside (Replaces: 348859) |
|
$ 8.38 | |||||
| 91 | WP348860 | Electrode, Outside (Replaces: 348860) |
|
$ 8.45 | |||||
| 92 | WP298877 | Washer, Insulating (Replaces: 298877) |
|
$ 23.71 |
