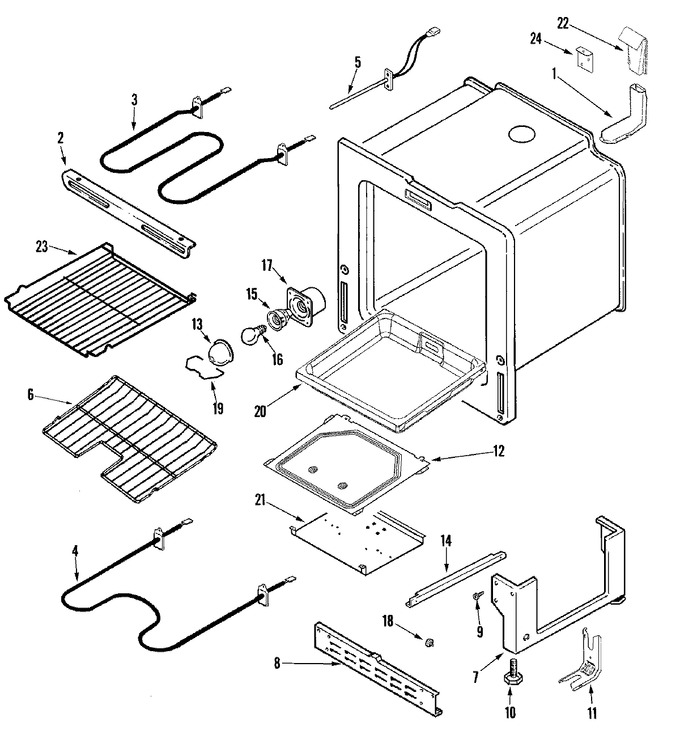

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 14.72
1	74003394		Vent Box Assembly	10	Appelez-nous	-
2	74003386		Support, Broil Element	10	Appelez-nous	-
3	WPW10310249		Element, Broil (4 Pass)   (Replaces: 74003041)	10		Immediately	$ 124.81
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 14.72
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 14.72
4	WP7406P438-60		Element, Bake   (Replaces: 74011047)	10			$ 187.72
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 14.72
5	12001656		Sensor, Oven (long)   (Replaces: 74004943)	10		Immediately	$ 43.94
6	74009527		Rack, Smart & Easy (30``)	10	Appelez-nous	-
7	74006325		Pedestal, Side	10	Appelez-nous	-
8	4020F001-80		Pedestal, Front/rear	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 14.72
10	W11665456		Leg, Leveling   (Replaces: 74002373)	10		Immediately	$ 29.52
11	WP3801F656-51		Bracket, Anti-tip   (Replaces: 74005564)	10		Immediately	$ 6.11
11	WP7101P485-60		Screw   (Replaces: 7101P352-60)	10			$ 30.72
12	74006522		Retainer, Insulation (bottom)	10	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 14.72
13	74003389		Cover, Bulb	10	Appelez-nous	-
14	74003642		Lining, Door	10	Appelez-nous	-
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 14.72
14	74011456		Lining, Door	13	Appelez-nous	-
14	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 11.74
14	74003565		Runner, Drawer	10	Appelez-nous	-
15	74003387		Receptacle, Bulb	10			$ 5.84
15	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 86.23
16	74009685		Panel, Drawer (blk)	10	Appelez-nous	-
16	8009		Bulb-oven   (Replaces: 7407P103-60)	10		Immediately	$ 18.67
17	WP98008545		Screw (blk)   (Replaces: 74009537)	10			$ 18.60
18	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.65
19	WP7101P072-60		Screw, Panel   (Replaces: 74004310)	10			$ 8.06
20	74008337		Drawer, Storage	10			$ 171.37
21	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 11.06
25	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 7.32
