SELECT A DIAGRAM

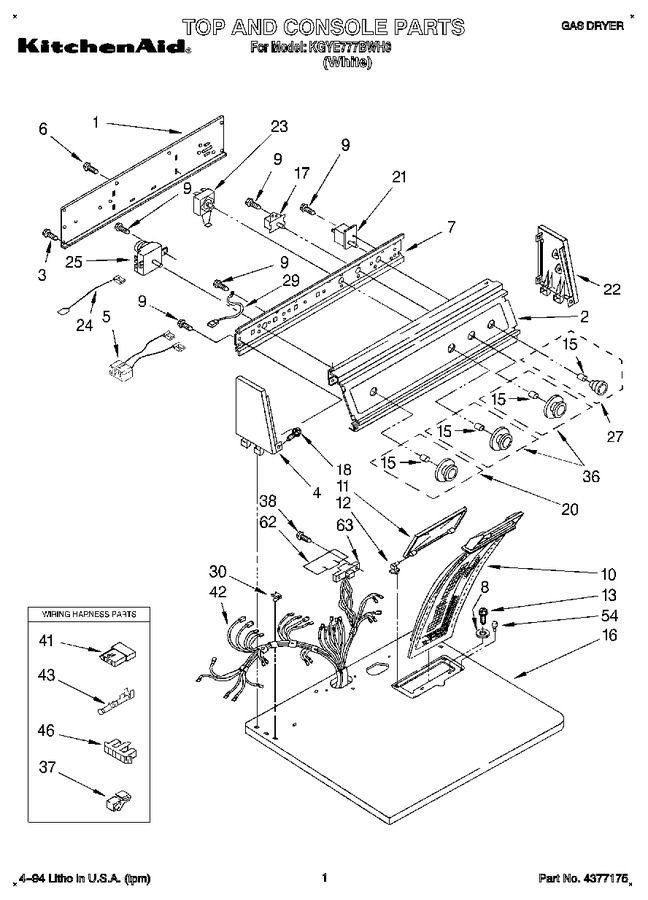

01 - Top And Console, Lit/optional


02 - Cabinet


03 - Bulkhead


04 - 694670 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3399179		Panel, Rear Console		Appelez-nous	-
2	3362009		Panel, Control		Appelez-nous	-
3	WP489069		Screw, Hex Head   (Replaces: 693994)			Immediately	$ 7.86
4	3360570		End Cap (l.h.)		Appelez-nous	-
5	3396030		Wire-jumper Assembly		Appelez-nous	-
6	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
7	3396293		Bracket, Control		Appelez-nous	-
8	237446		Washer		Appelez-nous	-
9	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 37.21
11	691200		Cover, Lint Screen (white)		Appelez-nous	-
12	WPW10044470		Hinge, Cover (r.h.)   (Replaces: 691193)				$ 7.72
12	WPW10044480		Hinge, Cover (l.h.)   (Replaces: 691194)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
15	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.81
16	3399162		Top (white)		Appelez-nous	-
17	3394983		Buzzer, Adjustable		Appelez-nous	-
18	WP388326		Screw, Console   (Replaces: 3353145)				$ 8.11
20	3396267		Knob, Timer		Appelez-nous	-
21	3395395		Switch, Push-to-start				$ 120.62
22	3360567		Cap, End (r.h.)		Appelez-nous	-
23	WP3399640		Switch, Temperature   (Replaces: 3396014)				$ 129.76
24	3393818		Wire, Jumper		Appelez-nous	-
25	3398139		Timer, 60hz.		Appelez-nous	-
27	3396276		Knob, Push-to-start		Appelez-nous	-
29	690853		Wire, Ground		Appelez-nous	-
30	WP357213		Nut,push-in   (Replaces: 357213)				$ 7.39
36	3363437		Knob, Control (2)		Appelez-nous	-
37	689180		Clip		Appelez-nous	-
38	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.82
41	691707		Connector		Appelez-nous	-
42	3396234		Harness, Gas		Appelez-nous	-
43	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
46	3397269		Connector, Timer				$ 25.55
54	297535		Bumper, Lint Lid		Appelez-nous	-
62	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 314.22
63	3391885		Connector, Edge				$ 86.40
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350941		Leveler (thinner)		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	LIT3399498		Label, Wiring Diagram		Appelez-nous	-
	LIT3388652		Label, Operating Instructions		Appelez-nous	-
	LIT3392988		Guide, Use & Care		Appelez-nous	-
	LIT3387320		Guide, Dryer		Appelez-nous	-
	LIT3395306		Instructions, Installation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
