Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 7801P173-60 Rack, Oven Special Order $ 55.72

2 WP3405F037-80 Drawer, Storage   (Replaces: 3405F033-80) Special Order $ 355.81

3 WP98008545 Screw (black)   (Replaces: 7101P633-60) Special Order $ 18.60

3 WP98008544 Screw (white)   (Replaces: 7101P636-60) Special Order $ 13.87

4 3801F887-51 Bracket, Drawer Special Order $ 8.32

5 2416F059-71 Panel, Drawer (white) Special Order $ 87.92

5 2416F059-70 Panel, Drawer (black) Special Order $ 120.99

6 W11233072 Screw   (Replaces: 7101P634-60) In-Stock Immediately $ 14.72

7 WPW10131078 Nut, Lock   (Replaces: 7103P139-60) Special Order $ 4.65

8 2404F030-51 Lining, Drawer Appelez-nous -
9 WP74005546 Spacer, Rubber   (Replaces: 8010P130-60) Special Order $ 11.06

10 WP74004078 Roller, Drawer   (Replaces: 8014P022-60) In-Stock Immediately $ 12.48

11 7118P032-60 Shaft, Roller Appelez-nous -
12 WP488130 Nut   (Replaces: 7103P082-60) Special Order $ 7.32

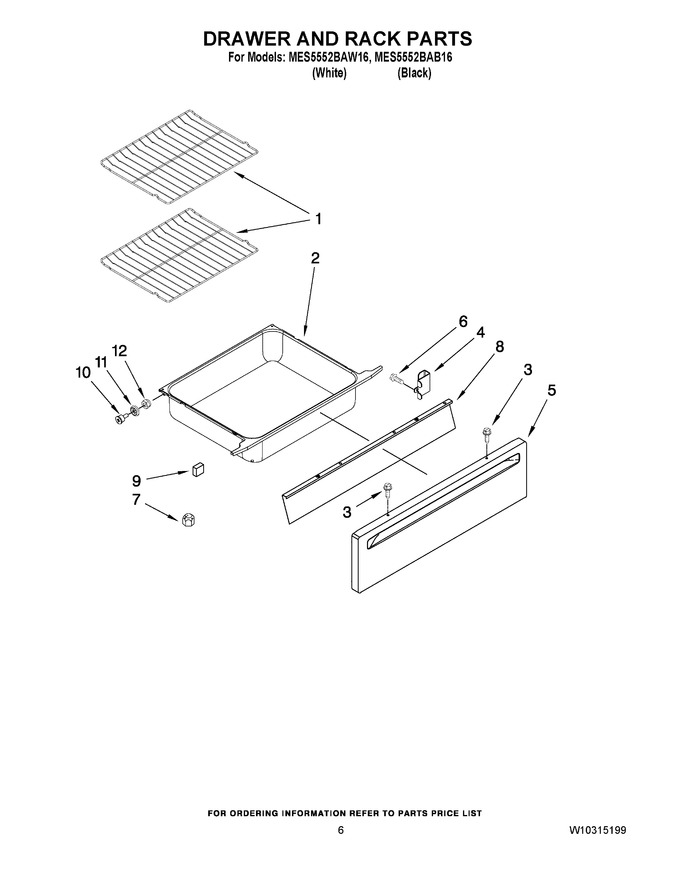

    View Diagram in Separate Window     Print Icon   Print Part List
