SELECT A DIAGRAM

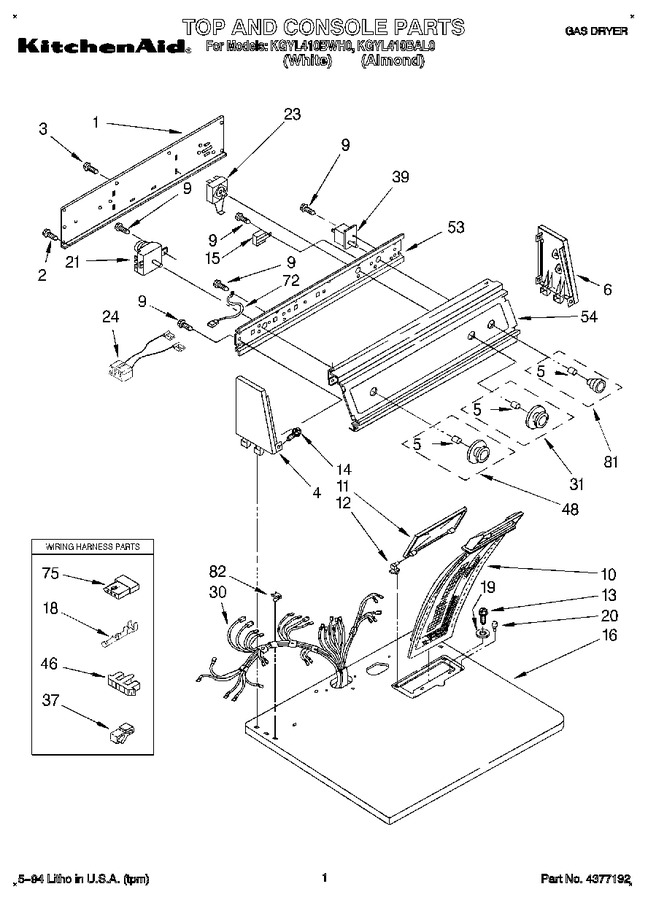

01 - Top And Console, Lit/optional


02 - Cabinet


03 - 694670 Burner Assembly


04 - Bulkhead


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3399179		Panel, Rear Console		Appelez-nous	-
2	WP489069		Screw, 10-16 X 1/2   (Replaces: 693994)			Immediately	$ 7.86
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
4	3360571		Cap, End (l.h.)		Appelez-nous	-
5	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.81
6	3360568		Cap, End (r.h.)		Appelez-nous	-
9	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
10	339392V		Screen, Lint   (Replaces: 337448)			Immediately	$ 41.91
11	691201		Cover, Lint Screen (almond)		Appelez-nous	-
11	691200		Cover, Lint Screen (white)		Appelez-nous	-
12	WPW10044470		Hinge, R.h.   (Replaces: 691193)				$ 7.72
12	WPW10044480		Hinge, L.h.   (Replaces: 691194)				$ 7.72
13	W11693756		Screw, 8-15 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	WP388326		Screw, Console   (Replaces: 64211)				$ 8.11
15	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
16	3399162		Top (white)		Appelez-nous	-
16	3399163		Top (almond)		Appelez-nous	-
18	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
19	237446		Washer		Appelez-nous	-
20	297535		Bumper, Lint Lid		Appelez-nous	-
21	3398138		Timer Assembly, 60 Hz.		Appelez-nous	-
23	3354281		Switch, Temperature		Appelez-nous	-
24	8283286		Wire Jumper Assembly   (Replaces: 3396028)		Appelez-nous	-
30	3396651		Harness, Wiring		Appelez-nous	-
31	3363041		Knob, Temperature Control		Appelez-nous	-
37	689180		Clip		Appelez-nous	-
39	3395395		Relay, Push-to-start				$ 120.62
46	3397269		Connector, Timer				$ 25.55
48	3396269		Timer Knob & Clip		Appelez-nous	-
53	3396293		Bracket, Control		Appelez-nous	-
54	3362003		Panel, Control		Appelez-nous	-
72	690853		Wire, Ground		Appelez-nous	-
75	691707		Receptacle, 3-way		Appelez-nous	-
81	3390054		Knob, Push To Start		Appelez-nous	-
82	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
	LIT3388652		Label, Operating Instructions		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
	LIT3392986		Guide, Use & Care		Appelez-nous	-
	LIT3395306		Instructions, Installation		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 51.44
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350941		Leveler (thinner)		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	LIT3387320		Guide, Dryer		Appelez-nous	-
	LIT3399496		Label, Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
