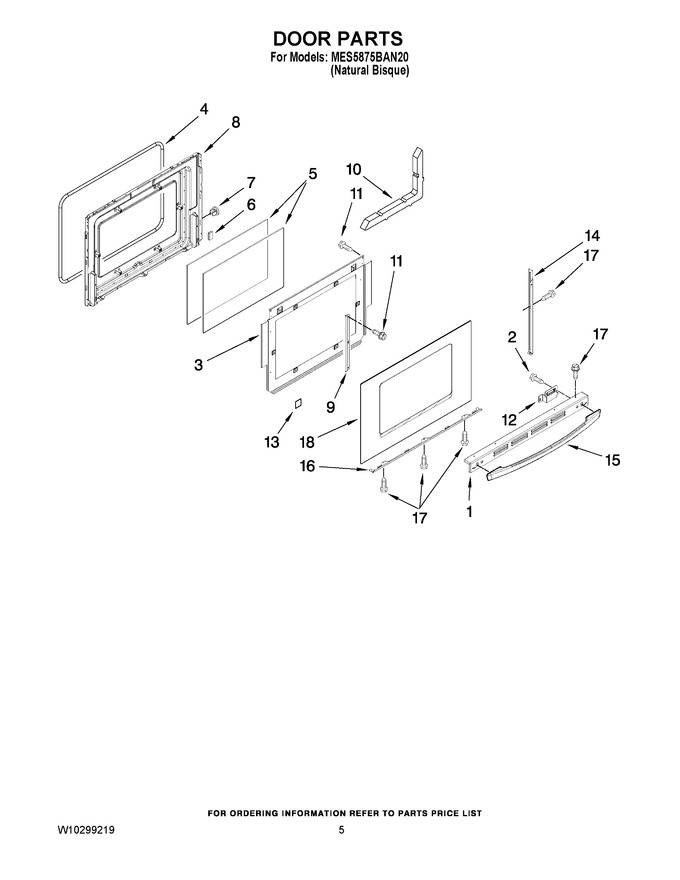

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3608F141-78 | Trim, Door Top |
|
- | |||||
| 2 | WP74006515 | Screw, Handle (2) (Replaces: 7101P681-60) |
|
$ 8.84 | |||||
| 3 | 3601F373-51 | Baffle, Retainer |
|
$ 284.93 | |||||
| 4 | WPW10162384 | Seal, Door (Replaces: W10162384) |
|
Immediately | $ 86.23 | ||||
| 5 | 74003645 | Glass, Inner (2) (Replaces: 7902P436-60) |
|
Immediately | $ 180.59 | ||||
| 6 | WP74005546 | Spacer, Rubber (Replaces: 8010P130-60) |
|
$ 11.06 | |||||
| 7 | WP74001574 | Nut, Snap (4) (Replaces: 7103P141-60) |
|
Immediately | $ 11.74 | ||||
| 8 | 2402W312-19 | Lining, Door |
|
$ 144.50 | |||||
| 9 | 3801F886-51 | Bracket, Glass (2) |
|
$ 38.25 | |||||
| 10 | 7002P246-60 | Insulation, Door |
|
$ 58.49 | |||||
| 11 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 12 | 3801F832-45 | Bracket, Handle (left) |
|
$ 22.30 | |||||
| 12 | 3801F831-45 | Bracket, Handle (right) |
|
$ 22.37 | |||||
| 13 | 8010P152-60 | Spacer, Rubber |
|
- | |||||
| 14 | 3608F116-78 | Trim, Door Side (right) |
|
- | |||||
| 14 | 3608F117-78 | Trim, Door Side (left) |
|
$ 49.72 | |||||
| 15 | WP74011778 | Handle, Door (Replaces: 7701P518-60) |
|
$ 264.02 | |||||
| 16 | 3807F708-78 | Trim, Door Bottom |
|
$ 65.47 | |||||
| 17 | WP98008545 | Screw, Trim (Replaces: 7101P633-60) |
|
$ 18.60 | |||||
| 18 | 7902P737-60 | Panel, Outer Door |
|
- |
