SELECT A DIAGRAM

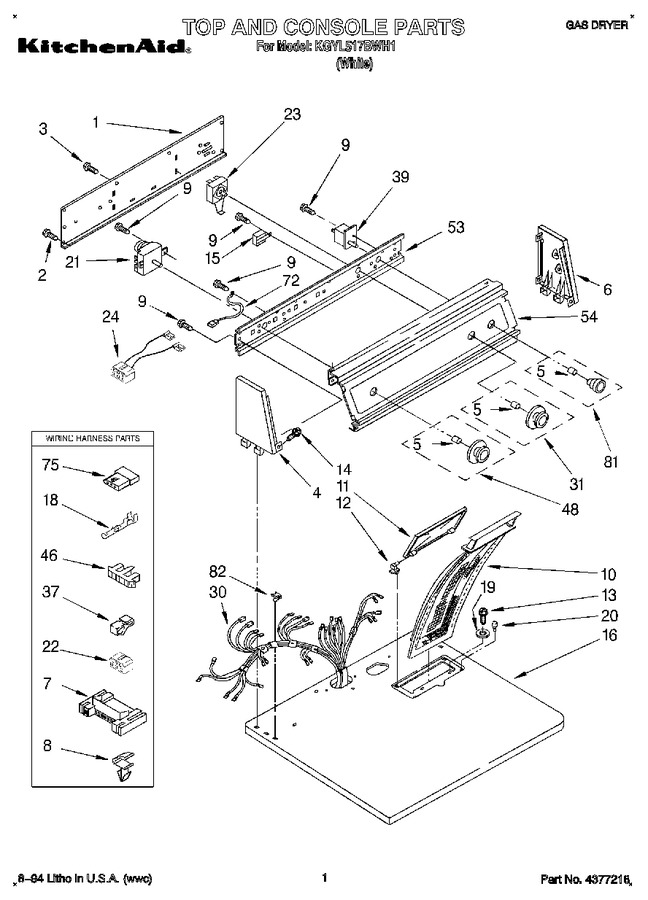

01 - Top And Console, Lit/optional


02 - Cabinet


03 - 694670 Burner Assembly


04 - Bulkhead


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3399179		Panel, Rear Console		Appelez-nous	-
2	WP489069		Screw, 10-16 X 1/2   (Replaces: 693994)			Immediately	$ 8.40
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
4	3360570		Cap, End (l.h.)		Appelez-nous	-
5	WP688805		Clip   (Replaces: 688805)			Immediately	$ 8.20
6	3360567		Cap, End (r.h.)		Appelez-nous	-
7	3395683		Connector, Housing			Immediately	$ 54.45
8	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
9	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
10	339392V		Screen, Lint   (Replaces: 339392)			Immediately	$ 41.91
11	691200		Cover, Lint Screen (white)		Appelez-nous	-
12	WPW10044470		Hinge, R.h.   (Replaces: 691193)				$ 8.11
12	WPW10044480		Hinge, L.h.   (Replaces: 691194)				$ 8.11
13	W11693756		Screw, 8-15 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	WP388326		Screw, Console   (Replaces: 3353145)				$ 9.29
15	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
16	3399162		Top (white)		Appelez-nous	-
18	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
19	237446		Washer		Appelez-nous	-
20	297535		Bumper, Lint Lid		Appelez-nous	-
21	3398138		Timer Assembly, 60 Hz.		Appelez-nous	-
22	3347243		Connector 6-circuit		Appelez-nous	-
23	WP3399640		Switch, Temperature   (Replaces: 3396014)				$ 136.25
24	3396030		Wire-jumper Assembly		Appelez-nous	-
30	3399664		Harness, Wiring		Appelez-nous	-
31	3363437		Knob, Temperature Control		Appelez-nous	-
37	689180		Clip		Appelez-nous	-
39	3395395		Relay, Push-to-start				$ 120.62
46	3397269		Connector, Timer				$ 25.55
48	3396267		Timer Knob & Clip		Appelez-nous	-
53	3396293		Bracket, Control		Appelez-nous	-
54	3362005		Panel, Control		Appelez-nous	-
72	690853		Wire, Ground		Appelez-nous	-
75	691707		Receptacle, 3-way		Appelez-nous	-
81	3396276		Knob, Push-to-start		Appelez-nous	-
82	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
	LIT3387320		Guide, Dryer		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	LIT3399496		Label, Wiring Diagram		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	LIT3392986		Guide, Use & Care		Appelez-nous	-
	LIT3395306		Instructions, Installation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
