SELECT A DIAGRAM

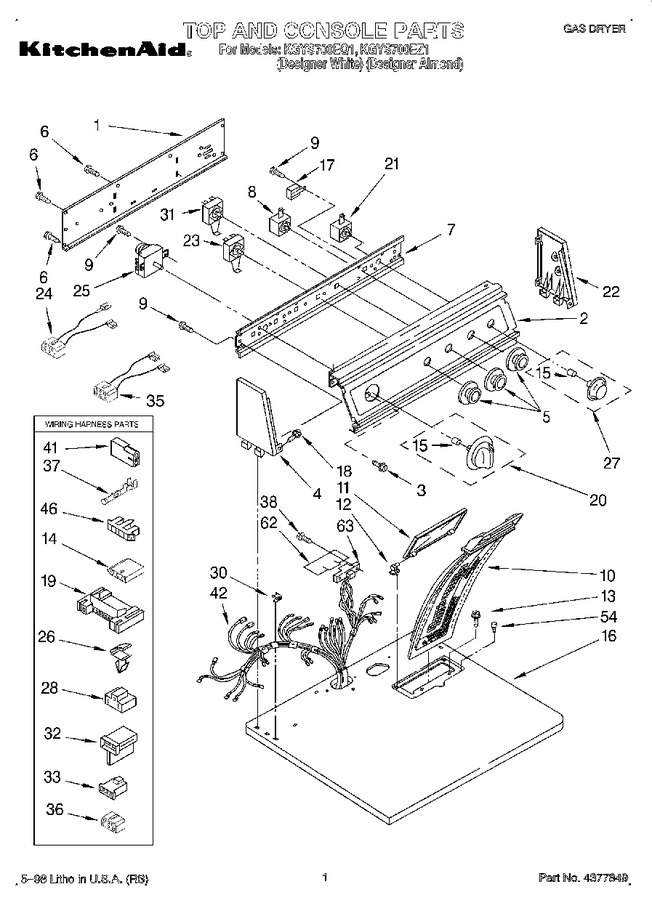

01 - Top And Console, Lit/optional


02 - Cabinet


03 - Bulkhead


04 - 3402844 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3394170		Panel, Rear Console		Appelez-nous	-
2	3976716		Panel, Control (white)		Appelez-nous	-
2	3976717		Panel, Control (almond)		Appelez-nous	-
3	3400859		Screw, Ground 8-18 X 7/32				$ 13.22
4	3360572		End Cap (l.h.) (almond)		Appelez-nous	-
4	3360570		End Cap (l.h.) (white)		Appelez-nous	-
5	3949701		Knob, Control (almond Model)		Appelez-nous	-
5	3949700		Knob, Control (white)		Appelez-nous	-
6	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
7	8054298		Bracket, Control		Appelez-nous	-
8	3399638		Switch, Signal				$ 129.75
9	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 37.21
11	691201		Cover, Lint Screen (almond)		Appelez-nous	-
11	691200		Cover, Lint Screen (white)		Appelez-nous	-
12	WPW10044480		Hinge, Cover (l.h.)   (Replaces: 691194)				$ 7.72
12	WPW10044470		Hinge, Cover (r.h.)   (Replaces: 691193)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	3936144		Connector (door Switch)				$ 20.21
15	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.81
16	3406037		Top (almond)		Appelez-nous	-
16	3406036		Top (white)		Appelez-nous	-
17	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
18	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
19	3395683		Connector, Housing			Immediately	$ 51.86
20	3405300		Knob, Timer (almond)		Appelez-nous	-
20	3405299		Knob, Timer (white)				$ 24.31
21	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
22	3360567		End Cap (r.h.) (white)		Appelez-nous	-
22	3360569		End Cap (r.h.) (almond)		Appelez-nous	-
23	WP3405156		Switch, Finish Guard   (Replaces: 3354285)				$ 145.51
24	3401695		Wire, Jumper (tan/black)		Appelez-nous	-
24	3401696		Wire, Jumper (white/yellow)		Appelez-nous	-
25	3976581		Timer, 60hz.				$ 184.19
26	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
27	3405992		Knob, Push To Start (white)		Appelez-nous	-
27	3405993		Knob, Push To Start (almond)		Appelez-nous	-
28	3401144		Connector, (pts Relay)				$ 12.20
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
31	WP3399640		Switch, Temperature   (Replaces: 3399640)				$ 129.76
32	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
33	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
35	3396030		Wire, Jumper (temperature)		Appelez-nous	-
36	3347243		Connector 6-circuit		Appelez-nous	-
37	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
38	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
41	717252		Receptacle, 2 Way		Appelez-nous	-
42	3394309		Harness, Gas		Appelez-nous	-
46	3397269		Connector, Timer				$ 25.55
54	297535		Bumper, Lint Lid		Appelez-nous	-
62	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 314.22
63	3391885		Connector, Edge				$ 86.40
	LIT3405338		Instructions, Installation		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	LIT3406681		Wiring Diagram		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 51.44
	978883		Almond (uncut)		Appelez-nous	-
	LIT3405632		Guide, Use & Care		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
