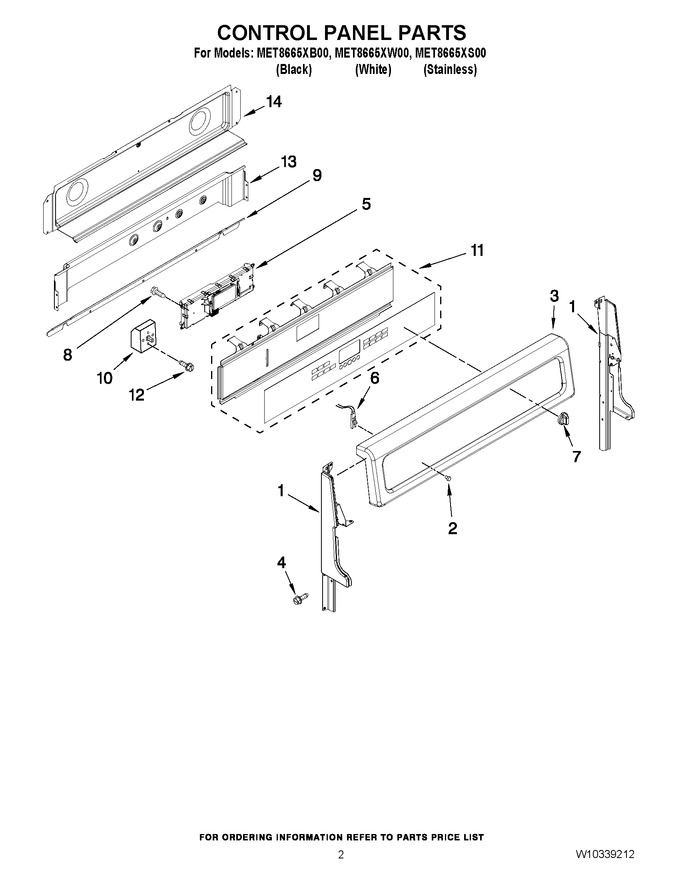

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319109		Support, Backguard (black, Left)				$ 88.42
1	W10319111		Support, Backguard (black, Right)				$ 43.80
1	W10319112		Support, Backguard (white, Right)				$ 89.32
1	W10319110		Support, Backguard (white, Left)				$ 91.38
2	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
3	W10097270		Console (white)				$ 118.50
3	W10097280		Console (black)				$ 119.25
3	W10097310		Console (stainless)				$ 116.84
4	WP98008545		Screw   (Replaces: 7101P633-60)				$ 17.71
5	W10206266		Electric, Control		Appelez-nous	-
6	WP74004153		Light, Indicator   (Replaces: 7407P136-60)			Immediately	$ 8.91
7	W10294796		Knob (black)				$ 20.03
7	W10294794		Knob (white)				$ 20.03
8	W10294791		Screw (stainless)				$ 43.17
8	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.19
9	WPW10299338		Shield, Wire   (Replaces: W10299338)				$ 92.00
10	WP74010824		Switch, Infinite (rf/lf)   (Replaces: 7450P011-60)			Immediately	$ 112.13
10	WPW10295048		Switch, Infinite (rr)   (Replaces: W10295048)			Immediately	$ 152.33
10	WP7403P238-60		Switch, Infinite (lr)   (Replaces: 7403P373-60)			Immediately	$ 64.20
11	W10321789		Assy., Membrane (incl. Bracket) (white)				$ 215.20
11	W10321787		Assy., Membrane (incl. Bracket) (black)			Immediately	$ 198.23
11	W10321788		Assy., Membrane (incl. Bracket) (stainless)				$ 159.01
12	WP7101P309-60		Screw   (Replaces: 7101P309-60)			Immediately	$ 6.95
13	W10278697		Shield, Vent			Immediately	$ 174.60
14	W10296773		Cover, Backguard				$ 185.26
