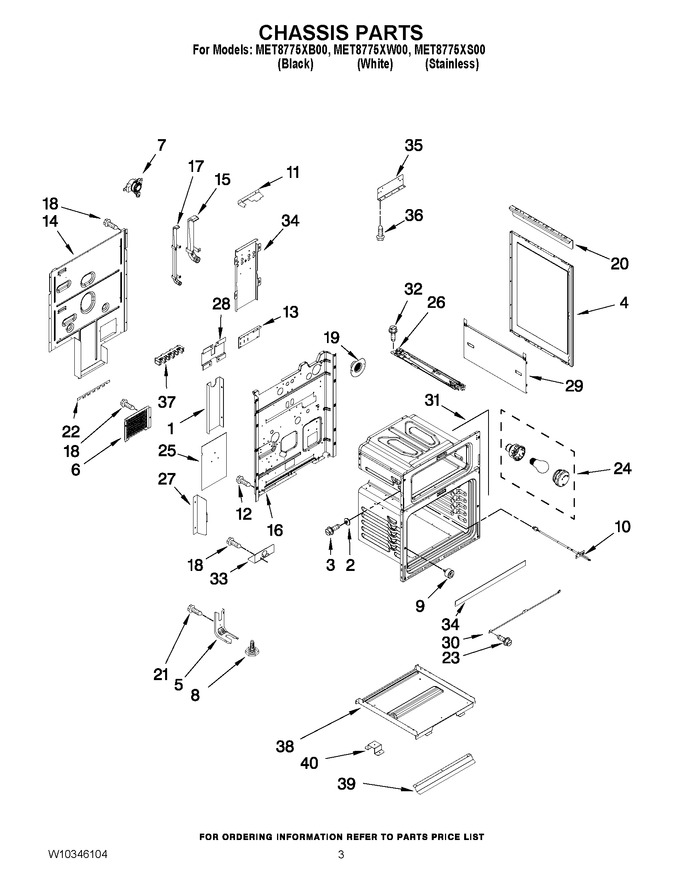

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10332459		Shield, Heat		Appelez-nous	-
2	WPW10237689		Spacer, Side Panel   (Replaces: W10237689)				$ 79.83
3	WPW10267456		Screw, Shoulder   (Replaces: W10267456)				$ 7.52
4	W10260942		Panel, Side (black)		Appelez-nous	-
4	WPW10330376		Panel, Side (white)   (Replaces: W10260943)				$ 207.46
5	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 5.21
6	W10312612		Cover, Access (terminal Block)   (Replaces: W10315657)				$ 123.26
7	WP7403P899-60		Switch, Hi-limit (170 F/280 F)   (Replaces: 7403P899-60)			Immediately	$ 201.43
8	W11665456		Foot, Leveler (4)   (Replaces: 7101P507-60)			Immediately	$ 28.11
9	W10105790		Screw, Bumper				$ 7.06
10	WP7430P044-60		Probe, Sensor   (Replaces: 7430P044-60)			Immediately	$ 175.94
11	W10268559		Cover, Lower Wire		Appelez-nous	-
12	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
13	W10332449		Shield, Cord				$ 69.90
14	WPW10261386		Cover, Main Wire   (Replaces: W10261386)				$ 185.43
15	W10337391		Tube, Vent (upper)   (Replaces: W10323792)				$ 68.82
16	W10668730		Back, Main   (Replaces: W10260583)			Immediately	$ 217.85
17	WPW10323793		Tube, Vent (lower)   (Replaces: W10323793)				$ 109.38
18	WP4449743		Screw   (Replaces: 4449743)				$ 7.19
19	W10322408		Adapter (vent Tube)				$ 122.89
20	W10319087		Bracket, End Post Support   (Replaces: W10319084)				$ 79.14
21	WP7101P485-60		Screw   (Replaces: 7101P485-60)				$ 29.26
22	8036P012-60		Shield, Pwr Cord				$ 34.70
23	WP98008545		Screw   (Replaces: 7101P633-60)				$ 17.71
24	W10323374		Assembly, Light				$ 44.40
25	W10311987		Shield, Cord (rh)		Appelez-nous	-
26	W10204100		Lock, Door (lower)		Appelez-nous	-
26	W10883049		Lock, Door (upper)   (Replaces: W10331119)			Immediately	$ 306.46
27	W10268560		Cover, Wire Lower Rh				$ 69.57
28	7003P104-60		Insulator, Heat Shield		Appelez-nous	-
29	WPW10253471		Shield, Side Insul   (Replaces: W10253471)				$ 152.04
30	W10299886		Trim, Kickplate				$ 88.08
31	WPW10269069		Gasket, Oven Door ()lower   (Replaces: W10269069)			Immediately	$ 181.71
31	W10337392		Gasket, Oven Door (upper)   (Replaces: W10249984)			Immediately	$ 149.24
32	74003975		Screw (door Lock)   (Replaces: 7101P375-60)				$ 13.36
33	W10190166		Bracket, Pwr Sply				$ 9.24
34	W10261388		Bracket, Terminal				$ 69.85
35	W10328265		Bracket, Support (spark Module)		Appelez-nous	-
36	W10828565		Screw   (Replaces: 7101P635-60)				$ 7.44
37	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)			Immediately	$ 35.17
38	W10548601		Pan, Element   (Replaces: W10253469)				$ 147.60
39	W10253470		Bracket, Retaining				$ 77.28
40	W10260545		Clip, Retaining				$ 13.16
NI	WPW10322111		Insulation, Upper (back (full Length))   (Replaces: W10322111)				$ 132.95
NI	WPW10271637		Insulation, Floor   (Replaces: W10271637)				$ 106.17
NI	WPW10204079		Insulation, Lower (middle)   (Replaces: W10204079)				$ 113.07
NI	W11685361		Insulation, Lower (main Front Strip)   (Replaces: W10204085)				$ 33.85
NI	W10308393		Insulation, Upper (wrapper)				$ 78.00
NI	W11684900		Insulation, Hidden Bake Pouch   (Replaces: W10272326)				$ 32.98
