01 - Top And Console, Lit/optional

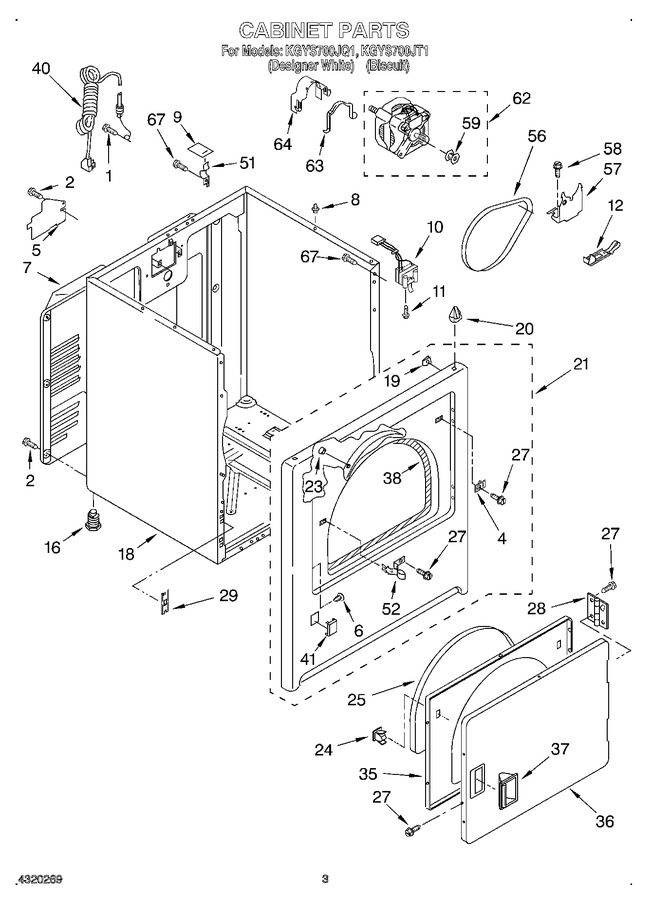

02 - Cabinet
03 - Bulkhead
04 - 8318272 Burner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP33001882 | Screw, 8-18 X 1/2 (Replaces: 337686) |
|
$ 79.72 | |||||
| 2 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 4 | 3403632 | Plug, Strike Hole (biscuit) |
|
- | |||||
| 4 | WP3403630 | Plug, Strike Hole (white) (Replaces: 3403630) |
|
$ 7.53 | |||||
| 5 | W11539855 | Cover, Block Terminal (Replaces: 3396795) |
|
Immediately | $ 599.76 | ||||
| 6 | WP3404413 | Plug, Hinge Hole (white) (Replaces: 3404413) |
|
Immediately | $ 7.95 | ||||
| 6 | 3404415 | Plug, Hinge Hole (biscuit) |
|
- | |||||
| 7 | 280043 | Panel, Rear (Replaces: 3396805) |
|
$ 341.30 | |||||
| 8 | 98669 | Locator, Top |
|
$ 12.03 | |||||
| 9 | 18849 | Pad, Top Hinge |
|
$ 20.14 | |||||
| 10 | WP3406107 | Door, Switch Assembly (Replaces: 3406107) |
|
Immediately | $ 31.20 | ||||
| 11 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 7.70 | |||||
| 12 | WP691366 | Idler & Slide Assembly (Replaces: 3394332) |
|
Immediately | $ 22.47 | ||||
| 16 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| 16 | 49621 | Foot, Plastic Dryer (4) (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 18 | 3399595 | Cabinet (biscuit (includes Illus. Nos. 5, 7,16, 29 & 57)) |
|
- | |||||
| 18 | 3399585 | Cabinet (white) |
|
- | |||||
| 19 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 11.39 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 18776) |
|
Immediately | $ 12.68 | ||||
| 21 | 3403437 | Front, Panel Assembly (biscuit) |
|
- | |||||
| 21 | 3403447 | Front Panel Assembly (white) |
|
- | |||||
| 23 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 20.65 | |||||
| 24 | 279570 | Catch, Door (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 25 | W10861521 | Seal, Door (Replaces: 3405246) |
|
Immediately | $ 58.69 | ||||
| 27 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 7.57 | |||||
| 28 | WPW10362431 | Hinge, Door (Replaces: 3405514) |
|
Immediately | $ 7.91 | ||||
| 29 | W10854425 | Clip, Front Panel (Replaces: 3394083) |
|
Immediately | $ 15.56 | ||||
| 35 | WP3402341 | Door, Rear (Replaces: 3402341) |
|
$ 198.77 | |||||
| 36 | W10861227 | Door, Front (white) (Replaces: 3402335) |
|
$ 256.44 | |||||
| 36 | 3402337 | Door, Front (biscuit) |
|
- | |||||
| 37 | WP3405184 | Handle, Door (white) (Replaces: 3405184) |
|
$ 76.01 | |||||
| 37 | WP3405189 | Handle, Door (biscuit) (Replaces: 3405189) |
|
$ 86.72 | |||||
| 38 | W11035878 | Seal & Bearing Assembly (Replaces: 3406129) |
|
Immediately | $ 78.78 | ||||
| 40 | W11222083 | Cord, Power (Replaces: 344020) |
|
$ 120.59 | |||||
| 41 | 3394978 | Plug, Front Panel (biscuit) |
|
- | |||||
| 41 | 3394975 | Plug-panel Front (white) |
|
$ 5.70 | |||||
| 51 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.82 | |||||
| 52 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 20.99 | ||||
| 56 | 341241 | Belt, Drive (Replaces: 8066065) |
|
Immediately | $ 18.15 | ||||
| 57 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 121.57 | ||||
| 58 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 13.37 | ||||
| 59 | WP8066184 | Pulley, Motor (Replaces: 3394341) |
|
Immediately | $ 51.02 | ||||
| 62 | 279827 | Motor, Drive 60 Hz. (Replaces: 3976707) |
|
Immediately | $ 191.95 | ||||
| 63 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.83 | |||||
| 64 | WP3404162 | Clamp, Motor (w/shield) (Replaces: 3404162) |
|
Immediately | $ 7.82 | ||||
| 67 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 |
