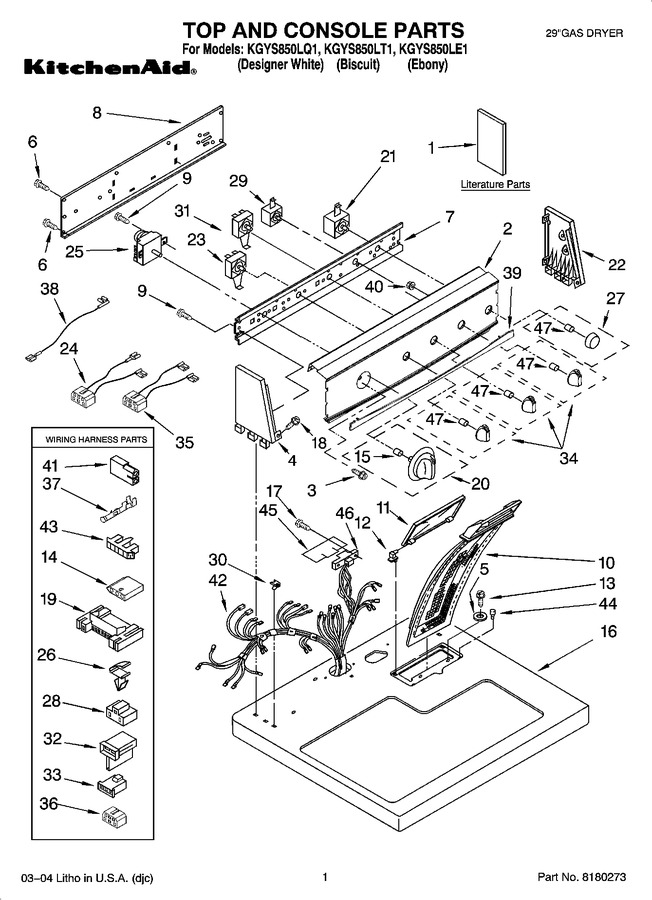

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8318272 Burner Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8535887 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | N/A | Following May Be Purchased Do-it-yourself Repair Manuals |
|
- | |||||
| 1 | LIT8535889 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT8535890 | Literature Parts (sheet, Cycle Feature) |
|
- | |||||
| 1 | LIT3979569 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | 677818 | Manual, Do-it- Yourself Repair (dryer) |
|
- | |||||
| 2 | 3977978 | Panel, Control (includes Illus. 39 & 40) (white) |
|
- | |||||
| 2 | 3977980 | Panel, Control (includes Illus. 39 & 40) (black) |
|
- | |||||
| 2 | 3977979 | Panel, Control (includes Illus. 39 & 40) (biscuit) |
|
- | |||||
| 3 | 3400859 | Screw, Grounding |
|
$ 13.88 | |||||
| 4 | 8274353 | End Cap (l.h.) (white) |
|
- | |||||
| 4 | 3954772 | End Cap (l.h.) (black) |
|
- | |||||
| 4 | 8274355 | End Cap (l.h.) (biscuit) |
|
- | |||||
| 5 | 237446 | Washer |
|
- | |||||
| 6 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 7 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 8 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 135.31 | |||||
| 9 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 8.03 | |||||
| 10 | WP349639 | Screen, Lint (Replaces: 349639) |
|
Immediately | $ 37.21 | ||||
| 11 | 3979324 | Cover, Lint Screen (black) |
|
- | |||||
| 11 | 8283380 | Cover, Lint Screen (biscuit) |
|
- | |||||
| 11 | 8283378 | Cover, Lint Screen (white) |
|
$ 44.80 | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 3978606) |
|
$ 8.11 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 3978605) |
|
$ 8.11 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | 3936144 | Connector (3-circuit) |
|
$ 21.22 | |||||
| 15 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 16 | 8274386 | Top (white) |
|
- | |||||
| 16 | 3978787 | Top (black) |
|
- | |||||
| 16 | 8274387 | Top (biscuit) |
|
- | |||||
| 17 | WP33001882 | Screw, 8-18 X 1/2 (Replaces: 337686) |
|
$ 83.71 | |||||
| 18 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 9.29 | |||||
| 19 | 3395683 | Connector, Housing |
|
Immediately | $ 54.45 | ||||
| 20 | 3956186 | Knob, Timer (biscuit) |
|
- | |||||
| 20 | 3956187 | Knob, Timer (black) |
|
- | |||||
| 20 | 3956185 | Knob, Timer (white) |
|
$ 35.24 | |||||
| 21 | WP3398094 | Switch, Push-to-start (Replaces: 3398094) |
|
Immediately | $ 88.09 | ||||
| 22 | 8274349 | End Cap (r.h.) (white) |
|
- | |||||
| 22 | 8274351 | End Cap (r.h.) (biscuit) |
|
- | |||||
| 22 | 3954771 | End Cap (r.h.) (black) |
|
- | |||||
| 23 | WP3399640 | Switch, Temperature (Replaces: 3399640) |
|
$ 136.25 | |||||
| 24 | 8283276 | Wire, Jumper |
|
- | |||||
| 25 | WP3976570 | Timer, 60 Hz. (Replaces: 3976570) |
|
$ 386.58 | |||||
| 26 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 27 | 8536921 | Knob, Push To Start (white) |
|
$ 7.64 | |||||
| 27 | 8536922 | Knob, Push To Start (biscuit) |
|
- | |||||
| 27 | 8536923 | Knob, Push-to-start (black) |
|
- | |||||
| 28 | 3401144 | Connector, (pts Relay) |
|
$ 12.81 | |||||
| 29 | WP3398093 | Switch, Signal (Replaces: 3398093) |
|
$ 153.67 | |||||
| 30 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.76 | |||||
| 31 | WP3405156 | Switch, Finish Gaurd (Replaces: 3405156) |
|
$ 152.79 | |||||
| 32 | WP3403499 | Connector, 2-position Gas Valve (Replaces: 3403499) |
|
$ 6.02 | |||||
| 33 | WP3403498 | Connector, 3-position (gas Valve) (Replaces: 3403498) |
|
$ 7.30 | |||||
| 34 | 3956182 | Knob, Control (3) (white) |
|
$ 7.41 | |||||
| 34 | 3956184 | Knob, Control (3) (black) |
|
- | |||||
| 34 | 3956183 | Knob, Control (3) (biscuit) |
|
- | |||||
| 35 | 8283279 | Wire, Jumper (temperature) |
|
- | |||||
| 36 | 3347243 | Connector 6-circuit |
|
- | |||||
| 37 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 38 | 3401668 | Wire, Jumper |
|
- | |||||
| 39 | 8536945 | Spacer, Console (biscuit) |
|
- | |||||
| 39 | 8536946 | Spacer, Console (black) |
|
- | |||||
| 39 | 8536944 | Spacer, Console (white) |
|
- | |||||
| 40 | 8533828 | Nut, 3/16 |
|
- | |||||
| 41 | 717252 | Receptacle, 2 Way |
|
- | |||||
| 42 | 8299881 | Harness, Gas |
|
- | |||||
| 43 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 44 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 45 | WPW10476828 | Control, Electronic (Replaces: 3390537) |
|
Immediately | $ 329.93 | ||||
| 46 | 3391885 | Connector, Edge |
|
$ 90.72 | |||||
| 47 | 786032 | Paint, Bulk (1 Qt.) (ebony (uncut)) |
|
- | |||||
| 47 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 47 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 47 | 786020 | Paint, Pressurized Spray (12 Oz.) (black) |
|
- | |||||
| 47 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 47 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 47 | 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | |||||
| 47 | 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | |||||
| 47 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 47 | N/A | Accessory Parts |
|
- | |||||
| 47 | 4392065 | Kit, Dryer Repair (Replaces: 279948) |
|
Immediately | $ 53.85 | ||||
| 47 | W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
$ 12.34 | |||||
| 47 | 346764 | Kit, Hold-down (gas Dryer Mobile Home Installation) |
|
- | |||||
| 47 | 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 27.77 | ||||
| 47 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 |
