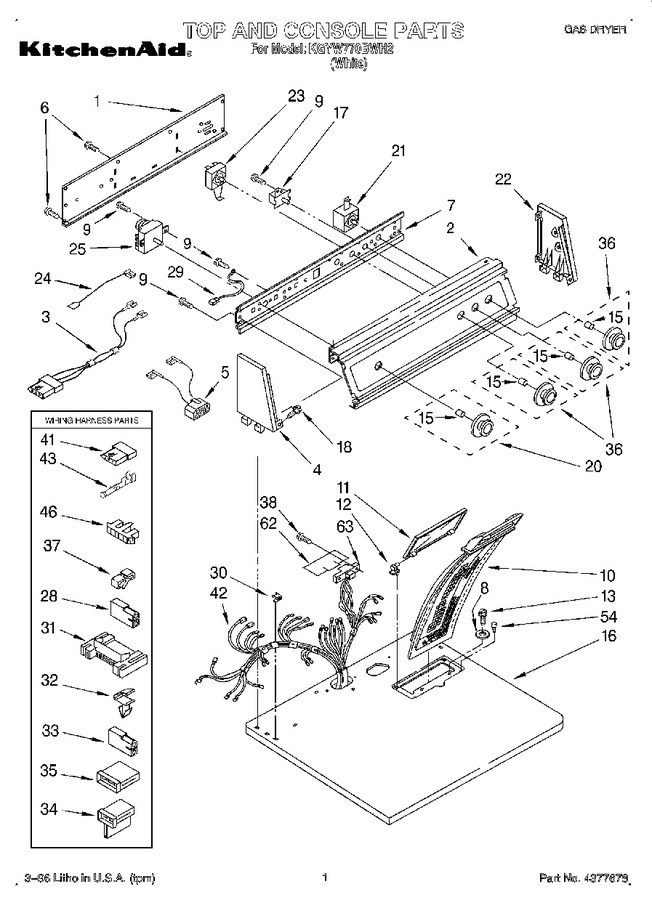

SELECT A DIAGRAM

01 - Top And Console, Lit/optional


02 - Cabinet


03 - Bulkhead


04 - 3401771 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3394170		Panel, Rear Console		Appelez-nous	-
2	3362012		Panel, Control		Appelez-nous	-
3	3401687		Wire, Jumper (light Switch)		Appelez-nous	-
4	3360571		End Cap (l.h.)		Appelez-nous	-
5	3396030		Wire-jumper Assembly		Appelez-nous	-
6	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
7	3396293		Bracket, Control		Appelez-nous	-
8	237446		Washer		Appelez-nous	-
9	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 37.21
11	691200		Cover, Lint Screen (white)		Appelez-nous	-
12	WPW10044480		Hinge, Cover (l.h.)   (Replaces: 691194)				$ 8.11
12	WPW10044470		Hinge, Cover (r.h.)   (Replaces: 691193)				$ 8.11
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
15	WP688805		Clip   (Replaces: 688805)			Immediately	$ 8.20
16	3399162		Top (white)		Appelez-nous	-
17	3394983		Buzzer, Adjustable		Appelez-nous	-
18	WP388326		Screw, Console   (Replaces: 64211)				$ 9.29
20	3396269		Knob, Timer		Appelez-nous	-
21	3398096		Relay, Push To Start				$ 50.70
22	3360568		Cap, End (r.h.)		Appelez-nous	-
23	WP3399640		Switch, Temperature   (Replaces: 3399640)				$ 136.25
24	3401668		Wire, Jumper		Appelez-nous	-
25	3398139		Timer, 60hz.		Appelez-nous	-
28	3401144		Connector, (pts Relay)				$ 12.81
29	690853		Wire, Ground		Appelez-nous	-
30	WP357213		Nut,push-in   (Replaces: 357213)				$ 7.76
31	3395683		Connector (motor)			Immediately	$ 54.45
32	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
33	717252		Connector, 2-way		Appelez-nous	-
34	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
35	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
36	3363041		Knob, Control (3)		Appelez-nous	-
37	689180		Clip		Appelez-nous	-
38	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 8.25
41	3353875		Connector, 3-circuit		Appelez-nous	-
42	3401744		Harness, Gas		Appelez-nous	-
43	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
46	3397269		Connector, Timer				$ 25.55
54	297535		Bumper, Lint Lid		Appelez-nous	-
62	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 329.93
63	3391885		Connector, Edge				$ 90.72
	LIT3387320		Guide, Dryer		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	LIT3392992		Guide, Use & Care		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
	LIT3395306		Instructions, Installation		Appelez-nous	-
	LIT3401732		Label, Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
