SELECT A DIAGRAM

01 - Top And Console, Lit/optional


02 - Cabinet

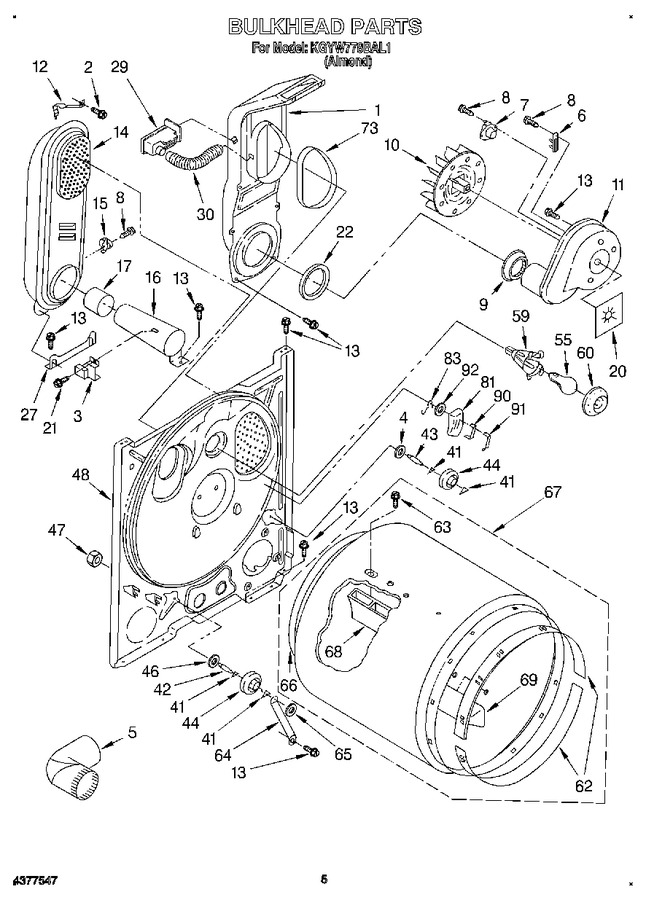

03 - Bulkhead


04 - 3401771 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	686214		Lint Chute Assembly		Appelez-nous	-
2	WP489463		Screw, 8-16 X 3/4   (Replaces: 3400800)				$ 7.82
3	WP338906		Radiant, Sensor   (Replaces: 338906)			Immediately	$ 51.91
4	WP3388703		Washer-support   (Replaces: 3388703)				$ 7.47
5	3404332		4``- 90~ Elbow (exhaust)		Appelez-nous	-
6	WP3392519		Fuse, Thermal   (Replaces: 3392519)			Immediately	$ 24.95
7	WP3387134		Thermostat, Internal Bias   (Replaces: 3387134)			Immediately	$ 35.90
8	WP90767		Screw, 8 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
9	W11233063		Shield, Exhaust   (Replaces: 696302)				$ 22.29
10	WP694089		Wheel, Blower   (Replaces: 694089)			Immediately	$ 37.66
11	695081		Housing, Blower		Appelez-nous	-
12	279771		Clip   (Replaces: 3398161)				$ 14.33
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
14	279900		Box, Heater   (Replaces: 685458)				$ 344.36
15	W11050897		Thermostat, 205~f (96~c)   (Replaces: 3403140)			Immediately	$ 15.30
16	279900		Funnel, Burner   (Replaces: 347389)				$ 344.36
17	279900		Collar, Funnel   (Replaces: 348516)				$ 344.36
20	3392123		Seal, Blower		Appelez-nous	-
21	WP3390631		Screw   (Replaces: 339554)				$ 7.82
22	W11415783		Seal, Lint Chute   (Replaces: 347139)			Immediately	$ 18.23
27	348484		Support, Box		Appelez-nous	-
29	690981		Alert, Lint		Appelez-nous	-
30	686577		Hose, Differential		Appelez-nous	-
41	WPW10512946		Tri Ring (4)   (Replaces: 690997)			Immediately	$ 8.80
42	WPW10359270		Shaft, L.h.   (Replaces: 3399506)			Immediately	$ 72.71
43	WPW10359269		Shaft, R.h.   (Replaces: 3399507)			Immediately	$ 47.30
44	WPW10314173		Roller, Support   (Replaces: 3396802)			Immediately	$ 28.50
46	WP348197		Washer, Support   (Replaces: 348197)				$ 7.19
47	WP3359452		Nut, 3/8-16   (Replaces: 3359452)			Immediately	$ 7.19
48	3396791		Bulkhead		Appelez-nous	-
55	8009		Bulb   (Replaces: 311255)			Immediately	$ 18.67
59	691034		Socket Assembly		Appelez-nous	-
60	341165		Lens, Drum Light		Appelez-nous	-
62	279441		Ring, Bearing   (Replaces: 692526)			Immediately	$ 66.22
63	WPW10109200		Screw, 11-16 X 7/8   (Replaces: 97787)			Immediately	$ 8.00
64	W11684613		Bracket, Shaft   (Replaces: 3394133)				$ 20.94
65	WP90296		Clip   (Replaces: 90296)				$ 7.85
66	279408		Seal, Rear   (Replaces: 347885)				$ 73.58
67	W10899578		Drum Assembly   (Replaces: 695587)				$ 357.65
68	WP692490		Baffle, Drum (long) (2)   (Replaces: 692490)				$ 159.27
69	WP3403636		Baffle, Drum (short) (1)   (Replaces: 3403636)				$ 138.66
73	WP339956		Seal   (Replaces: 339956)			Immediately	$ 8.63
81	279366		Pad, Sensor   (Replaces: 348861)				$ 95.85
83	WP342267		Clip, Sensor (2)   (Replaces: 342267)				$ 7.75
90	WP348859		Electrode, Inside   (Replaces: 348859)				$ 7.98
91	WP348860		Electrode, Outside   (Replaces: 348860)				$ 8.05
92	WP298877		Washer, Insulating   (Replaces: 298877)				$ 22.58

    View Diagram in Separate Window       Print Part List
