01 - Top, Controls And Cabinet Parts


02 - Drum, Rear Bulkhead And Motor Parts

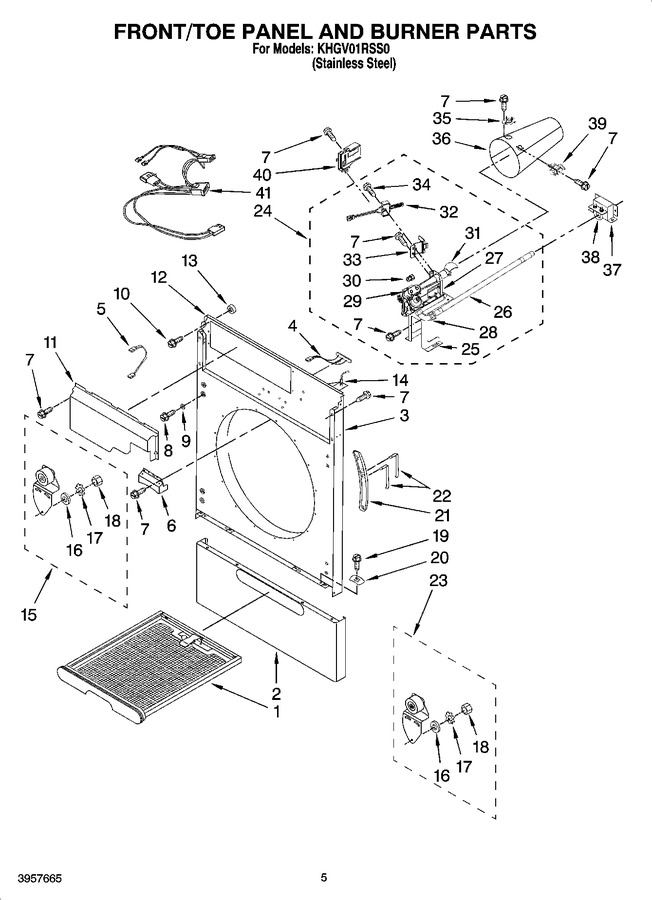

03 - Front/toe Panel And Burner Parts


04 - Door And Blower Assembly Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8182891		Lint Drawer Assembly		Appelez-nous	-
2	8182834		Toe Panel		Appelez-nous	-
3	8182844		Panel, Front		Appelez-nous	-
4	8182836		Light, Led		Appelez-nous	-
5	8182901		Harness, Light		Appelez-nous	-
6	8182861		Enclosure, Light (top)		Appelez-nous	-
7	8182931		Screw		Appelez-nous	-
8	8182966		Screw, Torx		Appelez-nous	-
9	8182908		Magnet, Door Closure		Appelez-nous	-
10	8182803		Screw, Ground		Appelez-nous	-
11	8182838		Cover, Electronic Box		Appelez-nous	-
12	8182835		Tape, Sponge		Appelez-nous	-
13	8182894		Grommet, Large		Appelez-nous	-
14	8182839		Switch, Drum Rotation		Appelez-nous	-
15	8182843		Roller Assembly (left/front)		Appelez-nous	-
16	8182944		Washer, Flat		Appelez-nous	-
17	8182940		Washer, Split/lock		Appelez-nous	-
18	8182932		Nut, Hex		Appelez-nous	-
19	8182954		Screw		Appelez-nous	-
20	8182950		Nut, Retainer (tinnerman)		Appelez-nous	-
21	8182846		Pad, Sensor Strips		Appelez-nous	-
22	8182845		Electrode, Sensor		Appelez-nous	-
23	8182842		Roller Assembly (right/front)		Appelez-nous	-
24	8182943		Burner Assembly (service)		Appelez-nous	-
25	8182925		Bracket, Support		Appelez-nous	-
26	8182924		Pipe, Gas		Appelez-nous	-
27	8182921		Base, Burner		Appelez-nous	-
28	8182917		Elbow Assembly (brass)		Appelez-nous	-
29	279923		Valve, Gas   (Replaces: 8281914)			Immediately	$ 257.43
30	WP15418		Orifice, Burner   (Replaces: 15418)				$ 33.59
31	8182919		Tube, Burner		Appelez-nous	-
32	8182970		Ignitor				$ 41.40
33	8182922		Bracket, Ignitor		Appelez-nous	-
34	WPW10366705		Screw, Mounting (ignitor)   (Replaces: 8182967)				$ 7.09
35	8182971		Thermal Cut-off		Appelez-nous	-
36	8182923		Funnel, Burner		Appelez-nous	-
37	8182920		Bracket, Gas Pipe		Appelez-nous	-
38	8182918		U-bolt (w/nuts)		Appelez-nous	-
39	8182973		Thermostat		Appelez-nous	-
40	8182972		Sensor, Radiant		Appelez-nous	-
41	8182911		Harness, Burner		Appelez-nous	-
