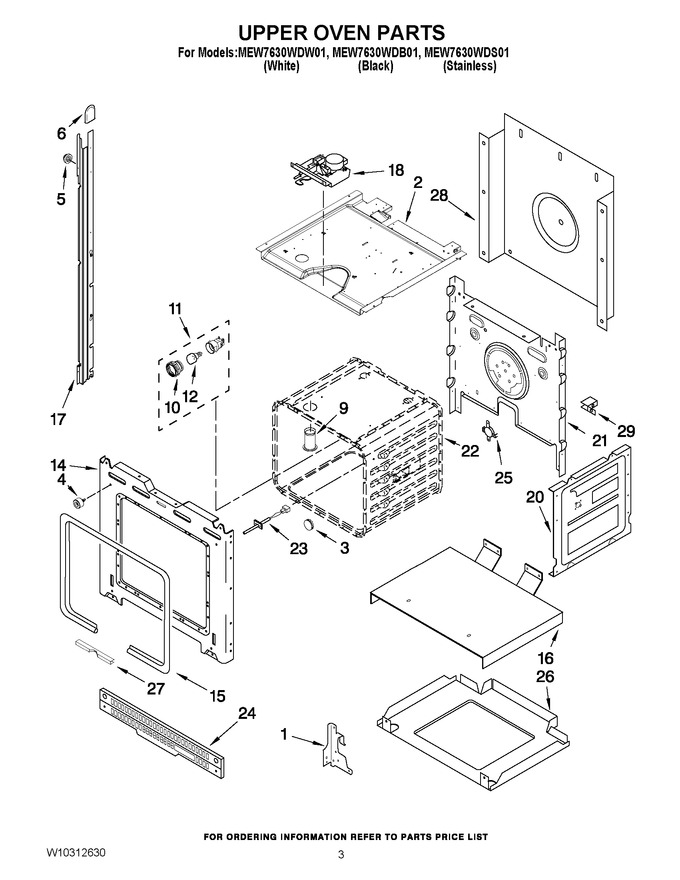

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4455605		Reciever, Hinge (left)   (Replaces: 4455605)			Immediately	$ 127.70
1	WP4455606		Reciever, Hinge (right)   (Replaces: 4455606)			Immediately	$ 131.74
2	8303099		Chassis, Top				$ 70.97
3	4448982		Plug, Button		Appelez-nous	-
4	W10105790		Bumper, Door				$ 7.41
5	WP4448444		Grommet, Mounting Rail   (Replaces: 4448444)				$ 7.85
6	4451605		Cap, Spacer				$ 38.55
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	W10169756		Lens, Light				$ 42.19
11	WPW10307114		Assembly, Oven Light   (Replaces: W10009940)			Immediately	$ 116.01
12	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	WPW10115831		Frame, Front   (Replaces: W10115831)				$ 351.89
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
16	4451478		Support, Insulation				$ 54.10
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
17	814374		Rail, Side (left)   (Replaces: 4450582)				$ 238.23
17	814373		Rail, Side (right)   (Replaces: 4450581)				$ 237.85
18	WPW10195934		Latch, Motorized   (Replaces: W10195934)			Immediately	$ 288.66
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
21	W10161110		Back, Chassis		Appelez-nous	-
21	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
22	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
23	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
23	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
24	4452267		Trim, Center Vent				$ 67.43
25	WP9759242		Thermostat   (Replaces: 9759242)			Immediately	$ 85.57
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	9759713		Base, Chassis				$ 100.19
27	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
27	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
28	WP4451747		Cover, Back   (Replaces: 4451747)				$ 150.07
28	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
29	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
29	4449845		Support, Bracket		Appelez-nous	-
NI	4450365		Insulation, Back				$ 70.95
NI	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
