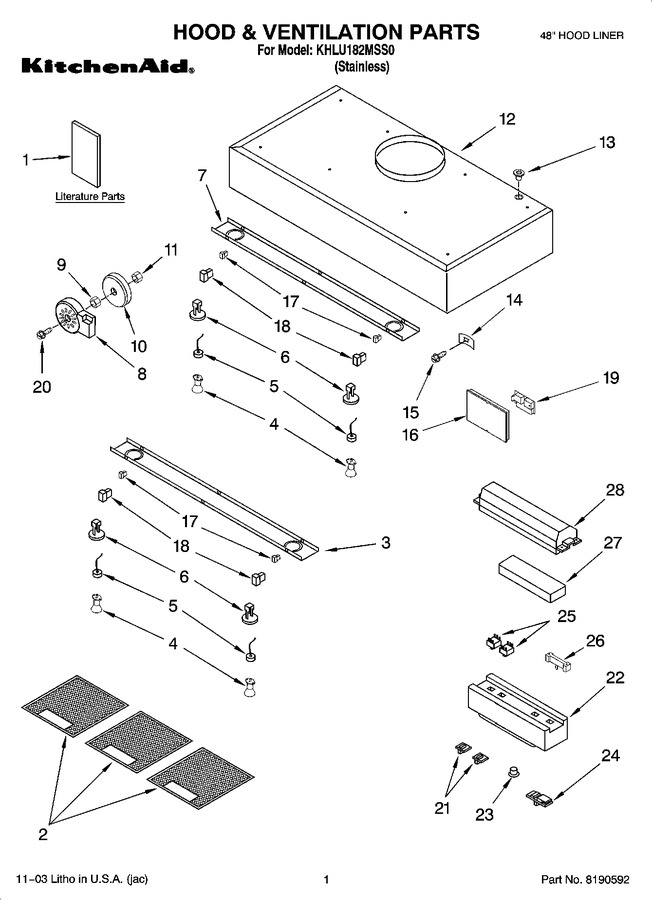

01 - Hood & Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Literature Parts		Appelez-nous	-
2	WPW10281491		Filter, Grease   (Replaces: 8190541)				$ 268.00
3	8190543		Support, Light		Appelez-nous	-
4	WPW10252088		Bulb, Halogen (6)   (Replaces: 8189593)			Immediately	$ 114.94
5	8190542		Holder, Bulb (6)		Appelez-nous	-
6	8189598		Support, Bulb (6)		Appelez-nous	-
7	8190544		Support, Light		Appelez-nous	-
8	8190545		Blower		Appelez-nous	-
9	8190411		Nut				$ 5.88
10	WPW10252120		Transformer   (Replaces: 8189602)				$ 567.91
11	8190414		Nut		Appelez-nous	-
12	8190546		Hoodliner		Appelez-nous	-
13	4360147		Relief, Strain		Appelez-nous	-
14	4360146		Nut				$ 6.02
15	4360006		Screw				$ 6.12
16	4360303		Cover, Dist Box		Appelez-nous	-
17	4360161		Connector, Male				$ 32.63
18	4360162		Connector, Female		Appelez-nous	-
19	4360252		Control, Motor		Appelez-nous	-
20	8190403		Screw		Appelez-nous	-
21	8189618		Button, On/off		Appelez-nous	-
22	8190547		Box, Control		Appelez-nous	-
23	4360028		Lens, Light				$ 6.34
24	8189620		Button, Mtr Speed		Appelez-nous	-
25	W11731942		Switch, On/off   (Replaces: 8189621)				$ 89.95
26	8190548		Switch, Mtr Speed		Appelez-nous	-
27	8189623		Support		Appelez-nous	-
28	8189624		Cover, Switch		Appelez-nous	-
