Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7863004 Pad, Handle Inner (alm) Appelez-nous -
2 D7863104 Pad, Handle Outer (alm) Appelez-nous -
3 D7826603 Handle Appelez-nous -
4 M0215115 Screw Appelez-nous -
5 WP3400094 Screw   (Replaces: M0253942) Special Order $ 9.26

6 C8965901 Bushing, Top Appelez-nous -
7 C8972402 Stop, Door Appelez-nous -
8 R0181181 Kit,dr Closure   (Replaces: D7751402) In-Stock Immediately $ 7.55

9 D7790801 Nut, Door Stop Appelez-nous -
10 D7852010 Trim Appelez-nous -
11 D7853805 Trim Center Ref Dr Appelez-nous -
12 D7792805 Trim Lwr Ref Door Appelez-nous -
13 D7793202 Ref. Trim, Retainer Appelez-nous -
14 D7877601 Trim Appelez-nous -
15 M0213815 Screw Appelez-nous -
16 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 8.43

17 M0219717 Screw Appelez-nous -
18 D7837402 Support, Handle Appelez-nous -
19 D7757803 Top Hinge Assy Appelez-nous -
20 R9800670 Kit, Screw   (Replaces: M0257244) Special Order $ 10.58

21 B8389001 Shim, Top Hinge Appelez-nous -
22 B8387702 Shim, Door Closure Appelez-nous -
22 B8387701 Shim, Door Closure Appelez-nous -
23 WPW10068250 Screw   (Replaces: M0202530) Special Order $ 4.27

24 R0181181 Kit,dr Closure   (Replaces: D7748301) In-Stock Immediately $ 7.55

25 D7757706 Hinge Assy Bottom Appelez-nous -
26 B8386702 Kit,btm Hinge Shim Appelez-nous -
26 B8386703 Kit,btm Hinge Shim Appelez-nous -
26 B8386701 Kit,btm Hinge Shim Appelez-nous -
27 M0246258 Screw Appelez-nous -
28 C8984306 Thinplate K Appelez-nous -
29 D7872101 Cover Hinge Appelez-nous -
30 D7872204 Trim Ref. Dr. Top Appelez-nous -
31 D7872301 Trim Appelez-nous -
32 M0223004 Screw Appelez-nous -
33 R0195037 Tape Kit Appelez-nous -
34 10015401 Retainer Vert. Trim Appelez-nous -
35 R0195037 Tape Kit Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

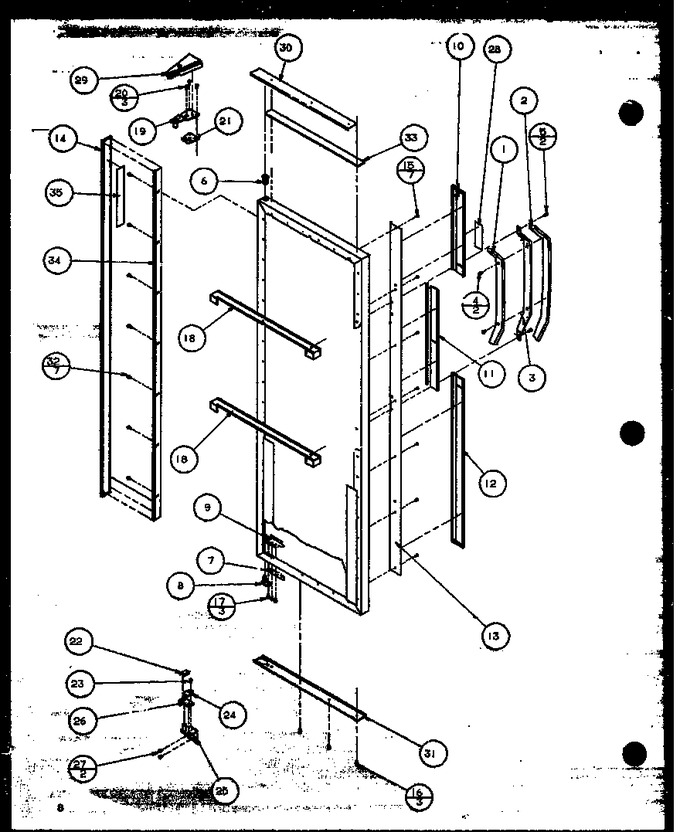

Diagram for 36078 (BOM: P1108706W)
